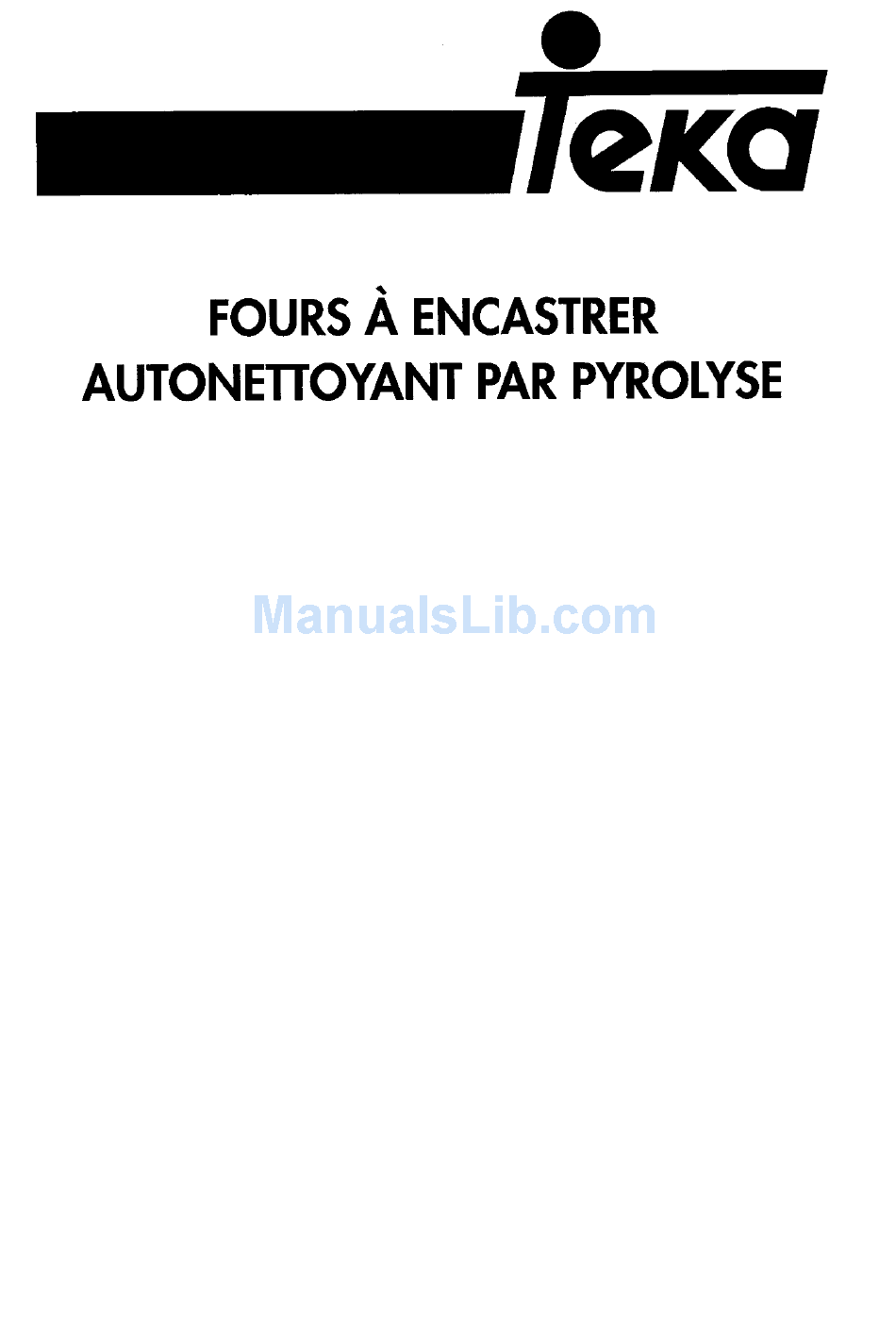

- Page 1 HORNO DE ENCASTRE AUTOLIMPIANTE PIROLÍTICO FORNO DE ENCASTRAR AUTOLIMPIANTE PIROLITICO SELF-CLEANING PYROLITIC BUILT-IN OVEN EINBAUBACKÖFEN MIT SELBSTREINIGERFUNKTION...
- Page 2 In Übereinstimmung mit den Anforderungen der Europäischen Este aparato lleva el marcado CE en conformidad con la Directiva 2002/96/EC del Parlamento Europeo y del Consejo sobre residuos de Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte aparatos eléctricos y electrónicos (RAEE). (WEEE) ist vorliegendes Gerät mit einer Markierung versehen. La correcta eliminación de este producto evita consecuencias Sie leisten einen positiven Beitrag für den Schutz der Umwelt und die negativas para el medioambiente y la salud.
-
Page 3: General Information
In order to produce appliances that are up-to-date with modern technology and/or to ensure continuous improvement in the quality of its products, TEKA reserves the right to make modifications with no advance notice. GENERAL INFORMATION The label with the technical information is found at the base of the hole of the oven. The label is visible when the oven is open. -
Page 4: Electrical Connection
ELECTRICAL CONNECTION Check that the nominal voltage corresponds to that on the characteristics label. Connection to the power mains must be made via an omni-polar switch that corresponds to the installed power. The distance of separation of the contacts must be at least 3 mm and allow disconnection of the appliance in case of emergency or for maintenance and cleaning. -
Page 5: General Instructions
INSTRUCTIONS FOR USE General instructions ATTENTION: the door of the oven may be quite hot during operation. Keep children away from the oven. During cooking, the accessories (grill, drip pan) get hot. The use of protective gloves is advisable. Do not use the appliance to heat the room. When connecting other electrical devices near the oven, check that their power cords do not come into contact with the oven. -
Page 6: Control Panel
CONTROL PANEL Fig. 2 1. Function selector 2. Electronic programmer 3. Thermostat 4. Door locked... - Page 7 OVEN FUNCTIONS OVEN LIGHT With this function the thermostat must be on "0" position. GRILL Select your temperature; use this function to grill foods. Keep the oven door closed. BOTTOM ELEMENT ONLY It is recommended for slow cooking. TRADITIONAL OVEN COOKING traditional cooking, it is recommended to preheat the oven.
-
Page 8: Pyrolitic Cleaning
DEFROST The oven light will stay on during this function. The fan motor comes on, but there is no heat. The oven door should be kept closed. This function will help cut down the defrosting time by about onthird of the normal time. VENTILATED GRILL The fan and the grill element allow a fast and deep cooking for particular food. - Page 9 Oven cooking chart Shelf Position Cooking tim e Cooking Tem p. °C Food (m ins). Function Cake 55-65 Fruit Cake 30-40 Buttermilk curd cake 35-40 Mould leaven cake 25-35 Choux pastry 20-30 Puff or flaky pastry 15-25 Biscuits 15-20 Lasagna 40-50 Meat Fillet beef...
- Page 10 How to use the grill Lay the food in the wire shelf or, in a tray in case of small pieces. The rack must be positioned in the highest runner possible and the grease drip pan in the runner below. Close the door and turn on the element as follows: Cooking time in minutes Dishes for grilling...
-
Page 11: Electronic Programmer
ELECTRONIC PROGRAMMER Key functions: PIRO lets you change the time of pyrolysis (from a minimum of one and a half hours up to a maximum of three hours) Key for selecting the function you want to recall and to decrease the time shown on the display Key to confirm the selection you want to modify... -
Page 12: Alarm Function
OPERATION CONNECTION TO THE ELECTRICAL MAINS When the oven is connected to the electrical mains, all the function symbols light up to confirm that the programmer is operating properly. The oven cannot be turned on in this phase. The programmer will then show the flashing message "TIME", while the keys light up steady. Setting the time To set the time, press the key "... -
Page 13: Cooking Duration Function
Press the key or the key until the symbol on the display lights up. The symbol will start flashing. Press the OK key. The display will show the time remaining until activation of the buzzer. The symbol will flash. The information will continue to be displayed for 4 seconds. Then the display will go back to showing the current time and the symbol will stay on steady. -
Page 14: End Of Cooking Function
END OF COOKING FUNCTION This function lets you keep the oven on until reaching a previously programmed time. Once the end of cooking time is reached, the oven will shut off. The maximum time which can be set for end of cooking is 23 hours and 59 minutes. Programming and modification: Press the key or the key... - Page 15 AUTOMATIC COOKING FUNCTION This function lets you have the oven turned on at a certain time, and leave it on for a previously programmed length of time. The time the oven is on is equal to the programmed end-of-cooking time minus the length of the cooking time. Once the end of cooking time is reached, the oven will shut off.
- Page 16 The symbol will start flashing more rapidly than before and the programmer will display the current time. Press the keys to set the COOKING DURATION time. The maximum time which can be set is 23 hours and 59 minutes. The oven will emit a double beep for confirmation and will start counting two seconds after the last command is given.
-
Page 17: Child Safety Function
CHILD SAFETY FUNCTION After setting a programme, it is possible to de-activate the keypad of the programmer by pressing the "key" button until the symbol comes on. N.B. You can stop cooking at any time by setting the selector to zero. When the oven is off, if you press the "KEY"... - Page 18 Replacing the oven light - Fig. 8 The oven is equipped with a lamp having the following features: screw cap E-14 T 300° C WARNING: disconnect the appliance from the power supply. lf the oven light needs to be replaced, the protective cover «A»...
-
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS Appliance compliant with current standards concerning the elimination of radio- electrical interference. Power supply: 220V 50Hz HP-740I Oven light bulb 0,025 kW Pyrolysis smoke catalyser 0,150 kW Tangential fan 0,025 kW 0,025 kW Upper heating element 0,900 kW... -
Page 20: Installation
INSTALLATION ATTENTION: THIS APPLIANCE MUST BE INSTALLED BY A TECHNICIAN IN COMPLIANCE WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER. BEFORE DOING ANY WORK ON THE APPLIANCE, MAKE SURE IT IS DISCONNECTED FROM THE POWER SUPPLY. Legislative standards, technical regulations and directives Installation of the device must be carried out in compliance with current legal standards and with applicable safety standards Oven installation:... -
Page 21: Guarantee Certificate
TEKA will in no way be held liable for damage to persons or property due to incorrect handling or installation, or operator negligence Only the sales conditions of TEKA in effect at the date of delivery by TEKA govern the relationship between the two parties. - Page 22 210-9760283 210-9712725 Hungary Budapest TEKA HUNGARY KFT. 1 - 354-21-10 1 - 354-21-15 Indonesia Jakarta P . T. TEKA BUANA 21 - 39052 -74 21-39052 -79 Malaysia Kuala Lumpur TEKA KÜCHENTECHNIK (MALAYSIA) SDN. BHD. 3 -762.01.600 3 - 762.01.626 Mexico Mexico D.F.
