Planning Information
Model W302210 I (R) Pro Wall Hood
Model W302210I
Model W302210IR
Rail Option
Wolf Pro low-profile wall hoods are
10" (254) high by 22" (559) deep and
come in the classic stainless steel finish.
Rail option hoods (R) include a classic
stainless steel decorative rail and stand-
offs. Optional platinum or brass rails
match dual fuel range bezels. This Wolf
Pro low-profile wall hood has a 600 CFM
internal blower.
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
Hand finished
craftsmanship
Backdraft damper
Stainless steel
baffle filters
Welded seams
and hemmed edges
Halogen lighting

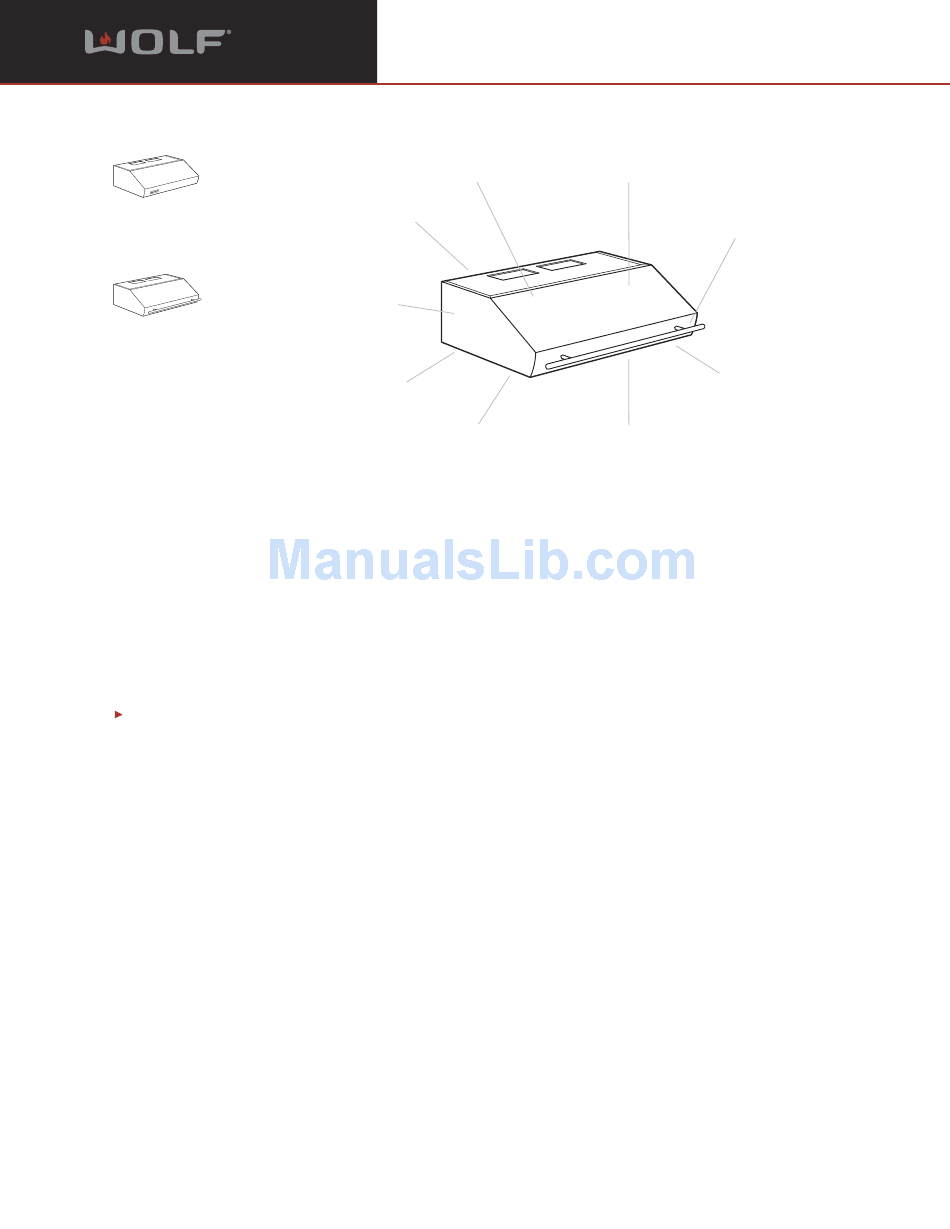

Model W302210IR shown with standard classic stainless steel
decorative rail, platinum or brass rail available as a sales accessory
W
olf Pro wall hoods provide the ultimate in ventila-
tion. With standard elements like heat sentry and dual
setting halogen lighting, Wolf elevates the need for
ventilation to an enjoyable perk.
This 22" (559) deep model is the low-profile version,
30" (762) wide and available in the classic stainless
steel finish. You also have the option of a decorative
rail. While a classic stainless steel rail is standard on
the (R) model, a platinum or brass rail is available as a
sales accessory.
For optimal performance, a Pro 27" (686) deep wall
hood is recommended for use with ranges and range-
tops that contain a charbroiler or griddle.
Classic stainless
steel finish
Decorative rail
(optional)
Recessed easy
access controls
Infinite speed
blower control
1
