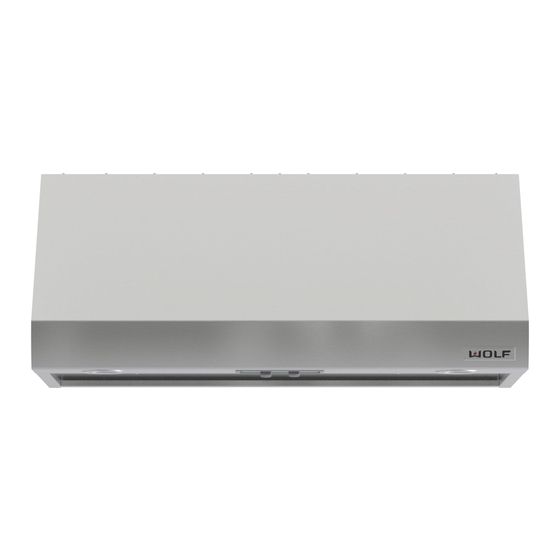

Wolf W302210I Installation Instructions Manual

Pro wall ventilation hoods low-profile wall hoods 24" (610) deep wall hoods 27" (686) deep wall hoods

Hide thumbs Also See for W302210I:

Planning information (8 pages)

Installation instructions manual (24 pages)

page of 24

/ 24
Bookmarks

Quick Links

Download this manual

R O

A L L

E N T I L A T I O N

O O D S

NSTALLATION

NSTRUCTIONS

Need help?

Do you have a question about the W302210I and is the answer not in the manual?

Questions and answers

Summary of Contents for Wolf W302210I

Page 1 A L L E N T I L A T I O N O O D S NSTALLATION NSTRUCTIONS...
Page 2 800-332-9513 Website: wolfappliance.com ® WOLF is a registered trademark of Wolf Appliance Company, Inc. As you follow these instructions, you will notice WARNING and CAUTION symbols. This blocked information is important for the safe and efficient installation of Wolf equip- ment.
Page 3 I N S TA L L AT I O N R E Q U I R E M E N T S IMPORTANT NOTE: This installation must be completed by a qualified installer or Wolf authorized service center technician. Installer: Please read the entire Installation Instructions prior to installation.
Page 4 Wolf internal, in-line and remote blower assemblies are available, refer to page 20. Use only a Wolf blower with the Pro wall ventilation hood. H O O D S C O N S I D E R A T I O N S...
Page 5 I N S TA L L AT I O N I N S T R U C T I O N S OV E R A L L D I M E N S I O N S L O W - P R O F I L E W A L L H O O D S Overall Widths 30"...
Page 6 W O L F P R O WA L L V E N T I L AT I O N I N S TA L L AT I O N Low-Profile and 24" (610) Deep Wall Hoods 30" 36" (762–914) TO COUNTERTOP NOTE: Low-profile and 24"...
Page 7 TO CENTER OF TRANSITION TO CENTER OF TRANSITION WIDTH OF HOOD Dimensions in parentheses are in millimeters unless otherwise specified. Low-Profile Wall Hoods Model W302210I 30" (762) " (191) W362210I 36" (914) " (191) W362210 36" (914) " (191) W422210 42"...
Page 8 COUNTERTOP HEIGHT *HORIZONTAL DISCHARGE APPLICABLE ON LOW-PROFILE WALL HOODS (EXCLUDING W302210I AND W362210I) USING A REMOTE BLOWER. LOW-PROFILE WALL HOODS WITH AN INTERNAL OR IN-LINE BLOWER MUST USE VERTICAL DISCHARGE. Ducting options for low-profile wall hoods H O O D S...
Page 9 IMPORTANT NOTE: Do not use ducting smaller than 8" (203). Wolf Pro wall hoods come standard with a backdraft damper included in the transition assembly. Local codes may require the use of an additional backdraft damper. Contact your local HVAC professional for specific require- ments.
Page 10 Refer to the illustrations below for the location of mounting holes for the low-profile and 24" (610) deep wall hoods. IMPORTANT NOTE: Wolf recommends installing the internal blower to the rough-in plate prior to mounting the hood. If you are installing WBLOWER-60INT,...
Page 11 Horizontal discharge is only applicable on low-profile wall hoods (excluding W302210I and W362210I) used with a remote blower. Horizontal discharge is applicable on 24" (610) deep wall hoods used with WBLOWER- 60INT, WBLOWER-120INT or any Wolf remote blower.
Page 12 17–19 for internal, in-line and remote blowers. Follow instructions to install the filters and grease cups on page 21. If you will be attach- ing the Wolf logo nameplate, follow the steps on page 22. Soffit Rough-In Plate Mounting Holes...
Page 13 30" (762) to 36" (914) above the countertop. IMPORTANT NOTE: Consult a qualified HVAC Engineer for specific ducting applications. IMPORTANT NOTE: All Wolf Pro 27" (686) deep wall hoods must exhaust to the outdoors. Always use metal ducting. Do not use flex ducting.
Page 14 Optional acces- sories are available Construct the wood wall framing flush with through your Wolf dealer. To the wall studs and centered in the location obtain local dealer that the hood will be mounted. Use the information, visit...
Page 15 I N S TA L L AT I O N I N S T R U C T I O N S 2 7 " ( 6 8 6 ) D E E P W A L L H O O D S If you are installing WBLOWER-90INT or WBLOWER-120INT, refer to the internal blower information on page 17 and follow...
Page 16 W O L F P R O WA L L V E N T I L AT I O N P R O WA L L S T E P 6 : I N S T A L L W I R I N G This ventilation hood must be properly grounded.
Page 17 IMPORTANT NOTE: Use wire connectors or wire nuts approved by UL or C/UL. IMPORTANT NOTE: Wolf recommends installing the internal blower to the rough-in plate assembly prior to installing the hood to the wall framing.
Page 18 A C C E S S O R I E S Locate the blower so that the length of the duct run and number of elbows and transitions are kept to a minimum. Wolf recommends the Optional acces- maximum linear duct run be no greater than sories are available 50' (15 m).
Page 19 I N S TA L L AT I O N I N S T R U C T I O N S I N - L I N E A N D R E M OT E B L O W E R S B L O W E R W I R I N G IMPORTANT NOTE: Refer to the specific installation instructions provided with each...
Page 20 R E C I R C U L A T I N G K I T S RECIRC30 (808223) – Must be used with WBLOWER-60INT (807614). Blower included with wall hood Model W302210I. Kit can be installed on Models W302210I and W302418.
Page 21 13. Duct covers 6" (152) and 12" (305) high in widths to match all wall hoods are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.
Page 22 Neither this book nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Wolf Appliance Company, Inc., an affiliate of Sub-Zero Freezer Company, Inc. ©Wolf Appliance Company, Inc. all rights reserved.
Page 23 LEFT OUTER EDGE OF HOOD...
Page 24 W O L F A P P L I A N C E C O M PA N Y, I N C. P. O. B OX 4 4 8 4 8 M A D I S O N , W I 5 3 7 4 4 8 0 0 - 3 3 2 - 9 5 1 3 W O L FA P P L I A N C E .
