30"

Pro Wall Hood

(762)

Model W302718(R)

Model W302718

Model W302718R

Rail Option

Wolf Pro 27" (686) deep wall hoods

are available in the classic stainless steel

finish. Rail option hoods (R) come with a

classic stainless steel decorative rail and

stand-offs. Optional platinum or brass

rails match dual fuel range bezels. Pro

wall hoods are sold as a shell only,

internal and remote blower options are

available.

Dimensions in parentheses are in

millimeters unless otherwise specified.

3/06

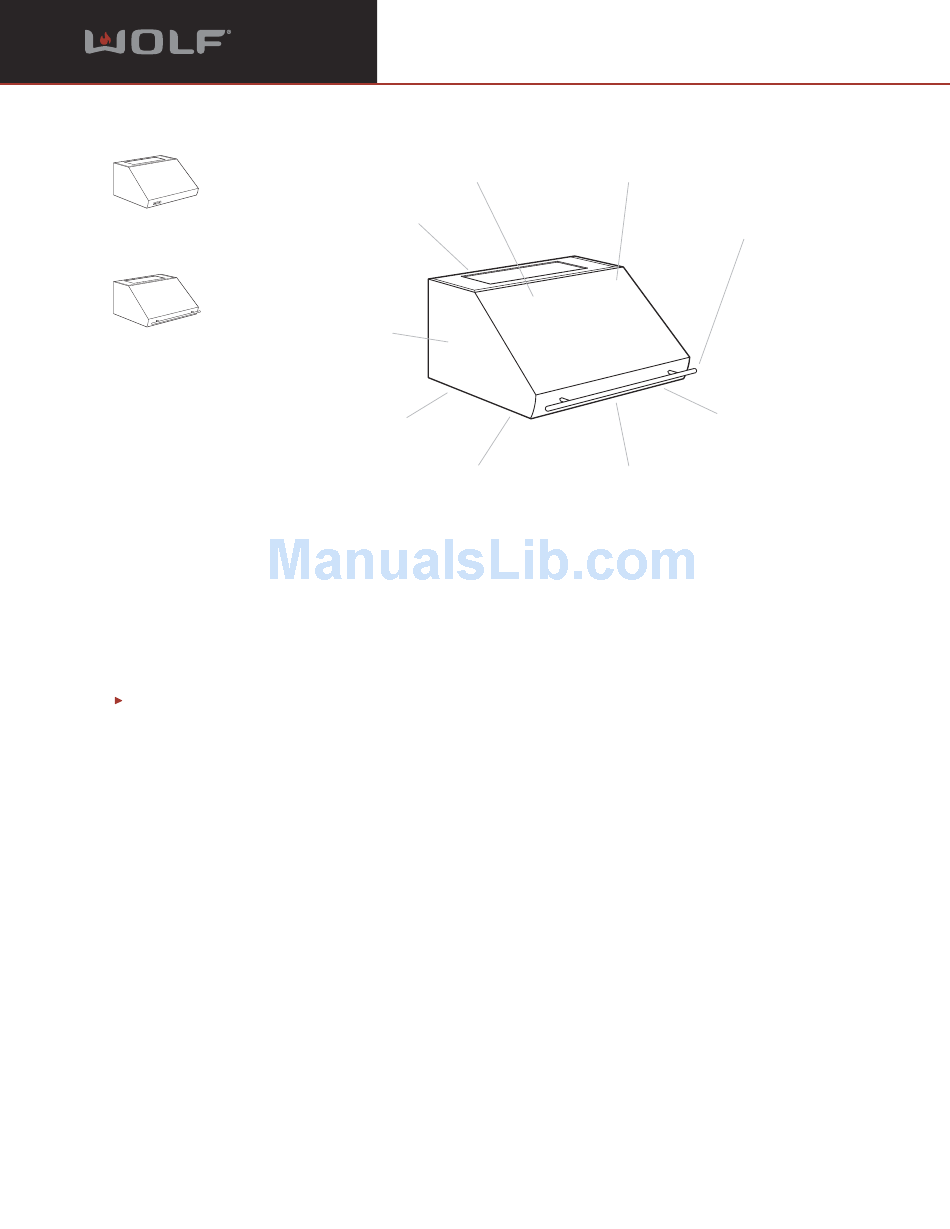

Hand finished

craftsmanship

Backdraft damper

Stainless steel

baffle filters

Welded seams

and hemmed edges

Halogen lighting

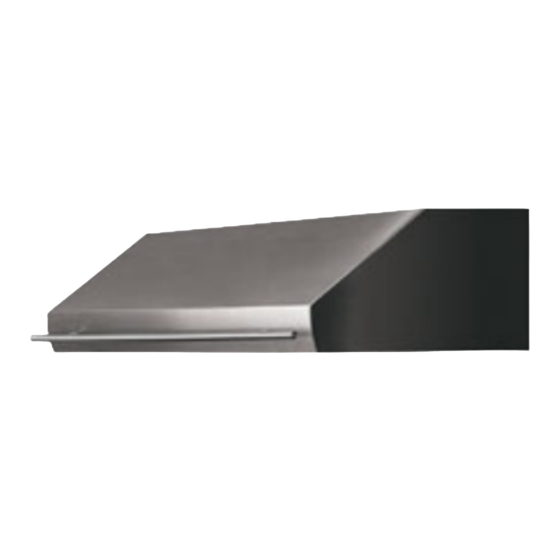

Model W302718R shown with standard classic stainless steel

decorative rail, platinum or brass rail available as a sales accessory

olf Pro wall hoods provide the ultimate in

ventilation. With standard elements like heat sentry

and dual setting halogen lighting, Wolf elevates the

need for ventilation to an enjoyable perk.

With the Pro 27" (686) deep wall hood you have the

option of a decorative rail. While a classic stainless

steel rail is standard on the (R) model, platinum or

brass rails are also available to match the bezels of our

Dual Fuel Ranges.

The deepest of the Wolf Pro wall hoods, this 27" (686)

deep model provides an additional exclusive feature—

heat lamps. Hosting your dream dinner party and the

warming drawer is already filled? Not a problem.

Turn on your heat lamps and relax.

Pro wall ventilation hoods are recommended for use

with all Wolf cooking appliances.

Classic stainless

steel finish

Decorative rail

(optional)

Recessed easy

access controls

Infinite speed

blower control

Need help?

Do you have a question about the W302718 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wolf W302718

Page 1 Dual Fuel Ranges. The deepest of the Wolf Pro wall hoods, this 27" (686) deep model provides an additional exclusive feature— heat lamps. Hosting your dream dinner party and the warming drawer is already filled? Not a problem.
Page 2 Planning Information 30" Pro Wall Hood (762) Model W302718(R) F E A T U R E S 27" (686) deep wall ventilation hood with Heat sentry feature automatically turns unit classic stainless steel finish on when heat is sensed and automatically...
Page 3 S P E C I F I C A T I O N S Overall Width of Hood 30" (762) Overall Height of Hood 18" (457) Model W302718 Overall Depth of Hood – W302718 27" (686) W302718R (including rail) 29" (737) Internal Blower Options 600 CFM, 900 CFM...
Page 4 Planning Information 30" Pro Wall Hood (762) Model W302718(R) I N S T A L L A T I O N S P E C I F I C A T I O N S 6" (152) 5" (127) 18"...
Page 5 Dual Fuel Ranges. The deepest of the Wolf Pro wall hoods, this 27" (686) deep model provides an additional exclusive feature— heat lamps. Hosting your dream dinner party and the warming drawer is already filled? Not a problem.
Page 6 Planning Information 36" Pro Wall Hood (914) Model W362718(R) F E A T U R E S 27" (686) deep wall ventilation hood with Heat sentry feature automatically turns unit classic stainless steel finish on when heat is sensed and automatically adjusts blower speed Rail option hoods (R) come with a classic stainless steel decorative rail and stand-offs –...
Page 7 38" (965) high stainless steel backsplash 6" (152) and 12" (305) duct covers Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com. Dimensions in parentheses are in millimeters unless otherwise specified.
Page 8 Planning Information 36" Pro Wall Hood (914) Model W362718(R) I N S T A L L A T I O N S P E C I F I C A T I O N S 6" (152) 5" (127) 18" (457) HEIGHT OF HOOD...
Page 9 Dual Fuel Ranges. The deepest of the Wolf Pro wall hoods, this 27" (686) deep model provides an additional exclusive feature— heat lamps. Hosting your dream dinner party and the warming drawer is already filled? Not a problem.
Page 10 Planning Information 42" Pro Wall Hood (1067) Model W422718(R) F E A T U R E S 27" (686) deep wall ventilation hood with Heat sentry feature automatically turns unit classic stainless steel finish on when heat is sensed and automatically adjusts blower speed Rail option hoods (R) come with a classic stainless steel decorative rail and stand-offs –...
Page 11 38" (965) high stainless steel backsplash 6" (152) and 12" (305) duct covers Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com. Dimensions in parentheses are in millimeters unless otherwise specified.
Page 12 Planning Information 42" Pro Wall Hood (1067) Model W422718(R) I N S T A L L A T I O N S P E C I F I C A T I O N S 6" (152) 5" (127) 18" (457) HEIGHT OF HOOD...
Page 13 Dual Fuel Ranges. The deepest of the Wolf Pro wall hoods, this 27" (686) deep model provides an additional exclusive feature— heat lamps. Hosting your dream dinner party and the warming drawer is already filled? Not a problem.
Page 14 Planning Information 48" Pro Wall Hood (1219) Model W482718(R) F E A T U R E S 27" (686) deep wall ventilation hood with Heat sentry feature automatically turns unit classic stainless steel finish on when heat is sensed and automatically adjusts blower speed Rail option hoods (R) come with a classic stainless steel decorative rail and stand-offs –...
Page 15 38" (965) high stainless steel backsplash 6" (152) and 12" (305) duct covers Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com. Dimensions in parentheses are in millimeters unless otherwise specified.
Page 16 Planning Information 48" Pro Wall Hood (1219) Model W482718(R) I N S T A L L A T I O N S P E C I F I C A T I O N S 6" (152) 5" (127) 18" (457) HEIGHT OF HOOD...
Page 17 Dual Fuel Ranges. The deepest of the Wolf Pro wall hoods, this 27" (686) deep model provides an additional exclusive feature— heat lamps. Hosting your dream dinner party and the warming drawer is already filled? Not a problem.
Page 18 Planning Information 54" Pro Wall Hood (1372) Model W542718(R) F E A T U R E S 27" (686) deep wall ventilation hood with Heat sentry feature automatically turns unit classic stainless steel finish on when heat is sensed and automatically adjusts blower speed Rail option hoods (R) come with a classic stainless steel decorative rail and stand-offs –...
Page 19 38" (965) high stainless steel backsplash 6" (152) and 12" (305) duct covers Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com. Dimensions in parentheses are in millimeters unless otherwise specified.
Page 20 Planning Information 54" Pro Wall Hood (1372) Model W542718(R) I N S T A L L A T I O N S P E C I F I C A T I O N S 6" (152) 5" (127) 18" (457) HEIGHT OF HOOD...
Page 21 Dual Fuel Ranges. The deepest of the Wolf Pro wall hoods, this 27" (686) deep model provides an additional exclusive feature— heat lamps. Hosting your dream dinner party and the warming drawer is already filled? Not a problem.
Page 22 Planning Information 60" Pro Wall Hood (1524) Model W602718(R) F E A T U R E S 27" (686) deep wall ventilation hood with Heat sentry feature automatically turns unit classic stainless steel finish on when heat is sensed and automatically adjusts blower speed Rail option hoods (R) come with a classic stainless steel decorative rail and stand-offs –...
Page 23 38" (965) high stainless steel backsplash 6" (152) and 12" (305) duct covers Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com. Dimensions in parentheses are in millimeters unless otherwise specified.
Page 24 Planning Information 60" Pro Wall Hood (1524) Model W602718(R) I N S T A L L A T I O N S P E C I F I C A T I O N S 6" (152) 5" (127) 18" (457) HEIGHT OF HOOD...
Page 25 Dual Fuel Ranges. The deepest of the Wolf Pro wall hoods, this 27" (686) deep model provides an additional exclusive feature— heat lamps. Hosting your dream dinner party and the warming drawer is already filled? Not a problem.
Page 26 Planning Information 66" Pro Wall Hood (1676) Model W662718(R) F E A T U R E S 27" (686) deep wall ventilation hood with Heat sentry feature automatically turns unit classic stainless steel finish on when heat is sensed and automatically adjusts blower speed Rail option hoods (R) come with a classic stainless steel decorative rail and stand-offs –...
Page 27 38" (965) high stainless steel backsplash 6" (152) and 12" (305) duct covers Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com. Dimensions in parentheses are in millimeters unless otherwise specified.
Page 28 Planning Information 66" Pro Wall Hood (1676) Model W662718(R) I N S T A L L A T I O N S P E C I F I C A T I O N S 6" (152) 5" (127) 18" (457) HEIGHT OF HOOD...
Page 29 Installation illustration. Refer to the installation instructions shipped with each Wolf product for detailed specifica- Wolf Pro wall hoods are shipped without a tions. This information can also be found on blower assembly. Internal or remote blower our website, wolfappliance.com.
Page 30 (1676) D U C T I N G C O N S I D E R A T I O N S Wolf Pro wall ventilation hoods are shipped Pro 27" (686) deep wall hoods have a vertical without the blower assembly. Internal or remote discharge location as shown in the illustration blower assemblies are available.
Page 31 Model numbers for dual fuel ranges, gas ranges and rangetops indicate width and number of surface burners. Features such as a charbroiler, griddle and/or French Top will vary. CFM recommendations are based on total Btu/hr output. Wolf recommends 1 CFM per 100 Btu/hr (.03 kW). Additional CFM may be required for long duct runs.
Page 32 W482718 / W542718 / W602718 / W662718 600 CFM Remote BLOWER-60REM (801640) W302718 900 CFM Remote BLOWER-90REM (801641) W302718 / W362718 / W422718 / W482718 / W542718 1200 CFM Remote BLOWER-120REM (801642) All 27" (686) Deep Wall Hoods 1500 CFM Remote BLOWER-150REM (804701) All 27"...
