INSTRUCTION MANUAL

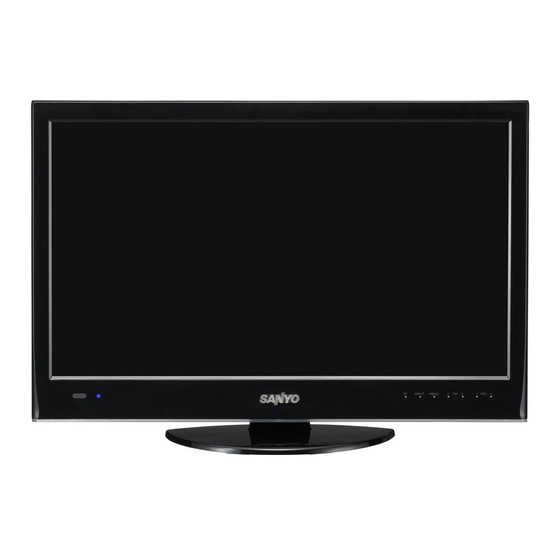

LED-LCD TV
Before connecting, operating or adjusting this product, please read the manual completely.
Please keep this manual for future reference.
LED-22XR10F

Advertisement

   Also See for SANYO LED-22XR10F

   Summary of Contents for SANYO LED-22XR10F

  • Page 1

    LED-22XR10F INSTRUCTION MANUAL LED-LCD TV Before connecting, operating or adjusting this product, please read the manual completely. Please keep this manual for future reference.

  • Page 2: Table Of Contents

    Contents Important Information Important Safety Precautions Important Notice Identification of Controls Setting Up Connections First Time Configuration / Basic Operations Memorizing the Channels Programme Edit Adjusting the Picture Adjusting the Sound Adjusting Basic Settings Setting Clock & Timer Setting Child and Rating Locks Making Use of Time Shift Function Teletext &...

  • Page 3: Important Information

    IMPORTANT INFORMATION If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: ! Using cabinets or stands recommended by the manufacturer of the television. ! Only using furniture that can safely support the television.

  • Page 4: Important Safety Precautions

    Important Safety Precautions Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product.

  • Page 5

    Important Safety Precautions (Continued) 15. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base SOURCE MENU can cause the product to fall, resulting in serious personal injuries as well as damage to the product.

  • Page 6: Important Notice

    Important Notice About Temperature Do not use in hot and cold rooms (locations) When the unit is used in rooms (locations) with low temperature, the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

  • Page 7: Identification Of Controls

    Identification of Controls Main Unit (front/side view) 1. Remote sensor Receives signals from the remote control. Do not block. 2. Power indicator Lights blue when in operating mode. Lights red when in standby mode. SOURCE MENU 3. POWER Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.

  • Page 8: Remote Control Unit

    Identification of Controls (Continued) Remote control unit 1. POWER: Switches the TV power on or Standby. 2. S.MODE: Selects sound mode. 3. P .MODE: Selects picture mode. 4. FAV.LIST: Displays the favorite channel list. 5. FAV+/ FAV–: Selects the favorite channel. 6.

  • Page 9: Setting Up

    Setting Up You should select a location for the TV: Selecting a location Where direct light does not reflect on the screen. · That has indirect and soft lighting. · Where the TV has access to an antenna or cable TV connection. ·...

  • Page 10: Connections

    Connections Cautions Before Connecting When connecting an external device to the TV, make sure that the TV and the device are turned off. Check the plugs on the ends of cables to make sure that they are the correct type before you try plugging them into jacks on the TV.

  • Page 11

    Connections (Continued) Connecting a USB device Insert your USB device into the USB port. TV Side To play from the USB device: 1. Turn on your TV, then press SOURCE button. The Input Source menu opens. To USB port 2. Press 5 to select USB, then press OK to confirm.

  • Page 12

    Connections (Continued) How to connect an HDMI device: Connecting an HDMI device Connect the HDMI cable between the HDMI jack on the TV (HDMI1 located at TV rear, while HDMI2 at TV side) and HDMI output jack on the device. HDMI OUT Note: If your device has an HDMI connection, we recommend you use that to get the best quality possible.

  • Page 13

    Connections (Continued) Connecting an AV device for playback To connect an AV device (such as VCR, camcorder, or game console) : TV Side Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the TV and AV device. Camcorder AV cable To play the AV device: 1.

  • Page 14: First Time Configuration/basic Operations

    First Time Configuration/Basic Operations Turning on your TV for the first time The first time you use the TV, you need to configure your TV: To configure your TV: Energy Save Mode Make sure that you have inserted the batteries in the To use this TV for displaying in a store, please select [Store/Dynamic].

  • Page 15

    Basic Operations (Continued) Selecting the input source Input Source To select the input source: Press SOURCE button. The Input Source list appears. Press 6 or 5 to select the input source, then press OK or 4 to confirm your choice. Component The TV switches to the selected source.

  • Page 16: Basic Operations

    Basic Operations (Continued) Adjusting the volume To adjust the volume: Press the VOL+/ – to increase or decrease the volume. Press the MUTE button to temporarily turn off the sound. To restore the sound, press the MUTE button again. Press the INFO button to display the information banner. Displaying the Information Banner The information banner displays current status information such as the channel number and signal source.

  • Page 17: Picture Menu

    Basic Operations (Continued) On-screen menu overview PICTURE menu SOUND menu PICTURE SOUND TIME OPTION LOCK CHANNEL PICTURE SOUND TIME OPTION LOCK CHANNEL Sound Mode User Picture Mode User Treble Contrast Bass Brightness Balance Colour Auto Volume Sharpness Surround Sound Tint SELECT MOVE RETURN...

  • Page 18: Memorizing The Channels

    Memorizing the Channels Note: If the Lock System is On, Auto Tuning/DTV manual tuning/ATV manual tuning can not be operated without password. For details, please see <Setting Child and Rating Locks> section. Auto Tuning will completely re-tune the TV and can be used to Auto Tuning update the channel list.

  • Page 19: Programme Edit

    Memorizing the Channels & Programme Edit Use the Manual Tuning operation if desired channels can not be preset ATV manual tuning - analogue only - by Auto Tuning or if you would like to preset channels to specific position numbers one by one. In CHANNEL menu, press 6 to select ATV Manual Tuning, then press4...

  • Page 20: Programme Edit

    Programme Edit (Continued) You can create a favourite channel list so you can quickly browse Setting up a favourite channel list through your favourite channels by pressing FAV.LIST, then selecting a channel from the favourite channel list. Navigate to the CHANNEL menu, press 5 to select PICTURE SOUND...

  • Page 21: Skipping Channels

    Programme Edit (Continued) You can skip unnecessary channels so that only the channels you want Skipping channels to watch can be selected by CH / CH . You can still tune to the skipped channel by using the number buttons. Navigate to the CHANNEL menu, press 5 to select PICTURE...

  • Page 22: Adjusting The Picture

    Adjusting the Picture To adjust the picture: Adjusting the picture Press MENU. The on-screen menu opens with the PICTURE menu displayed, then press 6 to access. Press 6 to highlight an option, press 3 to adjust the option; PICTURE SOUND TIME OPTION LOCK...

  • Page 23: Adjusting The Sound

    Adjusting the Sound To adjust the sound: Adjusting the sound Press MENU. The on-screen menu opens. Press 3 or 4 to select SOUND menu, press 6 to access. PICTURE SOUND TIME OPTION LOCK CHANNEL Press 6 or 5 to highlight an option, press 3 or 4 to adjust the Sound Mode...

  • Page 24: Adjusting Basic Settings

    Adjusting Basic Settings Adjusting basic settings To adjust basic settings: Press MENU. The on-screen menu opens. PICTURE SOUND TIME OPTION LOCK CHANNEL Press 3 to display OPTION menu, press 6 to access. OSD Language English Hearing Impaired S/PDIF Output AUTO Press 6 or 5 to select an option, press 3...

  • Page 25: Setting Clock & Timer

    Setting Clock & Timer To set TV clock Setting TV clock – For DTV programs, the clock displays the current time using time data received from your TV service provider. This information is based on a digital channel and does not need to be set manually, but you need to select your time zone PICTURE SOUND...

  • Page 26: Setting Sleep Timer

    Setting Clock & Timer (continued) To set Sleep timer Setting Sleep timer Sleep timer lets you select the amount of time before your TV turns itself off automatically. This setting is cleared when the TV is turned off. PICTURE SOUND TIME OPTION LOCK...

  • Page 27: Setting Child And Rating Locks

    Setting Child and Rating Locks You can prevent your children from watching TV by locking the TV and using age ratings. To enable child lock and rating feature, you must set Lock System to On through LOCK menu. Also you can set Lock System to On to lock auto tuning/manual tuning to protect some TV settings from being accidentally changed.

  • Page 28

    Setting Child and Rating Locks (continued) Setting parental ratings To set and enable parental ratings - digital only - Some digital broadcasters rate their programmes according to age. You can set your TV to display only programmes with age ratings higher than your child’s age. Before setting PICTURE SOUND TIME...

  • Page 29: Making Use Of Time Shift Function

    Making Use of Time Shift Function Checking File System before Time Shift Time Shift function is the recording of DTV programme to an external memory device (portable hard disk or USB device) to be viewed at a later time more convenient to the user. But before operation you must pay attention to the following notes: Before Time Shift, you need to check the File System successfully.

  • Page 30: Teletext & Subtitle

    Teletext & Subtitle What Is Teletext? Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available. To Turn On/Off Teletext Select a TV channel providing the Teletext program.

  • Page 31: Adjusting The Computer Image & Setting Hotel Mode

    Adjusting the Computer Image & Setting Hotel Mode Before adjusting the screen, make sure that you select the Adjusting the PC image correct source (D-SUB). To adjust the computer image: PICTURE SOUND TIME OPTION LOCK CHANNEL Press MENU. The on-screen menu opens with PICTURE menu displayed.

  • Page 32: Using Music Player /using Usb Multi Media Player

    Using MUSIC Player & Using USB Multi Media Player Using MUSIC player You can connect your MP3 player to MUSIC jack on the TV rear to listen to music from your TV. Be sure to switch to MUSIC source firstly by pressing SOURCE button. During music playing and you want to save power, please go to OPTION menu and set Audio Only to Power Saving, then a message “Audio Only, it will go to power saving mode”...

  • Page 33: Playing Music

    Using USB Multi Media Player (continued) Playing music Generally, audio player supports MP3, WMA and USB 2.0 AAC formats, but for the sake of technical updating, some formats above may not be supported. PHOTO MUSIC MOVIE TEXT MUSIC To listen to music: Page 1 / 1 Connect USB device and switch to USB mode, MSTPVR...

  • Page 34

    Using USB Multi Media Player (continued) During movie play, you can press: Playing movie (continued) : Play /pause. USB 2.0 : Stop playing. : Fast forward. : Fast reverse. PHOTO MUSIC MOVIE TEXT Subtitle: Shows subtitle if available. Page 1 / 1 MOVIE STEREO: Selects audio track if available.

  • Page 35: Troubleshooting

    Troubleshooting If, after reading these operating instructions, you have additional questions related to the use of your television, please call the services center in your local area. Before calling service, please check the symptoms and follow suggested solutions. Remote Control Problem Possible Solutions The batteries could be weak.

  • Page 36: Specifications

    Specifications Type: Integrated Digital TV Panel: 22” TFT LCD (with LED backlight) Analogue TV system: PAL-B/G (CCIR), NTSC(AV) Compliant Standard: DVB-T, 7 MHz Bandwidth Digital TV system: Video Decoding: MP@ML & MP @ HL ® Ⅰ Audio Decoding: Dolby Digital, MPEG ( &Ⅱ) Audio Sampling Rate: 32, 44.1, 48 kHz Power Requirement: AC 220-240 V, 50/60 Hz...

  • Page 37: Appendix: Installing The Stand

    Appendix: Installing the Stand If the stand is provided, please read these instructions thoroughly before attempting this installation. You must install your TV into the stand in order for it to stand upright on a cabinet or other flat surface. If you intend to mount your TV on a wall or other vertical surface, you must remove the stand column.

  • Page 38

    5944037610 Ver.1.0...
