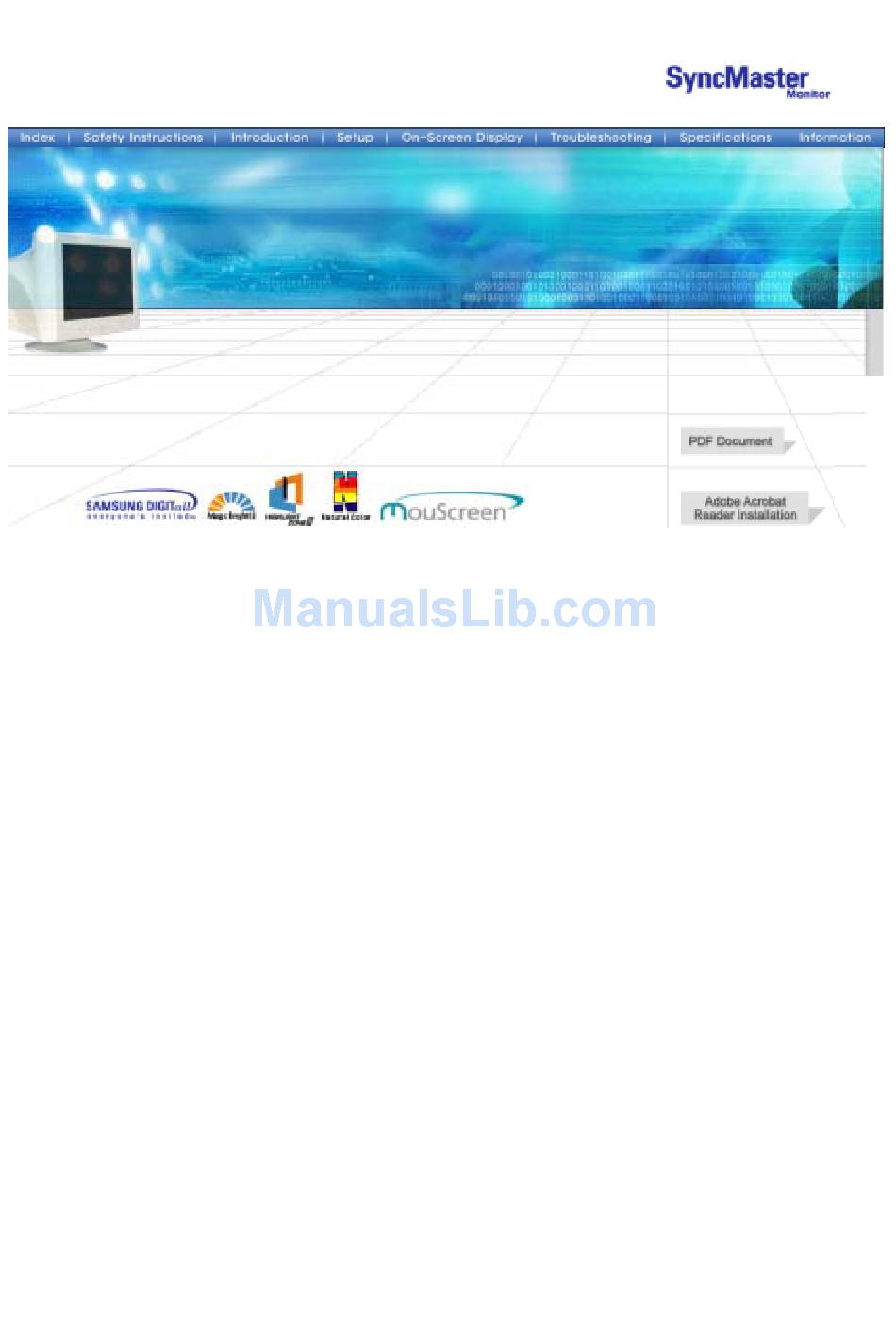

- Page 1 SyncMaster MB1763 / MB1765...
- Page 3 Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Important to read and understand at all times Do not disassemble Disconnect the plug from the outlet Do not touch Grounding to prevent an electric shock...
- Page 4 When not used for extended periods of time, set your PC to DPMS. If using a screen saver, set it to the active screen mode. If the size of your monitor is small, or if the same image is present for long periods of time, you may see afterimages due to damage to the fluorescent substance on the inside of the CDT.
- Page 5 Do not cover the vents on the monitor cabinet. Bad ventilation may cause a breakdown or fire. Put your monitor in a location with low humidity and a minimum of dust. An electric shock or fire could result inside the monitor. Do not drop the monitor when moving it.
- Page 6 You can prevent the coated CDT from being damaged or the monitor cabinet from being dissolved, cracked or discolored. You can buy a recommended detergent at any Samsung Service Center. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth.
- Page 7 Do not remove cover(or back). No user serviceable parts inside. This may cause an electric shock or a fire. Refer servicing to qualified service personnel. If your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer.
- Page 8 Never insert anything metallic into the monitor openings. This may cause an electric shock, fire or injury. Keep the monitor away from any magnetic substances. This may cause discoloring or distortion of the image.
- Page 9 Monitor and Stand Power Cord Stand Quick Setup Guide (Some models include a stand attached. ) Please make sure the following items are included with your monitor. Warranty Card (Not available in all locations) User's Guide and Driver Installation CD...
- Page 10 SyncMaster MB1763 1. MagicBright button Use this button to control the MagicBright. 2. Exit button Use this button to Exit the active menu or the OSD. 3. Adjust buttons These buttons allow you to highlight and adjust items in the menu.
- Page 11 SyncMaster MB1765 The Highlight Zone ensures clear images on TVs, video conferencing 1. Highlight button systems or photos by emphasizing a certain area on the screen. 2. Exit/MagicBright Use this button to exit or conrtol the MagicBright. button These buttons allow you to highlight and adjust items in the menu. 3.
- Page 12 (The configuration at the back of the monitor may vary from product to product.) 1. Power port Connect the power cord for your monitor to the power port on the back of the monitor. 2. Signal Cable Connect the signal cable to the video port on your computer, video board, video card, or graphics card.
- Page 13 1. Signal Cable Connect the signal cable to the video port on your computer, video board, video card, or graphics card. 2. Power port Connect the power cord for your monitor to the power port on the back of the monitor. 3.
- Page 14 SyncMaster MB1763 1. Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2. Connect the signal cable to the video port on your computer, video board, video card, or graphics card.
- Page 15 SyncMaster MB1765 1. Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2. Connecting the signal cables. 1) Connecting to the PC. (Connect the signal cable to the video port on your computer, video board, video card, or graphics card.) 2) Connecting the USB cable...
-
Page 16: Installing The Monitor Driver
Follow the directions as appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung-monitor.com/ (WorldWide) http://www.samsungusa.com/monitor/ (USA) http://www.sec.co.kr/monitor/ (Korea) http://www.samsungmonitor.com.cn/... - Page 17 5. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor Homepage http://www.samsung-monitor.com/. 6. Monitor driver installation is completed.
- Page 18 Follow the directions as appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung-monitor.com/ (Europe, Asia, South America) http://www.samsungusa.com/monitor/ (USA) http://www.sec.co.kr/monitor/ (Korea) http://www.samsungmonitor.com.cn/...
- Page 19 8. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor Homepage...
- Page 20 9. Click the "Close" button then click "OK" button continually. 10. Monitor driver installation is completed. ® ® Microsoft Windows 2000 Operating System When you can see "Digital Signature Not Found" on your monitor, follow these steps. 1. Choose "OK" button on the "Insert disk" window.
- Page 21 ® ® ® ® Microsoft Microsoft Windows Windows Millennium Operating System Millennium Operating System 1. Click "Start" , "Setting" , "Control Panel". 2. Double click "Display" icon. 3. Select the "Settings" tab and click "Advanced Properties" button. 4. Select the "Monitor" tab. 5.
- Page 22 With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable viewing angle. Note: The base is detachable. Attaching the Base 1. Place the monitor upside-down on a flat work surface. 1. Place the monitor upside-down on a flat work surface. 2.
-
Page 23: Check List
Check List Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the warranty card, the phone number on the Information section or contact your dealer. - Page 24 Symptom Check List Solutions The screen shows Is the screen displaying only Check the signal cable connection. one color as if looking at the strange colors or just black and white. screen through a cellophane Make sure the video card is fully paper? inserted in it's slot.
- Page 25 Check the following items if there is trouble with the monitor. 1. Check if the power cord and the cable are properly connected to the computer. 2. Check if the computer beeps more than 3 times when booting. (If it does, request an after-service for the main board of the computer.) 3.
- Page 26 General Q & A Question Answer How can I change the frequency? Frequency can be changed by reconfiguring the video card. Note that video card support can vary, depending on the version of the driver used. (Refer to the computer or the video card manual for details.) How can I adjust the resolution? Windows 95/98/ME/XP/2000: Set the resolution at the...
- Page 27 Self-Test Feature Check Warning Messages Environment Useful Tips Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly. 1. Turn off both your computer and the monitor. 2. Unplug the video cable from the back of the computer. 3.
- Page 28 The location and the position of the monitor may influence the quality and other features of the monitor. 1. If there are any woofer speakers near the monitor, unplug and relocate the woofer to another room. 2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.
- Page 29 SyncMaster MB1763 General Model Name SyncMaster MB1763 Picture Tube Type 17"(43cm) MagicBright™ (40.6cm viewable) Deflection angle 90 ° Dot Pitch 0.20mm (Horizontal) Screen type Aluminized tri-color phosphor dot trio with black matrix. Anti-doming invar shadow mask. Multi-layer coated with anti-static...
- Page 30 This monitor is EPA E compliant and ENERGY2000 compliant NERGY when used with a computer equipped with VESA DPMS functionality. TAR ® As an E Partner, SAMSUNG has determined that this product NERGY TAR ® meets the E guidelines for energy efficiency. NERGY...
- Page 31 SyncMaster MB1763 If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.
- Page 32 SyncMaster MB1765 General Model Name SyncMaster MB1765 Picture Tube Type 17"(43cm) MagicBright™ (40.6cm viewable) Deflection angle 90 ° Dot Pitch 0.20mm (Horizontal) Screen type Aluminized tri-color phosphor dot trio with black matrix. Anti-doming invar shadow mask. Multi-layer coated with anti-static Maximum Resolution 1600 Dots, 1200 Lines Active Display...
- Page 33 This monitor is EPA E compliant and ENERGY2000 compliant NERGY when used with a computer equipped with VESA DPMS functionality. TAR ® As an E Partner, SAMSUNG has determined that this product NERGY TAR ® meets the E guidelines for energy efficiency. NERGY...
- Page 34 SyncMaster MB1765 If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows. Table 1.
- Page 35 Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm Vertical Frequency The screen must be redrawn several times per second in order to create and display an image for the user.
- Page 36 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The party responsible for product compliance: SAMSUNG ELECTRONICS CO., LTD America QA Lab of Samsung 85 West Tasman Drive San Jose, CA 95134 USA Tel) 408-544-5124 Fax) 408-544-5191 Provided with this monitor is a detachable power supply cord with IEC320 style terminations.
- Page 37 IC Compliance Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations of ICES-003. Cet appareil Num érique de classe B respecte toutes les exigences du R èglemont ICES-003 sur les équipements produisant des interférences au Canada. MPR II Compliance This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields.
- Page 38 has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and to the further development of environmentally-adapted electronic products. Why do we have environmentally-labelled monitors? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment.The main problem as far as monitors and other electronic equipment are concerned is that environmentally harmful substances are used both in the products and during their manufacture.
- Page 39 Lead Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. TCO'95 requirement Permits the inclusion of lead since no replacement has yet been developed. Cadmium Cadmium is present in rechargeable batteries and in the colour generating layers of certain computer displays.
- Page 40 important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.
- Page 41 Lead** Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed. * Bio-accumulative is defined as substances which accumulate within living organisms.
- Page 42 For recycling information for TCO'03 certified monitors, for the residents in the following countries, please contact the company corresponding to your region of residence. For those who reside in other countries, please contact a nearest local Samsung dealer for recycling information for the products to be treated in environmentally acceptable way.
- Page 43 For more information, refer to Help (F1) in the software program. How to install the Natural Color software Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the program installation will be executed. Click Natural Color on the initial screen to install the Natural Color software.
- Page 44 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
