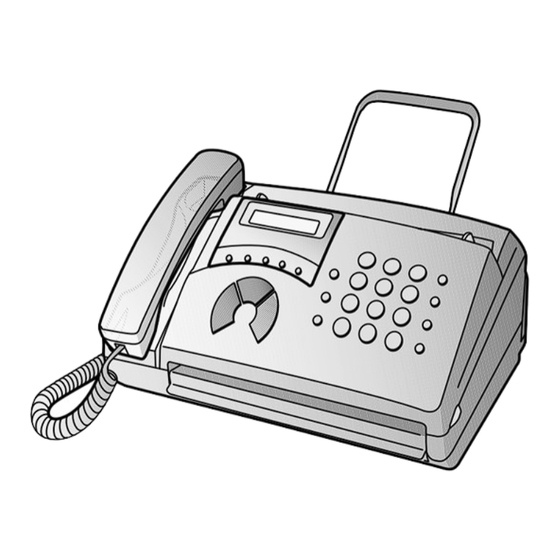

MODEL
UX-84
UX-60
FACSIMILE
OPERATION MANUAL
1. Installation
2. Sending Documents
3. Receiving Documents
4. Making Copies
5. Making Telephone Calls
6. Answering Machine Connection
7. Special Functions
8. Printing Reports and Lists
9. Maintenance
10. Troubleshooting

Advertisement

Table of Contents
loading

Related Manuals for Sharp UX-60

Summary of Contents for Sharp UX-60

  • Page 1 MODEL UX-84 UX-60 FACSIMILE OPERATION MANUAL 1. Installation 2. Sending Documents 3. Receiving Documents 4. Making Copies 5. Making Telephone Calls 6. Answering Machine Connection 7. Special Functions 8. Printing Reports and Lists 9. Maintenance 10. Troubleshooting...

  • Page 2: Mains Plug Wiring Instructions

    all-UX84H.book Page 1 Wednesday, July 5, 2000 8:48 AM MAINS PLUG WIRING INSTRUCTIONS This equipment is fitted with a moulded type mains plug which incorporates a detachable fuse cover, under no circumstances should the plug be used without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type observing the wiring code below.
  • Page 3 all-UX84H.book Page 1 Wednesday, July 5, 2000 8:48 AM Ο εξοπλισµός έχει εγκριθεί για πανευρωπαϊκή σύνδεση µεµονωµένου τερµατικού µε το δηµόσιο τηλεφωνικό δίκτυο µεταγωγής (PSTN), σύµφωνα µε την απόφαση 98/482/ΕΚ και EK του Συµβουλίου 7 ωστόσο, επειδή υπάρχουν διαφορές µεταξύ των...

  • Page 4: Quick Reference Guide

    all-UX84H.book Page 2 Wednesday, July 5, 2000 8:48 AM Quick Reference Guide Entering Your Name and Setting the Date and Time Number FUNCTION 1. Press: FUNCTION 1. Press: Display shows: DATE & TIME SET Display shows: OWN NUMBER SET START/ 2.

  • Page 5: Sending Faxes

    all-UX84H.book Page 3 Wednesday, July 5, 2000 8:48 AM Quick Reference Guide Sending Faxes FAX mode: The fax machine automatically answers on the set number of rings and receives the incoming document. Place your document (up to 5 pages) face TEL mode: down in the document feeder.

  • Page 6: Introduction

    Page 4 Wednesday, July 5, 2000 8:48 AM Introduction Welcome, and thank you for choosing a Sharp facsimile machine! The features and specifications of your new Sharp fax are shown below.
  • Page 7 all-UX84H.book Page 5 Wednesday, July 5, 2000 8:48 AM ° °...

  • Page 8: Important Safety Information

    all-UX84H.book Page 6 Wednesday, July 5, 2000 8:48 AM Important safety information...
  • Page 9 all-UX84H.book Page 7 Wednesday, July 5, 2000 8:48 AM...

  • Page 10: Table Of Contents

    all-UX84H.book Page 8 Wednesday, July 5, 2000 8:48 AM Table of Contents Quick Reference Guide ......2 Introduction .
  • Page 11 all-UX84H.book Page 9 Wednesday, July 5, 2000 8:48 AM 4. Receiving Documents ......82 Using TEL/FAX Mode .
  • Page 12 all-UX84H.book Page 10 Wednesday, July 5, 2000 8:48 AM Note...

  • Page 13: Installation

    all-UX84H.book Page 11 Wednesday, July 5, 2000 8:48 AM 1. Installation Unpacking Checklist Before setting up, If any are missing, make sure you have contact your dealer or all of the following retailer. items. Original document Emergency labels support Handset Operation manual Handset lead...

  • Page 14: A Look At The Operation Panel

    all-UX84H.book Page 12 Wednesday, July 5, 2000 8:48 AM A Look at the Operation Panel A Look at the Operation Panel TEL/FAX A.M. SPEED REC/MEMO REPEAT PLAY/SKIP DIAL DELETE VOLUME REDIAL POLL STOP PQRS WXYZ FUNCTION SEARCH RESOLUTION/ COPY/ SYMBOLS RECEPTION MODE SPEAKER START/...
  • Page 15 all-UX84H.book Page 13 Wednesday, July 5, 2000 8:48 AM A Look at the Operation Panel...
  • Page 16 all-UX84H.book Page 14 Wednesday, July 5, 2000 8:48 AM...

  • Page 17: Connections

    all-UX84H.book Page 15 Wednesday, July 5, 2000 8:48 AM Connections Connections Points to keep in mind when setting up Do not place the machine in Do not place the machine near direct sunlight. heaters or air conditioners. Keep dust away from the Keep the area in front of the machine.
  • Page 18 all-UX84H.book Page 16 Wednesday, July 5, 2000 8:48 AM Connections Connecting the Handset ♦ Make sure the handset lead goes into the socket marked with a handset symbol on the side of the machine! Use the handset to make ordinary phone calls, or to transmit and receive faxes manually.
  • Page 19 all-UX84H.book Page 17 Wednesday, July 5, 2000 8:48 AM Connections Removing the packing paper Note: Do not peel off or bend this strip of film.
  • Page 20 all-UX84H.book Page 18 Wednesday, July 5, 2000 8:48 AM Connections Connecting the power lead The machine does not have a power on/off switch, so the power is turned on and off by simply plugging in or unplugging the power cord.
  • Page 21 all-UX84H.book Page 19 Wednesday, July 5, 2000 8:48 AM Connections Connecting the telephone line cord Attaching the original document support...
  • Page 22 all-UX84H.book Page 20 Wednesday, July 5, 2000 8:48 AM Connections Extension phone (optional) •...

  • Page 23: Loading The Thermal Paper

    all-UX84H.book Page 21 Wednesday, July 5, 2000 8:48 AM Loading the Thermal Paper Loading the Thermal Paper The fax machine’s print Your fax machine prints head creates text and incoming faxes on a images by applying heat special kind of paper to the thermal paper.
  • Page 24 all-UX84H.book Page 22 Wednesday, July 5, 2000 8:48 AM Loading the Thermal Paper ♦...
  • Page 25 all-UX84H.book Page 23 Wednesday, July 5, 2000 8:48 AM Loading the Thermal Paper • Click!
  • Page 26 all-UX84H.book Page 24 Wednesday, July 5, 2000 8:48 AM Loading the Thermal Paper Replacing the thermal paper Handling thermal paper ♦ ♦ ♦ ♦...

  • Page 27: Entering Your Name And Fax Number

    all-UX84H.book Page 25 Wednesday, July 5, 2000 8:48 AM Entering Your Name and Fax Number Entering Your Name and Fax Number Before you can begin using Once you enter this your fax machine, you must information, it will enter your name and fax automatically appear at the (telephone) number.
  • Page 28 all-UX84H.book Page 26 Wednesday, July 5, 2000 8:48 AM Entering Your Name and Fax Number OWN NUMBER SET START/ MEMORY ENTER FAX # • • START/ MEMORY ENTER YOUR NAME...
  • Page 29 all-UX84H.book Page 27 Wednesday, July 5, 2000 8:48 AM Entering Your Name and Fax Number SPEAKER SPACE = ♦ ♦ ♦ ♦ → ←...
  • Page 30 all-UX84H.book Page 28 Wednesday, July 5, 2000 8:48 AM Entering Your Name and Fax Number START/ MEMORY STORED STOP...

  • Page 31: Setting The Date And Time

    all-UX84H.book Page 29 Wednesday, July 5, 2000 8:48 AM Setting the Date and Time Setting the Date and Time The date and time appear in the display and reports, and are printed at the top of every page you transmit. TEL FAX 3 key TEL /FAX A.M.
  • Page 32 all-UX84H.book Page 30 Wednesday, July 5, 2000 8:48 AM Setting the Date and Time START/ • MEMORY • Example: the 5th Example: January Example: 2000 Example: 9:25...
  • Page 33 all-UX84H.book Page 31 Wednesday, July 5, 2000 8:48 AM Setting the Date and Time START/ MEMORY STORE JUNK # STOP...

  • Page 34: Setting The Reception Mode

    all-UX84H.book Page 32 Wednesday, July 5, 2000 8:48 AM Setting the Reception Mode Setting the Reception Mode...
  • Page 35 all-UX84H.book Page 33 Wednesday, July 5, 2000 8:48 AM Setting the Reception Mode Setting the reception mode document TEL FAX TEL /FAX A.M. SPEED REC/MEMO REPEAT PLAY/SKIP DELETE DIAL VOLUME REDIAL POLL STOP PQRS WXYZ FUNCTION SEARCH RESOLUTION/ START/ COPY/ SYMBOLS RECEPTION MODE SPEAKER...

  • Page 36: Volume Adjustment

    all-UX84H.book Page 34 Wednesday, July 5, 2000 8:48 AM Volume Adjustment Volume Adjustment VOLUME key TEL /FAX A.M. SPEED REC/MEMO REPEAT PLAY/SKIP DELETE DIAL VOLUME REDIAL POLL STOP PQRS WXYZ FUNCTION SEARCH RESOLUTION/ START/ COPY/ SYMBOLS RECEPTION MODE SPEAKER MEMORY HELP Speaker SPEAKER...
  • Page 37 all-UX84H.book Page 35 Wednesday, July 5, 2000 8:48 AM Volume Adjustment Ringer VOLUME RINGER: MIDDLE RINGER: HIGH RINGER : OFF OK? RINGER: LOW RINGER : OFF OK? • START/ MEMORY...

  • Page 38: Using The Answering Machine

    all-UX84H.book Page 36 Wednesday, July 5, 2000 8:48 AM 2. Using the Answering Machine To use the answering machine, record an outgoing message and then set the reception mode to A.M. when you go out. The UX-84 can store up to 24 minutes of voice messages (including OGMs) with no documents in memory.
  • Page 39 all-UX84H.book Page 37 Wednesday, July 5, 2000 8:48 AM Recording an Outgoing Message START/ MEMORY GENERAL TRANSFER • START/ MEMORY • STOP STOP...
  • Page 40 all-UX84H.book Page 38 Wednesday, July 5, 2000 8:48 AM Recording an Outgoing Message To listen to or erase an outgoing message...

  • Page 41: Operating The Answering Machine

    all-UX84H.book Page 39 Wednesday, July 5, 2000 8:48 AM Operating the Answering Machine Operating the Answering Machine Activating the answering machine RESOLUTION/ RECEPTION MODE • • A.M. TEL/FAX...
  • Page 42 all-UX84H.book Page 40 Wednesday, July 5, 2000 8:48 AM Operating the Answering Machine Listening to received messages • PLAY/SKIP • • REPEAT • REPEAT • PLAY/SKIP...
  • Page 43 all-UX84H.book Page 41 Wednesday, July 5, 2000 8:48 AM Operating the Answering Machine Erasing received messages • DELETE • Using the REC/MEMO key • REC/MEMO •...
  • Page 44 all-UX84H.book Page 42 Wednesday, July 5, 2000 8:48 AM Operating the Answering Machine Date and time of ICMs ♦ FUNCTION A.M. SETTINGS ICM CONFIRMATION START/ MEMORY • STOP...

  • Page 45: Optional Answering Machine Settings

    all-UX84H.book Page 43 Wednesday, July 5, 2000 8:48 AM Optional Answering Machine Settings Optional Answering Machine Settings Setting ICM time ♦ FUNCTION A.M. SETTINGS ICM RECORD TIME • • • • STOP...
  • Page 46 all-UX84H.book Page 44 Wednesday, July 5, 2000 8:48 AM Optional Answering Machine Settings Fax reception on A.M. failure ♦ ♦ FUNCTION A.M. SETTINGS ON A.M. FAILURE...
  • Page 47 all-UX84H.book Page 45 Wednesday, July 5, 2000 8:48 AM STOP Calling Party Control detection FUNCTION A.M. SETTINGS CPC DETECTION...
  • Page 48 all-UX84H.book Page 46 Wednesday, July 5, 2000 8:48 AM Optional Answering Machine Settings STOP OGM only mode FUNCTION OGM ONLY MODE STOP...

  • Page 49: Transfer Function

    all-UX84H.book Page 47 Wednesday, July 5, 2000 8:48 AM Transfer Function Transfer Function Remote Operations Programming the transfer number FUNCTION A.M. SETTINGS TRANSFER # ENTRY...
  • Page 50 all-UX84H.book Page 48 Wednesday, July 5, 2000 8:48 AM Transfer Function START/ MEMORY (Example) • STOP START/ MEMORY Recording the transfer message Recording an Outgoing Message...
  • Page 51 all-UX84H.book Page 49 Wednesday, July 5, 2000 8:48 AM Transfer Function Turning the Transfer function on and off FUNCTION A.M. SETTINGS TRANSFER FUNC STOP...

  • Page 52: Override Ringing

    all-UX84H.book Page 50 Wednesday, July 5, 2000 8:48 AM Override Ringing Override Ringing Programming the override code ♦ FUNCTION A.M. SETTINGS OVERRIDE CODE (Example) STOP START/ MEMORY...
  • Page 53 all-UX84H.book Page 51 Wednesday, July 5, 2000 8:48 AM Override Ringing Overriding the answering machine • (Example) • •...

  • Page 54: Remote Operations

    all-UX84H.book Page 52 Wednesday, July 5, 2000 8:48 AM Remote Operations Remote Operations Remote code number FUNCTION A.M. SETTINGS REMOTE CODE (Example) STOP START/ MEMORY...
  • Page 55 all-UX84H.book Page 53 Wednesday, July 5, 2000 8:48 AM Remote Operations Toll Saver Changing the number of rings FUNCTION A.M. SETTINGS TOLL SAVER STOP...
  • Page 56 all-UX84H.book Page 54 Wednesday, July 5, 2000 8:48 AM Remote Operations Retrieving your messages • • (Example) • Other remote operations...
  • Page 57 all-UX84H.book Page 55 Wednesday, July 5, 2000 8:48 AM Remote Operations • • • Other remote operations • • •...
  • Page 58 all-UX84H.book Page 56 Wednesday, July 5, 2000 8:48 AM Remote Operations • • Other remote operations • ♦ ♦ ♦...
  • Page 59 all-UX84H.book Page 57 Wednesday, July 5, 2000 8:48 AM Remote Operations Other remote operations Changing the fax reception mode • • (Example) • • Recording a new outgoing message...
  • Page 60 all-UX84H.book Page 58 Wednesday, July 5, 2000 8:48 AM Remote Operations • Turning the Transfer function on or off (Example) Changing the transfer telephone number • (Example)
  • Page 61 all-UX84H.book Page 59 Wednesday, July 5, 2000 8:48 AM Remote Operations Recording a new transfer message • Recording a "Memo" •...
  • Page 62 all-UX84H.book Page 60 Wednesday, July 5, 2000 8:48 AM Remote Operations OGM only mode (Example)

  • Page 63: Sending Documents

    all-UX84H.book Page 61 Wednesday, July 5, 2000 8:48 AM 3. Sending Documents Transmittable Documents Size and weight 216 mm Minimum 148 mm Maximum size size 600 mm 140 mm Minimum Maximum weight weight 52 g/m² 157 g/m² 216 mm Minimum 148 mm Maximum size...
  • Page 64 all-UX84H.book Page 62 Wednesday, July 5, 2000 8:48 AM Transmittable Documents Letters in the 5 mm shaded area will not be scanned. 4 mm 4 mm 5 mm Other restrictions ♦ ♦ ♦ ♦...

  • Page 65: Loading The Document

    all-UX84H.book Page 63 Wednesday, July 5, 2000 8:48 AM Loading the Document Loading the Document ♦ ♦ • READY TO SEND...
  • Page 66 all-UX84H.book Page 64 Wednesday, July 5, 2000 8:48 AM Loading the Document RESOLUTION/ RECEPTION MODE Resolution and Contrast Sending a Fax by Normal Dialling Removing a document from the feeder If you need to remove a document from the feeder, open the operation panel.
  • Page 67 all-UX84H.book Page 65 Wednesday, July 5, 2000 8:48 AM Loading the Document •...

  • Page 68: Adjusting The Resolution And Contrast

    all-UX84H.book Page 66 Wednesday, July 5, 2000 8:48 AM Adjusting the Resolution and Contrast Adjusting the Resolution and Contrast You must adjust the The default resolution resolution and/or setting is STANDARD contrast each time you and the default contrast don’t want to use the setting is AUTO.
  • Page 69 all-UX84H.book Page 67 Wednesday, July 5, 2000 8:48 AM Adjusting the Resolution and Contrast • STANDARD :AUTO • FINE :AUTO SUPER FINE :AUTO HALF TONE :AUTO RESOLUTION/ RECEPTION MODE STANDARD :DARK FINE :DARK SUPER FINE :DARK HALF TONE :DARK...

  • Page 70: Sending A Fax By Normal Dialling

    all-UX84H.book Page 68 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Normal Dialling Sending a Fax by Normal Dialling ♦ ♦ READY TO SEND • RESOLUTION RECEPTION MODE SPEAKER (Example)

  • Page 71: Using The Redial Key

    all-UX84H.book Page 69 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Normal Dialling Beep • START/ MEMORY • Using the REDIAL key...

  • Page 72: Sending A Fax By Automatic Dialling

    all-UX84H.book Page 70 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling Sending a Fax by Automatic Dialling ♦ ♦ Speed Dial numbers 01 through 05 are for Rapid Key (one-touch) Dialling. Speed Dial numbers 06 SPEED DIAL START/ through 40 are for...
  • Page 73 all-UX84H.book Page 71 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling Storing fax and telephone numbers for Automatic Dialling FUNCTION FAX/TEL # MODE 1=SET,2=CLEAR FAX/TEL # SET ENTER SPEED # (Example) (Example) • ♦...
  • Page 74 all-UX84H.book Page 72 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling START/ MEMORY SPACE = SPEAKER ♦ ♦ START/ MEMORY...
  • Page 75 all-UX84H.book Page 73 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling STOP Step 3 or Printing Lists Chain Dialling for area and access codes Chain Dialling on page 92 Clearing auto-dial numbers FUNCTION FAX/TEL # MODE 1=SET,2=CLEAR...
  • Page 76 all-UX84H.book Page 74 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling (Example) START/ MEMORY STOP Step 3 or Making changes...
  • Page 77 all-UX84H.book Page 75 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling Rapid Key Dialling READY TO SEND • RESOLUTION/ RECEPTION MODE Example: To dial Speed • Dial number 01, press Rapid Key A. •...

  • Page 78: Speed Dialling

    all-UX84H.book Page 76 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling Speed Dialling READY TO SEND • RESOLUTION/ RECEPTION MODE SPEED DIAL • (Example) START/ MEMORY...

  • Page 79: Direct Keypad Dialling

    all-UX84H.book Page 77 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling Direct Keypad Dialling READY TO SEND RESOLUTION/ • RECEPTION MODE • (Example) START/ MEMORY •...

  • Page 80: Searching For An Auto-Dial Number

    all-UX84H.book Page 78 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling Searching for an auto-dial number READY TO SEND • RESOLUTION/ RECEPTION MODE SEARCH PQRS WXYZ ♦ ♦...
  • Page 81 all-UX84H.book Page 79 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling • START/ MEMORY Automatic redialling ♦...
  • Page 82 all-UX84H.book Page 80 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling Transaction Report ♦ FUNCTION TRANSACTION LIST STOP...
  • Page 83 all-UX84H.book Page 81 Wednesday, July 5, 2000 8:48 AM Sending a Fax by Automatic Dialling Line Error...

  • Page 84: Receiving Documents

    all-UX84H.book Page 82 Wednesday, July 5, 2000 8:48 AM 4. Receiving Documents Using TEL/FAX Mode Press the RESOLUTION/ RECEPTION MODE key until the arrow in the display points to TEL/FAX. RESOLUTION RECEPTION MODE TEL/FAX A.M. ♦ ♦...

  • Page 85: Using Fax Mode

    all-UX84H.book Page 83 Wednesday, July 5, 2000 8:48 AM Using FAX Mode Using FAX Mode To select FAX mode, press the RESOLUTION/ RECEPTION MODE key until the arrow in the display points to FAX. RESOLUTION RECEPTION MODE TEL/FAX A.M. Fax reception 2 rings ♦...
  • Page 86 all-UX84H.book Page 84 Wednesday, July 5, 2000 8:48 AM Using FAX Mode Changing the number of rings FUNCTION NUMBER OF RINGS ENTER (2-5) (2) Example: 3 rings TEL/FAX REMOTE # STOP...

  • Page 87: Using Tel Reception Mode

    all-UX84H.book Page 85 Wednesday, July 5, 2000 8:48 AM Using TEL Reception Mode Using TEL Reception Mode To select TEL mode, press the RESOLUTION/ RECEPTION MODE key until the arrow in the display points to TEL. RESOLUTION RECEPTION MODE TEL/FAX A.M.
  • Page 88 all-UX84H.book Page 86 Wednesday, July 5, 2000 8:48 AM Using TEL Reception Mode • START/ RECEIVING MEMORY Answering with an extension phone Beep Phone goes dead or pronounced, high-pitched tones...
  • Page 89 all-UX84H.book Page 87 Wednesday, July 5, 2000 8:48 AM Using TEL Reception Mode ♦ ♦ Changing the number for remote fax activation FUNCTION TEL/FAX REMOTE # (Example)
  • Page 90 all-UX84H.book Page 88 Wednesday, July 5, 2000 8:48 AM Using TEL Reception Mode STOP Fax Signal Receive FUNCTION FAX SIGNAL RX STOP...

  • Page 91: Substitute Reception To Memory

    all-UX84H.book Page 89 Wednesday, July 5, 2000 8:48 AM Substitute Reception to Memory Substitute Reception to Memory...

  • Page 92: Making Copies

    all-UX84H.book Page 90 Wednesday, July 5, 2000 8:48 AM 5. Making Copies ♦ READY TO SEND • RESOLUTION RECEPTION MODE COPY/ HELP...

  • Page 93: Making Telephone Calls

    all-UX84H.book Page 91 Wednesday, July 5, 2000 8:48 AM 6. Making Telephone Calls ♦ SPEAKER • • Example: Press Rapid Key A • •...
  • Page 94 all-UX84H.book Page 92 Wednesday, July 5, 2000 8:48 AM Making Telephone Calls ♦ ♦ Chain Dialling Searching for an auto-dial number Searching for an auto-dial number Sending a Fax by Automatic Dialling Redial...
  • Page 95 all-UX84H.book Page 93 Wednesday, July 5, 2000 8:48 AM Making Telephone Calls PBX operations Making enquiry calls SEARCH...
  • Page 96 all-UX84H.book Page 94 Wednesday, July 5, 2000 8:48 AM Making Telephone Calls Transferring calls SEARCH •...

  • Page 97: Special Functions

    all-UX84H.book Page 95 Wednesday, July 5, 2000 8:48 AM 7. Special Functions Caller ID (Requires Subscription to Service) ♦ ♦ FUNCTION OPTION SETTING PRESS * OR # * * * * CALLER-ID 1=YES,2=NO...
  • Page 98 all-UX84H.book Page 96 Wednesday, July 5, 2000 8:48 AM Caller ID NUMBER OF RINGS STOP...
  • Page 99 all-UX84H.book Page 97 Wednesday, July 5, 2000 8:48 AM Caller ID How Caller ID operates Display example 525-8693 DOE JOHN Caller’s name Caller’s number Display messages...
  • Page 100 all-UX84H.book Page 98 Wednesday, July 5, 2000 8:48 AM Caller ID Viewing the Caller ID list ♦ SEARCH REVIEWING CALLS • START/ MEMORY...
  • Page 101 all-UX84H.book Page 99 Wednesday, July 5, 2000 8:48 AM Caller ID • STOP To delete calls from the Caller ID list Priority Call FUNCTION PRIORITY CALL #...
  • Page 102 all-UX84H.book Page 100 Wednesday, July 5, 2000 8:48 AM Caller ID CLEAR STOP START/ MEMORY Blocking voice calls Blocking Reception of Unwanted Faxes Blocking Reception of Unwanted Faxes...

  • Page 103: Blocking Reception Of Unwanted Faxes

    all-UX84H.book Page 101 Wednesday, July 5, 2000 8:48 AM Blocking Reception of Unwanted Faxes Blocking Reception of Unwanted Faxes ♦ ♦ ♦ FUNCTION ENTRY MODE * * * * STORE JUNK # 1=SET,2=CLEAR...
  • Page 104 all-UX84H.book Page 102 Wednesday, July 5, 2000 8:48 AM Blocking Reception of Unwanted Faxes CLEAR (Example) (Example) START/ MEMORY STOP Step 4 or...

  • Page 105: Sending Documents From Memory

    all-UX84H.book Page 103 Wednesday, July 5, 2000 8:48 AM Sending Documents From Memory Sending Documents From Memory ♦ ♦ READY TO SEND • RESOLUTION RECEPTION MODE START/ MEMORY ENTER STATION #...
  • Page 106 all-UX84H.book Page 104 Wednesday, July 5, 2000 8:48 AM Sending Documents From Memory POLL (Example) • • • START/ MEMORY • If the memory becomes full... ♦ ♦...

  • Page 107: Broadcasting

    all-UX84H.book Page 105 Wednesday, July 5, 2000 8:48 AM Broadcasting Broadcasting ♦ READY TO SEND START/ MEMORY • • (Example)
  • Page 108 all-UX84H.book Page 106 Wednesday, July 5, 2000 8:48 AM Broadcasting START/ MEMORY • RESOLUTION RECEPTION MODE START/ MEMORY •...

  • Page 109: Polling (Requesting A Fax Transmission)

    all-UX84H.book Page 107 Wednesday, July 5, 2000 8:48 AM Polling (Requesting a Fax Transmission) Polling (Requesting a Fax Transmission) ♦ FUNCTION POLLING STOP...
  • Page 110 all-UX84H.book Page 108 Wednesday, July 5, 2000 8:48 AM Polling (Requesting a Fax Transmission) Requesting transmission • PQRS WXYZ • (Example) • POLL • Turnaround polling Requesting transmission ♦...
  • Page 111 all-UX84H.book Page 109 Wednesday, July 5, 2000 8:48 AM Polling (Requesting a Fax Transmission) Being polled (polling standby) Polling security FUNCTION SECURITY SELECT STOP START/ MEMORY...
  • Page 112 all-UX84H.book Page 110 Wednesday, July 5, 2000 8:48 AM Polling (Requesting a Fax Transmission) Storing and clearing fax numbers for polling permission FUNCTION PASSCODE # MODE CLEAR (Example) (Example) START/ MEMORY STOP Step 3 or...

  • Page 113: Printing Lists

    all-UX84H.book Page 111 Wednesday, July 5, 2000 8:48 AM 8. Printing Lists FUNCTION LISTING MODE START/ MEMORY Telephone Number List...
  • Page 114 all-UX84H.book Page 112 Wednesday, July 5, 2000 8:48 AM Printing Lists Passcode List Anti Junk Number List...
  • Page 115 all-UX84H.book Page 113 Wednesday, July 5, 2000 8:48 AM Printing Lists A.M. Program List Message List...

  • Page 116: Maintenance

    all-UX84H.book Page 114 Wednesday, July 5, 2000 8:48 AM 9. Maintenance Cleaning the scanning glass and rollers • Scanning glass...
  • Page 117 all-UX84H.book Page 115 Wednesday, July 5, 2000 8:48 AM • Cleaning the housing...
