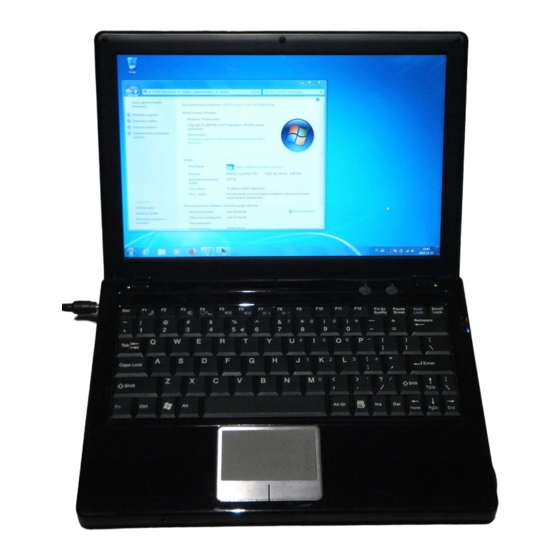

- Page 1 MAXDATA Notebook PRO 800 IW User's Manual...
-
Page 3: Table Of Contents
Silent mode button ......................75 The Keyboard ........................76 The TouchPad ........................77 The TouchPad - Operation ....................77 The optical drive ......................78 ExpressCard ........................79 The Memory Card Slot ....................79 The LAN Port ........................80 MAXDATA Notebook PRO 800 IW... - Page 4 Installation Instructions Restoring the Drivers ....................... 81 The Utility CD ........................81 Setting the Resolution ..................... 81 Specifications Fault Diagnosis and Troubleshooting Index Contents...
-
Page 5: Note
Please also consult your dealer to make sure that it is possible to run your chosen operating system on your notebook. The operating system is not contained on the device drivers and utilities CD-ROM. Note: Some or all system configurations may have been made already. MAXDATA Notebook PRO 800 IW... - Page 6 Declaration: This device meets the EN 55022 product standard for interference emissions, the EN 50082-1 basic standard for interference, and the EN 60950 low voltage directive standard. If any modification that has not been agreed upon with the manufacturer is made to the device, adherence to these standards can no longer be guaranteed.
- Page 7 They are accepted free of charge by manufacturers, dealers or their representatives for recycling or disposal. The outside packaging and all inner parts of the box can be disposed of as waste paper. MAXDATA Notebook PRO 800 IW...
-
Page 9: Important Safety Information
The notebook is provided with a battery. The battery is recyclable. It is prohibited by law to dispose of the battery in ordinary household waste. If you have ques- tions concerning proper disposal, consult your garbage collection service. MAXDATA Notebook PRO 800 IW... - Page 10 • Note on folding back the display Caution: Do not fold back the dis- Max. 135° play further than 135°. • Note on the System Clock Battery Caution: There is a risk of explosion if batteries are replaced incorrectly. Replace the battery only with a battery recommended by the manufacturer or with a battery of the same type.
-
Page 11: Wireless Lan
In 1997 the IEEE confirmed the standard 802.11 for WLANs; this set a data transfer rate of 1 to 2 Mbit/s (Megabits per second). Under 802.11a+b+g, the new governing standard, the maximum data transfer rate is 54 Mbit/s over a frequency band of 2.4 or 5 GHz (Giga- hertz). MAXDATA Notebook PRO 800 IW... -
Page 12: Additional Safety Notes For Units With Wireless Lan
MAXDATA Computer GmbH is not responsible for disruptions to radio or television recep- tion which are caused by unauthorized alterations to this unit. MAXDATA also accepts no responsibility for the replacement or the exchange of connecting cables and units which were not specified by MAXDATA Computer GmbH. -
Page 13: Ce-Labelling For Units With Wireless Lan
Sweden - www.pts.se France - www.art-telecom.fr Switzerland - www.bakom.ch Greece - www.eett.gr Spain - www.cmt.es England - www.oftel.gov.uk Iceland - www.pta.is Ireland - www.comreg.ie Liechtenstein - www.ak.li Italy - www.agcom.it Norway - www.npt.no Luxembourg - www.etat.lu/ILT MAXDATA Notebook PRO 800 IW... -
Page 14: Restrictions
Restrictions France Restricted frequency range: In France, you may only use channels 10 to 11 (2457 MHz or 2462 MHz). It is forbidden to use the unit outside of enclosed areas. Info: www.art-telecom.fr Italy An official authorization is also required to use the unit in internal areas. For more detailed information about the necessary procedure to do this, please contact your provider. -
Page 15: Radio Frequencies For Units With Wireless Lan
2437 2442 2447 2452 2457 2462 In addition, the integrated radio network card supports the standard 802.11a. For more information regarding 5 GHz band frequencies authorized in your country, please contact your respective appropriate authority. MAXDATA Notebook PRO 800 IW... -
Page 16: Legal Requirements - Exception Clauses
Legal requirements - exception clauses EXCEPTION CLAUSES FOR UNITS WITH WIRELESS LAN The installation and use of an unit with Wireless LAN may only take place when in accordance with the instructions contained in the user documents. The user documents are included in the material supplied with the product. -
Page 17: Shipping Contents
• Power adapter • Power cable • User guide • Optical drive Please retain the original packaging in case you need to send the device for repairs or up- grades. Please store the packaging safely. MAXDATA Notebook PRO 800 IW... -
Page 19: Preparation
Before first using the computer, make sure you are familiar with the individual components of your system. The notebook has no separate lock. Simply fold back the display to open the notebook. Fig. 1 LC display Status LEDs Keyboard TouchPad with buttons Microphone Silent mode button On/off button MAXDATA Notebook PRO 800 IW... -
Page 20: Inserting The Battery
Inserting the Battery The battery is included in the notebook’s shipping contents. This battery is only partially charged. Note that the charging time for the battery is 4-6 hours if the computer is switched off, or 6-10 hours if the computer is switched on. It is absolutely essen- tial to fully charge the battery for initial op-... -
Page 21: Power Supply
Use only the supplied power adapter. Using the wrong power adapter can cause damage to the computer. The power adapter contains no service- able parts. NEVER OPEN THE POWER ADAPTER! DANGER OF DEATH! MAXDATA Notebook PRO 800 IW... -
Page 22: Switching The Notebook On
Switching the Notebook On You’ve now completed the preparations. Now press the on/off button to switch on the notebook. Tip: Once the computer is switched on, the on/off button can per- If you experience a form several functions depending on the energy settings. program or system In the standard setting, pressing the on/off button again will crash, press the keys:... -
Page 23: Power Management
Note on the ExpressCard: Never remove an ExpressCard when the system is in sleep mode.This would deactivate the slot and prob- lems could arise from a modified system configuration the next time you start up the computer. MAXDATA Notebook PRO 800 IW... -
Page 25: System Overview
Emergency release for optical drive (use only if notebook is switched off)) Right Side Fig. 6 ExpressCard slot Memory card slot IEEE 1394 port USB ports Kensington Lock anti-theft device Loudspeaker/headphones socket Microphone socket Network port Ventilation slots MAXDATA Notebook PRO 800 IW... -
Page 26: Front View
Front View Fig. 7 On/off button for WLAN Loudspeaker Ventilation slots Underside All air intake and ventilation openings must be kept free from obstructions at all times. If not, the device is liable to overheat. Fig. 8 Battery and battery release catch Ventilation slots System device cover MiniCard slot cover (free) -
Page 27: Explanation Of Led Displays
Lights green when notebook is in use and connected to the mains. Lights green when the silent mode is on. Flashes green when the notebook is in standby mode. Lights blue when the WLAN module is enabled. MAXDATA Notebook PRO 800 IW... -
Page 28: Hot Keys
Hot Keys (Shortcut key combinations with special functions) To activate the hot keys, press and hold down the Fn key and then press the desired additional key. Table 2 Keys Meaning Fn + F1 Switches to power save mode Fn + F3 Switches the loudspeaker on/off Fn + F4 Switches between LC display/monitor/both... -
Page 29: Silent Mode Button
The silent mode button is at the top of the keyboard. Pressing this button will activate the silent mode. (This means that the notebook uses less power and reduces heat and noise production.) Fig. 10 Silent mode button MAXDATA Notebook PRO 800 IW... -
Page 30: The Keyboard
The Keyboard Your notebook’s keyboard has all the functions of a normal AT-compatible keyboard plus some extras: Typewriter These keys correspond to a typewriter’s keys. Function keys In many operating systems (and applications), special functions are available via these keys. You can find more detailed information on this in the relevant handbooks. -
Page 31: The Touchpad
When using the TouchPad, make sure it as well as your finger are clean and dry. The TouchPad reacts to finger movements. The lighter it is touched, the better it reacts. Pressing hard will not increase its accuracy. MAXDATA Notebook PRO 800 IW... -
Page 32: The Optical Drive
The optical drive To insert a CD or DVD, press the eject button at the front of the drive. Fig. 13 Fig. 14 Place a CD or DVD onto the spindle with the label side facing up and push it gently down onto the spindle. -
Page 33: Expresscard
To remove it, simply pull the card out. Never remove the card while data is being read or written to the card! Use the “Safely Remove Hardware” function to remove the memory card! MAXDATA Notebook PRO 800 IW... -
Page 34: The Lan Port
The LAN Port The built-in network adapter enables your computer to connect to the Internet via a 10/100/1000 Mbps network or DSL. The connection is made via an Ethernet network cable and RJ-45 connectors. These are inserted on the back of the computer and into an available network hub or DSL socket. Under no circumstanc- es should you con- fuse a network cable... -
Page 35: Installation Instructions
Right-click on any free area of the desktop. Select <Properties>. In the Display Properties window, click the Settings tab. Here you can set the slider to a resolution you find comfortable. Click <Apply> to set the resolution. MAXDATA Notebook PRO 800 IW... -
Page 37: Specifications
Supports up to 2048 × 1536, 16.7 million colors Storage Capacity • One SATA hard disk (2.5“ , 9.5 mm) • One internal optical drive • One memory card slot Audio • High definition audio • Built-in stereo loudspeakers MAXDATA Notebook PRO 800 IW... -
Page 38: Input Devices
• Gigabit Ethernet function for 10/100/1000 Mbit/s, built in • Intel PRO/wireless 3945ABG network module (optional) ® Input Devices • 86/87/88-key Microsoft Windows keyboard ® ® • Ergonomically positioned TouchPad Ports • One 15-pin VGA port • One headphone output socket •... -
Page 39: Operating System
Dimensions 210 (D) × 296 (W) × 33–40 (H) mm • Weight 1.9 kg (depending on model) • Operating temperature: 5 to 35 °C • Operating humidity: 20 to 80 % RH • Storage temperature: -10 to 50 °C MAXDATA Notebook PRO 800 IW... -
Page 41: Fault Diagnosis And Troubleshooting
• Press the on/off button. Possible cause of the problem: • The screen settings are incorrect. Troubleshooting: • Press the spacebar, several times if necessary. • If an external monitor is connected, switch it on. MAXDATA Notebook PRO 800 IW... - Page 42 Possible cause of the problem: • In the System Settings, a screen type other than the existing one has been set. Troubleshooting: • Press the Fn + F4 key combination. • If an external monitor is connected, connect this to a power source and switch it on. Also check the brightness and contrast settings.
-
Page 43: Index
Power adapter ..55, 66, 67 , 69, 71, 84, 87 Graphics gunctions, basic ...... 68 Power cable ........56, 67 Power supply ........55, 56 Household waste ......53, 55 Qualified service personnel ..55, 56, 83 MAXDATA Notebook PRO 800 IW... - Page 44 Resolution ........68, 81 Restarting ..........68 S-Video ..........71 Shipping contents ........63 Shocks/Vibrations ........55 Silent mode button ........ 65 Standby ..........69 Standby mode ........73 Status LEDs ........... 65 Sunlight ..........55 Switch on ..........68 System crash .........
