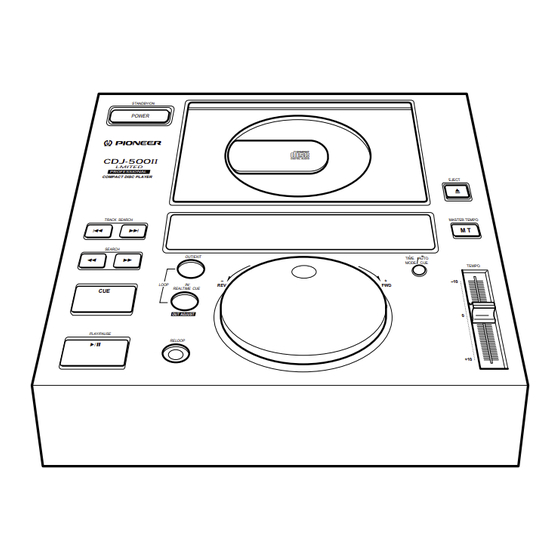

COMPACT DISC PLAYER
STANDBY/ON
POWER
D
CDJ-500II
LMITED
PROFESSIONAL
TRACK SEARCH
SEARCH
OUT/EXIT
LOOP
IN/
REALTIME CUE
OUT ADJUST
PLAY/PAUSE
RELOOP
Thank you for buying this Pioneer product.
Please read through these operating instructions so
you will know how to operate your model properly.
After you have finished reading the instructions, put
them away in a safe place for future reference.
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
[For Canadian model]
CAUTION:
TO PREVENT ELECTRIC SHOCK DO
NOT USE THIS (POLARIZED) PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
ATTENTION:
POUR PREVENIR LES CHOCS
ELECTRIQUES NE PAS UTILISER CETTE FICHE
POLARISEE AVEC UN PROLONGATEUR, UNE PRISE
DE COURANT OU UNE AUTRE SORTIE DE
COURANT, SAUF SI LES LAMES PEUVENT ETRE
INSEREES A FOND SANS EN LAISSER AUCUNE
PARTIE A DECOUVERT.
THE POWER SWITCH IS SECONDARY CONNECTED AND
THEREFORE DOES NOT SEPARATE THE UNIT FROM MAINS
POWER IN STANDBY POSITION.
R
'
EJECT
MASTER TEMPO
TIME
AUTO
/
MODE
CUE
TEMPO

Operating Instructions

CONTENTS
CAUTIONS REGARDING HANDLING ............... 4
FEATURES .......................................................... 5
CONNECTIONS................................................... 6
PANEL FACILITIES.............................................. 7
Top Panel ......................................................... 7
Display Window ............................................... 9
BASIC OPERATION .......................................... 10
Basic playback operation ................................ 10
To stop playback ............................................ 10
To pause playback temporarily ....................... 10
To search for a particular track ....................... 10
To search for a particular frame ..................... 11
Auto Cue function .......................................... 11
the auto cue function ..................................... 11
APPLICATION OPERATION ............................. 11
The setting of the cue point ........................... 11
Loop playback ................................................ 12
To stop the loop playback .............................. 12
Restarting Loop Playback ............................... 13
using two players ........................................... 13
Relay playback using two players .................. 13
MOUNTING RACK ............................................ 14
TROUBLESHOOTING ....................................... 15
SPECIFICATIONS ................................ Back cover
IMPORTANT NOTICE:
RECORD THE MODEL NUMBER AND SERIAL
NUMBER OF THIS EQUIPMENT BELOW. THE
NUMBERS ARE ON THE REAR PANEL.
MODEL NO. CDJ-500II
SERIAL NO.
KEEP THESE NUMBERS FOR FUTURE USE.
CAUTION:
This product satisfies FCC regulations when
shielded cables and connectors are used to connect the unit
to other equipment. To prevent electromagnetic interference
with electric appliances such as radios and televisions, use
shielded cables and connectors for connections.
'
1
<DRB1223>
En

Advertisement

Table of Contents
loading

Summary of Contents for Pioneer CDJ-500II

  • Page 1: Table Of Contents

    Auto Cue function .......... 11 Playback operation using the auto cue function ........11 APPLICATION OPERATION ......11 Thank you for buying this Pioneer product. The setting of the cue point ......11 Please read through these operating instructions so Loop playback ..........12 you will know how to operate your model properly.
  • Page 2: Safety Instructions

    DAMAGE REQUIRING SERVICE – The appliance supporting structure, grounding of the lead-in wire structions should be followed. should be serviced by a Pioneer authorized service to an antenna discharge unit, size of grounding center or qualified service personnel when: WATER AND MOISTURE – The appliance should not conductors, location of antenna discharge unit, ÷...
  • Page 3 CAUTION ÷ Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ÷ The use of optical instruments with this product will increase eye hazard. [For Canadian model] This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. [Pour le modèle Canadien] Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouileur du Canada.
  • Page 4: Cautions Regarding Handling

    ÷ Always read and abide by the precautionary notes listed an electrical shock. Check the power cord once in a while. When on disc labels. you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. <DRB1223>...
  • Page 5: Features

    FEATURES This CD player features the functions and operations (*1) Starting playback immediately of players used in disco halls in addition to the functions When the CD player is in playback standby (pause) mode, of general CD players. This player is made for the disc continues to rotate and the pick up jumps back to commercial use in disco halls, etc.
  • Page 6: Connections

    If you do the following things when the disc is spinning in the unit, the unit may malfunction. PIONEER DJM-500 or DJM-300 DJ mixer 1) Set the power switch to off, then on. 2) Disconnect the power cord, then connect again.
  • Page 7: Panel Facilities

    PANEL FACILITIES Top Panel Forced ejection hole In case the door cannot be opened by pressing the eject button due to a certain STANDBY/ON POWER reason, this unit is provided with a mechanism for opening the door manually. 1.Unplug the power cord from the CDJ-500 LIMITED PROFESSIONAL...
  • Page 8: Display Window

    PANEL FACILITIES [Cue point adjustment] LOOP IN/REALTIME CUE/OUT Press a SEARCH button (1, ¡) during cue standby ADJUST button initiates the sound-audible pause mode. Rotate the Press to designate the in point (start point) of loop jog dial to move the cue point and press the CUE playback.
  • Page 9: Display Window

    PANEL FACILITIES Display Window TRACK MASTER TEMPO TEMPO T I M E REMAIN È LOOP RELOOP AUTO CUE PLAYING ADDRESS Jog dial operation indicator ( 222 / TRACK number display 333 ) The track number being played is displayed. The indicator lights according to the rotating direction Time display (TIME/REMAIN) or speed of the Jog dial.
  • Page 10: Basic Operation

    BASIC OPERATION POWER switch STANDBY/ON POWER Door CDJ-500 LIMITED PROFESSIONAL COMPACT DISC PLAYER EJECT TRACK SEARCH EJECT button buttons MASTER TEMPO TRACK SEARCH TRACK MASTER TEMPO TEMPO T I M E REMAIN ¢ È SEARCH LOOP RELOOP PLAYING ADDRESS AUTO CUE TIME MODE SEARCH OUT/EXIT...
  • Page 11: To Search For A Particular Frame

    BASIC OPERATION Switching ON/OFF of the Auto Cue To search for a particular frame function [Using the Jog dial] Press PLAY/PAUSE during playback, and rotate the When the TIME MODE/AUTO CUE button is kept Jog dial in pause mode. pressed for more than 1 second, the Auto Cue function ÷...
  • Page 12: Loop Playback

    APPLICATION OPERATION ÷ When the CUE button is pressed during loop play, Checking the cue point ÷ To check the cue point, press the CUE button after the play position returns to the loop-in point (= cue point) and the unit stands by there. In this period, the cue point is memorized.
  • Page 13: Restarting Loop Playback

    APPLICATION OPERATION Restarting Loop Playback (example) To align selection B to selection A Even after loop playback, the loop-in point (start point) selection A and loop-out point (end point) remain in the memory. Loop playback can be restarted provided that the RELOOP indicator in the display window is lit.
  • Page 14: Controlling This Unit From A Dj Mixer

    Fix the sliding shelf to the player with the supplied screws and spacers. Caution for use of carrying case When the CDJ-500II is used in a carrying case, be careful for the following: ÷ During playback, use care so that the transportation cushions do not contact the player, power cord or audio cord;...
  • Page 15: Troubleshooting

    Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest PIONEER authorized service center or your dealer to carry out repair work.
  • Page 16: Specifications

    If the cause of trouble is unknown, remedy is too difficult or the same error code number is displayed after it is remedied, please contact your nearest PIONEER authorized service center and refer to the error code number.
