DVD/CD PLAYER
DVD-S35/S31
DVD / CD PLAYER
DVD-S35
DVD-RAM VIDEO PLAYBACK
OPEN/CLOSE
For error-free handling of your appliance, please read these
operating instructions carefully. Keep this manual for future
reference.
DOWN
ZOOM MODE
UP
Contents
page
2
3
4
5
6 - 7
8
9
10 - 14
11
15 - 19
20
21
22 - 23
24
25
26
27
28 - 29
30
31
last page
Advertisement
Table of Contents
Related Manuals for Panasonic DVD-S31
Summary of Contents for Panasonic DVD-S31
-
Page 1: Table Of Contents
DVD/CD PLAYER DVD-S35/S31 Operating Instructions Contents page Precautions Warning The DVD player The remote control unit Connections / batteries 6 - 7 Home cinema DVD-RAM VIDEO PLAYBACK DOWN ZOOM MODE Basic settings OPEN/CLOSE SETUP menu 10 - 14 DVD / CD PLAYER DVD-S35 Ratings General playback... -
Page 2: Operating Instructions
Precautions Dear customer Thank you for trusting and purchasing this high-quality product. Panasonic is one of the leading companies of the consumer electronics industry. We are sure that this DVD player will meet with all your expectations. Inside of product Tuotteen sisällä... -
Page 3: Warning
Warning SUOMI WARNING: VAROITUS: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA KOHTAAVAN DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, MUUN VAHINGON VÄHENTÄMISEKSI EI LAITETTA SAA ALTISTAA DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED SATEELLE, KOSTEUDELLE, VESIPISAROILLE TAI ROISKEELLE, WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE EIKÄ... -
Page 4: The Dvd Player

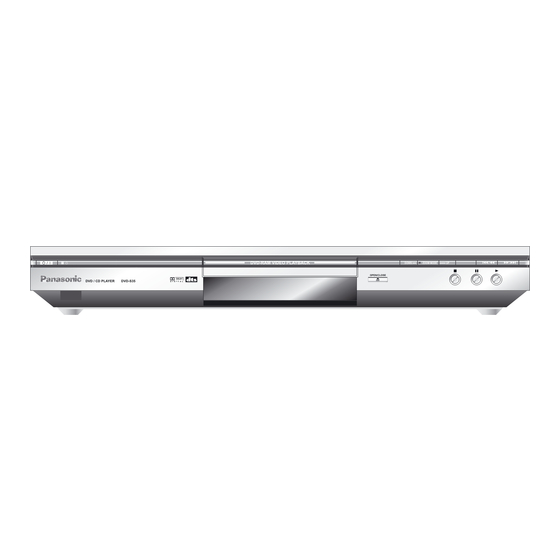

The DVD player DVD-RAM VIDEO PLAYBACK DOWN ZOOM MODE OPEN/CLOSE DVD / CD PLAYER DVD-S35 Stand-by/On switch Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. Stand-by indicator When the unit is connected to the AC mains supply, this indicator lights up in standby mode and goes out when the unit is turned on. -
Page 5: The Remote Control Unit
The remote control unit Page Switches on and off the DVD player from and back into stand-by mode OPEN/CLOSE SLEEP SETUP SLEEP Switches off the unit at the set time A.SRD SETUP Displays the SETUP menu (basic DVD player settings) 10-14 OPEN/CLOSE Opens and closes the disc tray... -
Page 6: Connections / Batteries
Before you make any connections Connections Verify that all devices to be connected up are unplugged from the AC mains. Read the operating instructions of your TV set. Attach the unit as illustrated on this page. Note on all connections shown Attach the unit directly to the TV set. - Page 7 Connections COMPONENT VIDEO OUT terminal Rear of TV set (example) The Component Video Out terminal separately outputs the colour difference signals COMPONENT VIDEO IN terminal AUDIO IN ( PB/PR ) and the brightness signal Y, thus providing for an enhanced resolution and colour response.
-
Page 8: Home Cinema
Home cinema Analogue connection ( AUDIO OUT ): To be able to hear sound in stereo or Dolby Pro Logic quality, attach an amplifier or an analogue audio component supporting these features. AUDIO IN Amplifier (example) Connect the analogue outputs ( L and R ) with a "Dolby Pro Logic amplifier", for example. White Attach the audio cables as shown on the illustrations. -
Page 9: Basic Settings
Basic settings QUICK SETUP When the appliance is properly connected press to switch on the unit. Press the SETUP button on your remote control unit to display the QUICK SETUP SETUP menu which allows you to make some basic settings. Navigate the user-friendly and QUICK SETUP clearly arranged on-screen menu by means of the cursor keys on the remote... -
Page 10: Setup Menu
SETUP menu Options of the SETUP menu The SETUP menu contains options concerning menu items " Disc ", " Video ", " Audio ", SETUP " Display " and " Others ". DISC Disc A clearly arranged on-screen menu guides you to and through the options. Audio English SETUP... -
Page 11: Ratings
SETUP menu Ratings Assign a rating to disallow the viewing of some scenes ( 1-7 ) or the entire DVD- Video disc ( 0 ). This feature is not supported by all DVD-Video discs. Ratings To select a rating ( factory setting is "8" ) No Limit When you select a rating between 0 and 7 you will be automatically prompted for a password. - Page 12 SETUP menu TV Aspect : The format of TV screens is either 4:3 (standard) or 16:9 (wide-screen). Choose the 16:9 format if your player is attached to a wide-screen TV set. If it is attached to a standard TV screen you can choose either 4:3 Pan&Scan SETUP or 4:3 Letterbox (see illustration): Video...
- Page 13 PCM Down Conversion : SETUP menu Pulse Code Modulation PCM is the standard method used to record digital music signals on audio CDs. DVD-Videos can be produced using the linear PCM method which is based on a sampling frequency of up to 96 kHz. SETUP For reasons of copyright protection, the digital output of PCM audio signals may be Audio...
-
Page 14: Setup Menu
SETUP menu Menu Language : Select a menu language as appropriate. On-Screen Messages : SETUP The TV screen displays the commands you give by pressing the buttons on the Display remote control unit. Select "Off" to suppress the display of on-screen commands. English Menu Language FL Dimmer :... -
Page 15: General Playback
General playback Preparation Switch on the TV set and set it to the video input that matches the connection between player and TV set. Playback DVD-V DVD-A JPEG The label opens the disc tray. OPEN/CLOSE must face Place the disc on the disc tray. PLAY closes the disc tray and automatically starts playing back the disc. - Page 16 General playback Scene replay DVD-V DVD-A JPEG QUICK REPLAY during playback. Every push of the button replays a couple of seconds of the current item; on a JPEG disc it will take you back a couple of pictures. However, you cannot go back to before the beginning of an item. QUICK REPLAY is not supported by all discs.
- Page 17 General playback Automatic switch-off DVD-V DVD-A JPEG This function allows you to specify a playback time ( e.g. 90 min. ) after which the unit is to automatically switch itself off. SLEEP , the SLEEP dialogue is output to the display and the TV screen. Repeatedly press the button to browse the settings: AUTO 60 min...
- Page 18 General playback DVD-V JPEG POSITION MEMORY DVD-A Use the Position Memory function if you wish to resume disc playback at a particular position. The position tag is retained when you change discs or when the unit goes into stand-by mode. You can tag and directly access up to 5 discs.
- Page 19 General playback ZOOM DVD-V DVD-A This function allows you to zoom into the picture to make better use of the available screen space. The setting can be changed via the remote control unit or the appliance. Preset Zoom Mode : 16:9 Standard 4:3 Standard ZOOM...
-
Page 20: Programme Play
Programme play Programme play DVD-V DVD-A You can programme up to 32 chapters/tracks to be played in any order. PLAY MODE in stop mode until the "PROGRAM" screen appears. Type in the numbers using the RC unit's numeric key pad. PROGRAM Choose a title and chapter, then press ENTER. -
Page 21: Other Functions
Other functions ADVANCED SURROUND DVD-V RAM With 2 or more audio channels only Produces an effect similar to surround sound at the two front speakers ( SP ) or the headphones ( HP ). A.SRD HP 1 SP 1 Repeatedly press the button to browse the settings. Press to toggle between SP and HP: HP 2... -
Page 22: On-Screen Displays
On-screen displays You can display on-screen information on disc and player ( OSD ) and manipulate various settings. Some DVD- discs do not support all of the settings. Please use the DVD menu instead. DISPLAY during playback Enables the on-screen display feature. Use the cursor keys to make or change various settings. -
Page 23: On-Screen Displays
On-screen displays DVD-V JPEG MP3/WMA DVD-A Playlist: see page 25 Picture: Displays the number and name of a picture you selected from a group. Type in the number to display a picture. Zoom: Zoom function ( see page 19 ). Bitrate Display: Displays the video image data rate per second ( Mbps ) ( S35 only ). -
Page 24: Jpeg
Your DVD player can output JPEG pictures ( Exif version 2.1 ) that were taken with JPEG a digital camera, for example, or generated by means of any other system. The resolution should range between 320 x 240 pixels and max. 6144 x 4096 pixels. Note that JPEG files must be extended by ".JPG", ".jpg", ".JPEG"... -
Page 25: Mp3/Wma/ Dvd-Ram Menu
MP3 / WMA menu WMA CD text MENU to display/quit the menu. ENTER to select a track. to expand the "Tree" ( table of contents; only S35 : CD text ). Group : NEW Tree MENU to select a group, ENTER to confirm your selection. -
Page 26: General Notes On Dvds
General notes on DVDs DVDs can contain titles and chapters that the producer of the disc put into a specific order. DVDs feature a Title menu that lists the available titles and chapters. However, you can choose to select and then play individual titles and chapters. DVD playback can be controlled and manipulated via the menu that the DVD player outputs to the TV screen. -
Page 27: Glossary Of Technical Terms
Glossary of technical terms As opposed to the digital processing method which only knows two states ( 1 or 0, on or off ), analogue Analogue: processes consist of a multitude of values at any range of infinitely variable steps. This multiplicity is faced by the limited range of possibilities of storing and reproducing the relevant information. -
Page 28: Before Requesting Service
Before requesting service GENERAL PROBLEMS Certain control operations are not available with some discs. The player does not respond Interference caused by lightning or static charge. Press [ ] to put the player into stand-by mode. to function key commands: Restart the player. - Page 29 Before requesting service AUDIO PROBLEMS There is no audio output and Check the connections. the sound is distorted: Deactivate the ADVANCED SURROUND effect. Go to the SETUP screen and check the Audio menu settings of "Dolby Digital","DTS Digital The loudspeakers emit Surround"...
-
Page 30: Information / Language Codes
This product features a copyright protection implement whose technology is protected by US Information patents and intellectual property rights owned by Macrovision Corporation and other copyright proprietors. The use of this copyright protection implement is subject to permission of Macrovision Corporation and is restricted to purely private use only. -
Page 31: Specifications
Specifications Disc formats S35 / S31 DVD-Video DVD-R SVCD Video-CD CD-R/RW DVD-Audio DVD-RAM DIGITAL AUDIO AUDIO R A M SUPER VIDEO R4.7 TEXT R A M 4.7 DIGITAL AUDIO DVD-V DVD-A JPEG It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM in all cases due to the type of disc or condition of the recording. -
Page 32: Index
Programme play Frame-by-frame Progress Indicator Matsushita Electric Industrial Co., Ltd. http://www.panasonic.co.jp/global/ This equipment complies with European conformity requirements, in accordance with the conditions of electromagnetic compatibility and product safety. This equipment complies with the requirements of protection class 2. This equipment complies with the safety requirements of SEMKO.
