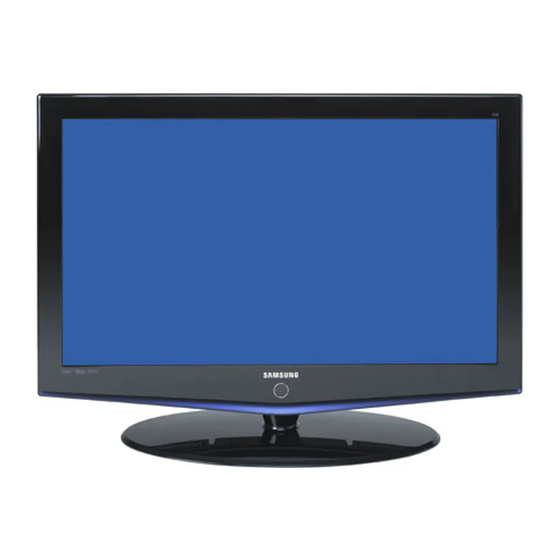

Samsung LA26R7 Owner's Instructions Manual

Samsung lcd tv
Hide thumbs Also See for LA26R7:
Table of Contents

Advertisement

Quick Links

Contact SAMSUNG WORLD-WIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care centre.
Samsung Electronics Australia
7 Parkview Drive, Homebush Bay NSW 2127
1300 362 603
www.samsung.com/au
BN68-01096A-00
Owner's Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ON-SCREEN MENUS
PC DISPLAY
PICTURE IN PICTURE (PIP)
TELETEXT
Register your product at www.samsung.com/global/register
LCD TV
LA26R7
LA32R7
LA37R7
LA40R7

Advertisement

Table of Contents
loading

Related Manuals for Samsung LA26R7

Summary of Contents for Samsung LA26R7

  • Page 1 LCD TV LA26R7 LA32R7 Contact SAMSUNG WORLD-WIDE LA37R7 If you have any questions or comments relating to Samsung products, LA40R7 please contact the SAMSUNG customer care centre. Samsung Electronics Australia 7 Parkview Drive, Homebush Bay NSW 2127 1300 362 603 www.samsung.com/au...
  • Page 2 • Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. © 2006 Samsung Electronics Co., Ltd. All rights reserved.

  • Page 3: Table Of Contents

    Contents CONNECTING AND PREPARING YOUR TV SETTING THE OTHERS List of Parts ......................2 Using Game Mode ................. 19 Installing the Stand ..................2 Setting the Blue Screen Mode / Installing the Wall Mount Kit ..............2 Selecting the Melody ................19 Viewing the Control Panel .................3 Using the Energy Saving Feature .............

  • Page 4: List Of Parts

    Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

  • Page 5: Viewing The Control Panel

    Viewing the Control Panel The product colour and shape may vary depending on the model. SOURCE Toggles between all the available input sources (TV, AV1, AV2, Press to change channels. S-Video, Component1, Component2, PC, HDMI, DTV). In the In the on-screen menu, use the buttons on-screen menu, use this button as you use the ENTER as you use the...

  • Page 6: Viewing The Connection Panel

    Viewing the Connection Panel [Side Panel Jacks] [Rear Panel Jacks] (26 inch model does not (32 inch/37 inch/40 inch) have the side panel jacks.) Power Input [Rear Panel Jacks] (26 inch) Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable.
  • Page 7 Connecting an Aerial or Cable Television Network To view television channels correctly, a signal must be received by the set from one of the following sources: - An outdoor aerial / A cable television network / A satellite network Connecting HDMI/DVI - Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and digital TVs).

  • Page 8: Viewing The Remote Control

    Viewing the Remote Control Selects a target device to be P : Next channel controlled by the Samsung remote control P : Previous channel (TV, DVD, STB, CABLE, VCR) Exit the OSD (Refer to page 33~37) Control the cursor in the menu...

  • Page 9: Switching On And Off

    Switching On and Off The mains lead is attached to the rear of your set. Plug the mains lead into an appropriate socket. The standby indicator lights up on the front of the set. Press the button on the front of the set. You also can press the POWER button or the TV/DTV button on the remote control to turn the TV on.

  • Page 10: Storing Channels Automatically

    If you want to reset this feature... 1. Press the MENU button to display the menu. Press the button to select “Setup”, then press the ENTER button. 2. Press the ENTER button again, to select “Plug & Play”. 3. The message to “Start Plug & Play” is displayed. - Storing Channels Automatically - Storing Channels Manually Storing Channels Automatically...

  • Page 11: Setting The Channel Manager

    Press the button to select “Colour System”, then press the ENTER button. Select the colour standard required by pressing the button then, press the ENTER button. Press the button to select “Sound System”, then press the ENTER button. Select the sound standard required by pressing the button, then press the ENTER button.

  • Page 12: Activating The Child Lock

    Activating the Child Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio. Child Lock cannot be released using the buttons on the side. Only the remote control can release the Child Lock setting, so keep the remote control away from children.

  • Page 13: Assigning Channels Names

    Assigning Channels Names Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names. Press the MENU button to display the menu. Press the button to select “Channel”, then press the ENTER button. Press the button to select “Name”, then press the ENTER button.

  • Page 14: Lna (Low Noise Amplifier)

    LNA (Low Noise Amplifier) If the TV is operating in a weak-signal area, the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal). 1. Press the MENU button to display the menu. Press the button to select "Channel", then press the ENTER button. 2.

  • Page 15: Changing The Colour Tone

    Changing the Colour Tone You can select the most comfortable colour tone to your eyes. To select the desired picture effect, follow the “Changing the Picture Standard” instructions number 1 to 3 on page 12. Press the button to select “Colour Tone”, then press the ENTER button. Press the button to select the desired colour tone setting.

  • Page 16: Digital Noise Reduction

    4. Press the EXIT button to exit. DNIe Demo (Digital Natural Image engine) Samsung’s new technology brings you more detailed images with contrast and white enhancement. A new image compensation algorithm gives viewers brighter and clearer images. DNIe technology will match every signal to your eyes. You can see how DNIe improves the picture by setting DNIe Demo mode to On.

  • Page 17: Changing The Sound Standard

    8. Press the button to select “Programme” and then press the ENTER button. You can select the channel that you want to view through sub picture by pressing the button. Press the ENTER button. The “Programme” can be active when the sub picture is set to TV. 9.

  • Page 18: Connecting Headphones

    Connecting Headphones You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room. When you insert the head set jack into the corresponding port, you can operate only "Internal Mute" and "Sound Select" (in PIP mode) in Sound menu. Prolonged use of headphones at a high volume may damage your hearing.

  • Page 19: Listening To The Sound Of The Sub Picture

    Listening to the Sound of the Sub Picture During the PIP features activation, you can listen to the sound of the sub picture. 1. Press the MENU button to display the menu. Press the button to select “Sound”, then press the ENTER button. 2.

  • Page 20: Setting The Sleep Timer

    Setting the Sleep Timer You can select a time period of between 30 and 180 minutes after which the television auto- matically switches to standby mode. 1. Press the MENU button to display the menu. Press the button to select “Setup”, then press the ENTER button. 2.

  • Page 21: Using Game Mode

    Using Game Mode When connecting to a game console such as PlayStation or Xbox you can enjoy a more realistic gaming experience by selecting game menu. 1. Press the MENU button to display the menu. Press the button to select “Setup”, then press the ENTER button.

  • Page 22: Using The Energy Saving Feature

    Using the Energy Saving Feature This function adjusts the brightness of the TV so as to reduce power consumption. When you watching TV at night, set the "Energy Saving " mode option to "High" so as to reduce the dazzling of your eyes as well as the power consumption. Press the MENU button to display the on-screen menu.

  • Page 23: Previewing The Dtv Menu System

    Previewing the DTV Menu System To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration. Available in the Digital TV mode. Press the D.MENU button. Guide Now & Next Guide Full Guide Scheduled List Default Guide...

  • Page 24: Updating The Channel List Manually

    Updating the Channel List Manually You can specify the channel or frequency for a fast channel search. Press the D.MENU button to display the DTV menu. Press the button to select "Channel", then press the ENTER button. Press the button to select "Manual Store", then press the ENTER button. To...

  • Page 25: Selecting Channel Manager

    Move Press the D.MENU button to display the DTV menu. Press the button to select "Channel", then press the ENTER button. Press the button to select "Edit Favourite Channels", then press the ENTER button. Select the required channel using the button.

  • Page 26: Displaying Programme Information

    Displaying Programme Information While viewing a channel, additional information about the current programme may be displayed. While viewing a programme, press the INFO button. The programme information is displayed. To exit from banner information, press the INFO button. Viewing the EPG (Electronic Programme Guide) Information The EPG (Electronic Programme Guide) information is provided by the broadcasters.

  • Page 27: Using The Scheduled List

    Using the Scheduled List If you make a scheduled viewing list of programs you may like to see, the channel will be automatically switched to the scheduled program at the scheduled time even if you are watching another program. Press the D.MENU button to display the DTV menu. Press the ENTER button, to select "Guide".

  • Page 28: Viewing All Channels And Favourite Channels

    Viewing All Channels and Favourite Channels In the EPG menu, you can display all channels or favourite channels. Press the D.MENU button to display the DTV menu. Press the ENTER button again, to select "Guide". Select the your required guide ("Now & Next Guide" or "Full Guide") by pressing the button.

  • Page 29: Setting Up The Parental Lock

    Setting up the Parental Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit PIN (Personal Identification Number) code that is defined by the user. The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).

  • Page 30: Selecting The Preferred Language (Subtitle Or Audio)

    ENTER button to change the setting. Press the EXIT button to exit. Viewing Product Information You can view your product information. For service or repair, please contact a Samsung approved dealer. Press the D.MENU button to display the DTV menu.

  • Page 31: Checking The Signal Information

    Checking the Signal Information You can get information about the signal status. Press the D.MENU button to display the DTV menu. Press the button to select "System", then press the ENTER button. Press the button to select "Signal Information", then press the ENTER button. Press the EXIT button to exit.

  • Page 32: Selecting The Time Zone

    Selecting the Time Zone Select the time zone where locate Press the D.MENU button. Press the button to select System. Press the button to select Time Zone. Select the time zone where you locate by pressing the button. Press the ENTER button. The following options are available.

  • Page 33: Teletext Decoder

    Teletext Decoder Most set channels carry “ teletext ”, pages of written information that provide information such as: Television programme times. News bulletins and Weather forecasts. Sports results. Subtitles for the hard of hearing. The teletext pages are organized according to six categories: Part Contents Selected page number.

  • Page 34: Selecting A Specific Teletext Page

    Selecting a Specific Teletext Page Press the number buttons on the remote control to enter the page number directly: 1. Enter the three-digit page number listed in the contents by pressing the corresponding numeric buttons. 2. If the selected page is linked with several secondary pages, the secondary pages are dis played in sequence.

  • Page 35: Setting Up Your Remote Control

    Setting Up Your Remote Control After it has been set up properly, your remote control can operate in five different modes: TV, DVD, Cable, Set-Top Box, VCR. Pressing the corresponding button on the remote control allows you to switch between these modes, and control whichever piece of equipment you choose.
  • Page 36 Setting Up the Remote to Operate Your DVD Turn off your DVD. Press the DVD button on your TV’s remote control. Press the SET button on your TV’s remote control. Using the number buttons on your remote control, enter three digits of the DVD code listed on page 36~37 of this manual for your brand of DVD.

  • Page 37: Remote Control Codes

    Remote Control Codes Brand Code Brand Code SAMSUNG 000 001 002 003 004 005 077 078 079 MONTGOMERY WARD ADMIRAL 002 025 AIWA MULTITECH 002 005 025 038 AKAI 004 027 032 007 008 018 026 037 062 064 AUDIO DYNAMICS...

  • Page 38: Cable Box

    VIEWSTAR 019 021 023 028 PIONEER 004 018 020 044 WARNER AMEX 014 022 040 ZENITH 017 029 035 037 045 REGAL SAMSUNG DVD Product Code Product Code 000 001 002 Home Theater VCR COMBO 014 015 016 DVDR 003 004...
  • Page 39 032 063 SHARP YAMAKAWA 040 073 SANSUI XWAVE SANYO 062 090 ZENITH 076 121 SHINSONIC SAMSUNG SET-TOP BOX Product Code Product Code Ground wave STB 001 002 Satellite STB HDD COMBO Premium Satellite STB CABLE STB HDD COMBO Standard CABLE STB...

  • Page 40: Setting Up Your Pc Software (Based On Windows Xp)

    Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) 1. First, click on “Control Panel” on the Windows start menu.

  • Page 41: Setting The Pc

    Setting the PC Coarse and Fine Tuning of the Image (Image Lock): The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of screen.

  • Page 42: Using The Anti-Theft Kensington Lock

    Using the Anti-Theft Kensington Lock The Kensington lock is a device used to physically fix the system when using it in a public place. The locking device has to be purchased separately. The appearance and locking method may differ from the illustration depending on the manufacturer.

  • Page 43: Technical And Environmental Specifications

    Technical and Environmental Specifications Model Name LA26R7 LA32R7 Screen Size (Diagonal) 26 inch 32 inch Power Supply AC 220-240 V 50 Hz AC 220-240 V 50 Hz Power Consumption 120 W 152 W PC Resolution 1360 x 768 @ 60 Hz...
  • Page 44 This page is intentionally left blank.

This manual is also suitable for:

La32r7La37r7La40r7
