Summary of Contents for Hans Grohe Starck 10011XX1

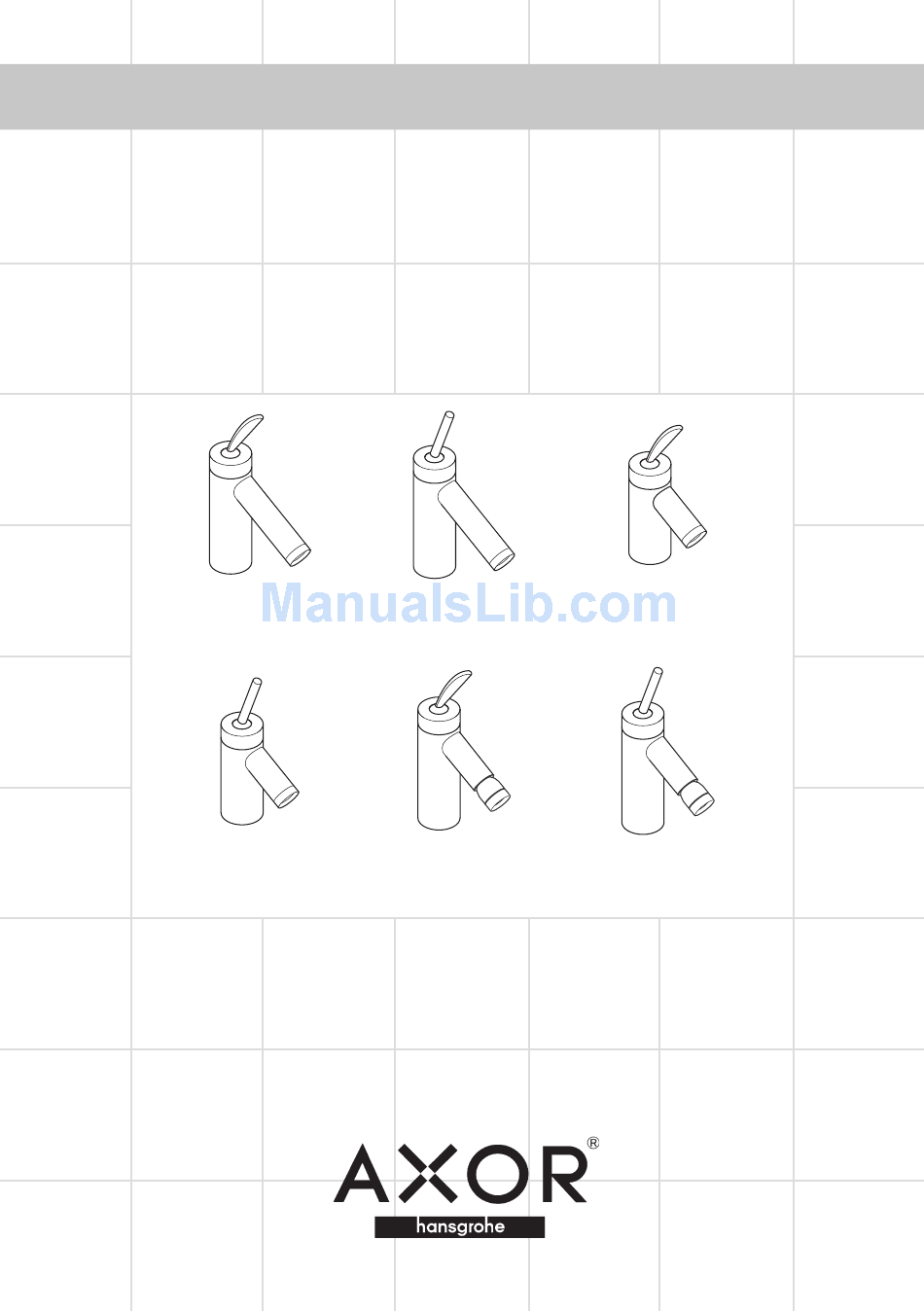

- Page 1 Installation Instructions / Warranty Starck 10010XX1 Starck 10016XX1 Starck Starck 10011XX1 10015XX1 Starck Starck 10200XX1 10201XX1...
- Page 2 Starck single lever lavatory mixer 10010XX1 Starck single lever basin mixer 10015XX1 Starck single lever bidet mixer 10200XX1 Starck single lever lavatory mixer 10011XX1 Starck single lever basin mixer 10016XX1 Starck single lever bidet mixer 10201XX1...
-
Page 3: Spare Parts
Spare parts flange handle Starck handle Starck Puro cartridge aerator pull rod tube fixing set XXX = Color Code 000 chrome 810 satinox ® 96427XXX 10090XXX 10092XXX 96339000 94005XXX 94006XXX 30668710 94701000... -
Page 4: Operation
Assembly 1. Flush pipe lines thoroughly. 2. Place the mixer including the sealing washer in position on the basin. 3. Slip the fixation piece including the washer over the threaded pin and tighten the nut. 4. Connect the supply pipes to the supply valves: hot-left;... - Page 5 Install the pop-up drain • Remove the plunger assembly. • Unscrew the drain outlet flange from the tee. • Unscrew the tailpiece from the tee. Wrap the threads with plumbers’ thread tape and replace. • Install the white, flexible sealing gasket to the flange.
-
Page 6: Cleaning Procedures
Cleaning Recommendation for Hansgrohe Products Modern faucetry and shower products utilize a combination of materials to comply with the needs of the market with regard to design and functionality. To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not covered under the Hansgrohe warranty. -
Page 7: Limited Lifetime Consumer Warranty
Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. („Hansgrohe“). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original consumer purchaser only. -
Page 8: To Obtain Warranty Service
TO OBTAIN WARRANTY SERVICE Contact your Hansgrohe retailer, or write to Technical Service at: Hansgrohe Inc. 1492 Bluegrass Lakes Parkway Alpharetta GA 30004 Or, call Hansgrohe toll-free at (800) 334-0455. In requesting warranty service, you will need to provide The sales receipt or other evidence of the date and place of purchase. A description of the problem.
