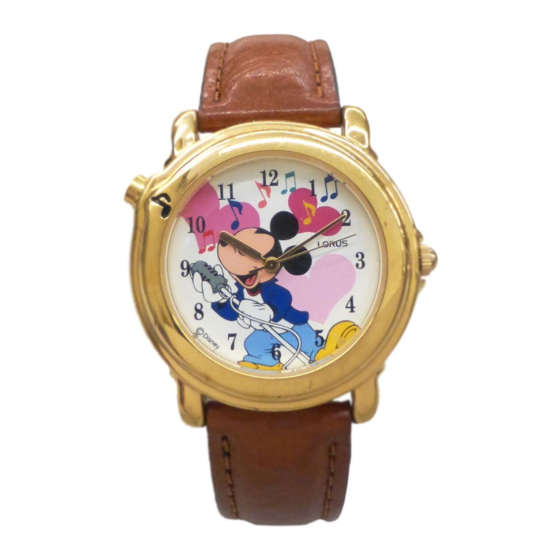

LORUS V52Z Instruction Manual

NREV52ZC
I
NSTRUCTION
CAL. V52Y (R23 SERIES)
CAL. V52Z (R23 SERIES)
C H A R A C T E R I S T I C S
1 . T i m e : Indicated by the hour, minute and
second hands.
2 . M e l o d y f u n c t i o n : The music plays with
a press of the Melody button.
3 . L O R U S L I T E ( C a l . V 5 2 Y ) :
electroluminescent light evenly illuminates
the dial in the dark.
D I S P L A Y A N D C R O W N / B U T T O N
O P E R A T I O N
[ C a l . V 5 2 Z ]
Hour hand
Me lo dy
12
11
button
10
9
8
7
6
Second hand
C r o w n : Setting the time at the first click.
M e l o d y b u t t o n : Start and stop of the music.
[ C a l . V 5 2 Y ]
Hour hand
M e l od y
12
11
button
10
9
8
L i g h t
7
6
button
Second hand
C r o w n : Setting the time at the first click.
M e l o d y b u t t o n : Start and stop of the music.
L i g h t b u t t o n : Illuminating the dial.
H O W T O S E T T H E T I M E
12
11
10
9
8
7
6
05-96
M
ANUAL
T h e
Minute hand
1
2
Cro wn
3
4
F irs t
5
click
No rmal
p o s itio n
Minute hand
1
2
Cro wn
3
4
F irs t
5
click
No rmal
po s it io n
1
2
Cro wn
3
4
5
First click
1 . Pull out the crown to the first click when
the second hand is at the 12 o'clock position.
The second hand will stop on the spot.
2 . T u r n t h e c r o w n c l o c k w i s e o r c o u n t e r -
clockwise to set the hour and minute hands
to the desired time.
* When setting the minute hand, first advance
i t 4 t o 5 m i n u t e s a h e a d o f t h e d e s i r e d
t i m e a n d t h e n t u r n i t b a c k t o t h e e x a c t
min u te.
3 . Push the crown back into the normal position
in accordance with a time signal.

HOW TO USE THE MUSIC FUNCTION

12
11
Melod y
10
button
9
8
7
6
•
T o s t a r t t h e m u s i c
Press the Melody button with the crown at
the normal position. Music starts playing
and will automatically stop at its end.
•
T o s t o p t h e m u s i c
Press the Melody button once again.
N o t e : T h e d u r a t i o n o f t h e m u s i c d i f f e r s
d e p e n d i n g o n t h e m u s i c p l a y e d .
L I S T O F M U S I C
T h e m u s i c p l a y e d d i f f e r s d e p e n d i n g o n t h e
mod el.
• It's A Small World
©1963 Wonderland Music Co., Inc.
• Mickey Mouse March
©1955 Walt Disney Music Company
L O R U S L I T E ( O n l y f o r C a l . V 5 2 Y )
W h i l e t h e L i g h t b u t t o n i s k e p t p r e s s e d , t h e
e l e c t r o l u m i n e s c e n t l i g h t e v e n l y i l l u m i n a t e s
the entire watch dial for easy viewing in the
d a r k .
12
11
10
9
L i g h t
8
button
7
6
N o t e : W h e n t h e e l e c t r o l u m i n e s c e n t l i g h t
b e g i n s t o l o s e i t s l u m i n a n c e , t h i s i s
an indication that the battery is depleted.
In this case, we recommend that you
c h a n g e t h e b a t t e r y w i t h a n e w o n e .
