LORUS R23 Series Instruction Manual

NREZ016F
■ C H A R AC T E R I ST I C S
1. Digital time displays: Hour, Minute, Second,
Month, Date and day of the week.
2. Daily alarm: The alarm can be set to sound at
the designated time on a 24-hour basis.
3. Chime: The chime can be set to sound every
hour on the hour with a single beep.
4. S to p wa t ch : T h e s t o p w a t c h c a n m e a s u re
up to 23 hours 59 minutes and 59 seconds in
1/100-second increments for the first first 39
minutes and 59. 99 seconds, and in 1-second
increments thereafter. Lap time measurement
is available.
5. I l l u m i n a t i n g l i g h t :
luminescent (EL) backlight illuminates the
display for easy viewing in darkness.

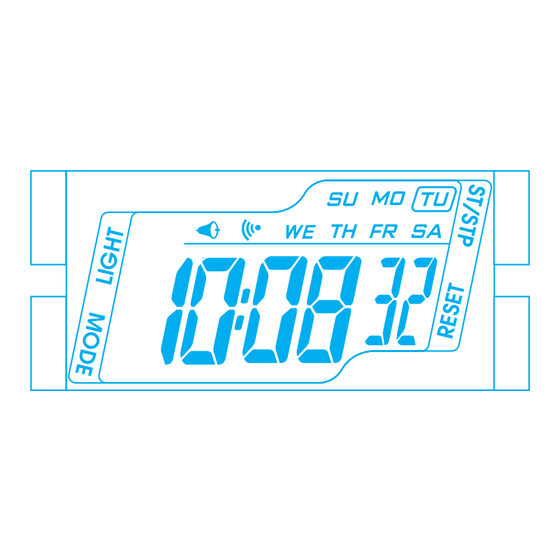

■ D I S P L AY A N D B U TTO N O P E R AT I O N
C H I M E
L i g h t
S I G N A L
S4
A F T E R -
N O O N
M o d e
S3
M I N U T E S
H O U R S
* Press and hold Button S3 for 3 seconds to show
the ALARM TIME.
* Press and hold Button S1 to show the MONTH/
DATE or DATE/MONTH. Release Button S1 to re-
turn to the NORMAL TIME display.
* Press Button S3 at any time to return to the NOR-
MAL TIME display.
■ H OW TO S E T N O R M A L T I M E
1. From NORMAL TIME display, press and hold But-
ton S3 for 3 seconds to show the ALARM TIME
display.
2. Press Button S3 again to set the time and cal-
endar. The second digits start flashing.
3. Press Button S2 to set the second digits to "00."
* When the second digits count any number
from " 30" to " 59," one minute is added.
4. Press Button S1 to move on to minutes setting.
The minute digits start flashing.
* Selection of the digits to be adjusted (flashing)
is made in the order below by pressing Button
S1 and then pressing Button S2 to be set.
* One digit (flashing) is increased with each
pressing of Button S2. To move the digits quick-
ly, keep the Button pressed.
5. After all adjustments are completed, press
ton S3 to return to the NORMAL TIME display.
P
S3
NORMAL TIME
S3
PRESS
P
PRESS
DAY OF WEEK
S2
SETTING
PRESS
S1
P
PRESS
MONTH
S2
SETTING
PRESS
S1
P
PRESS
DATE
SETTING
S2
PRESS
S1
■ H OW TO U S E E L B AC K L I G H T
* In NORMAL TIME display, press Button S4 to
illuminate the display for approximately 3 sec-
onds.
PRESS
S4
P
Note:
1. If your watch is not equipped with Button S4,
this function is not available.
2. The backlight of the watch employs an elec-
tro-luminescent (EL) light, which tends to lose
illuminating power after very long use.
3. The illumination provided by backlight may be
hard to see when viewed under direct sunlight.
* When the illuminating light becomes dim, re-
place the batteries with new ones.
11-2024
CAL. Z016 (R23 SERIES)
T h e b u i l t - i n e l e c t r o -
DAY O F
T H E W E E K
A L A R M
S I G N A L
S t a rt / S to p
S1
S e t
S2
S E C O N D S
But-
S1
S2
PRESS
S3
AND
HOLD
P
A L A R M
PRESS
S3
P
PRESS
SECONDS
SETTING
S2
PRESS
S1
P
PRESS
MINUTES
S2
SETTING
PRESS
S1
P
PRESS
HOURS
S2
SETTING
■ H OW TO S W I T C H 1 2 - H O U R / 2 4 - H O U R
F O R M AT
S1
PRESS AND HOLD
OR
12 HOUR
AFTER-
NOON
P
S3
24 HOUR
P
1. Press and hold Button S1 or S2. Then press But-
ton S3 to switch the display.
* The time display format in either 12-hour indi-
cation or in 24-hour indication can be selected
alternately.
* Under the 12-hour indication format, "P" mark
appears in the after noon, but no AM mar k
appears in the mor ning. Under the 24-hour
indication format, no mark appears on the dis-
play.
■ H OW TO D I S P L AY M O N T H / DAT E
1. From NORMAL TIME display, press and hold
Button S1 to show the MONTH/DATE display.
2. While keeping Button S1 pressed, press Button
S2 to switch to the DATE/MONTH display.
3. Press Button S2 again to switch back to the
MONTH/DATE display.
* The display format in either DATE/MONTH in-
dication or in MONTH/DATE indication can be
selected alternately by pressing Button S2.
P
NORMAL TIME
PRESS
S2
P
DAT E / M O N T H
■ H OW TO S E T A L A R M T I M E
P
S3
NORMAL TIME
S3
PRESS
P
PRESS
PRESS
MINUTES
SETTING
S2
1. From NORMAL TIME display, press and hold
Button S3 for 3 seconds to show the ALARM
TIME display. The hour digits start flashing.
2. Press Button S2 to set hour digits.
3. Press Button S1 to move on to minutes setting.
4. Press Button S2 to set minute digits setting.
5. After all settings are completed, press Button
S3 to return to the NORMAL TIME display.
Engagement/Disengagement of ALARM &
CHIME
* Press and hold Button S2, and then press But-
ton S1, the ALARM and CHIME can be en-
gaged or disengaged in the order below.
* The ALARM signal and/or CHIME signal appear
or disappear on the display accordingly.
NORMAL TIME
A L A R M
C H I M E
S I G N A L
S I G N A L
P
A L A R M &
C H I M E O N
PRESS
S1
CHIME ON
ALARM ON
PRESS AND
S2
HOLD
P
C H I M E O N
CHIME
ON
PRESS
S1
PRESS AND
HOLD
P
S2
A L A R M & C H I M E
O F F
How to stop the alarm while sounding
The alarm sounds for 20 seconds at the designat-
ed time. To stop it manually while sounding, press
Button S2.
S3
S2
PRESS
S1
S2
S1
S2
PRESS AND
S1
HOLD
P
M O N T H / DAT E
S2
PRESS
S1
S2
PRESS
S3
AND
HOLD
P
A L A R M M O D E
PRESS
HOURS
SETTING S2
S1
S1
S2
PRESS
S2
AND
HOLD
A L A R M
P
PRESS
CHIME
S1
OFF
P
C H I M E O F F
PRESS AND
HOLD
S2
PRESS
S1
ALARM
OFF
