Hardware Installation - Axis OfficeBasic USB Wireless User Manual

Hardware Installation

1. Turn off the printer's power.
2. Connect the print server to your printer with the supplied USB
cable.
3. Turn the printer's power on.
4. Plug the AC power adapter into the power connector on the
backside of the wireless print server.
5. Wait 1 minute.
6. Press the print server's external Reset button for 5 seconds. A
test page will be printed on the connected printer, displaying
information about the print server's IP address, firmware
number, etc.
• The Status LED will flicker when data is being transmitted and
printed.
• When the print server is powered on, the Status LED will flash 5
times as part of the unit's Power On Self Test (POST). If the LED
doesn't flash 5 times when you power on the unit, disconnect all
cables and repeat the installation procedure described here.

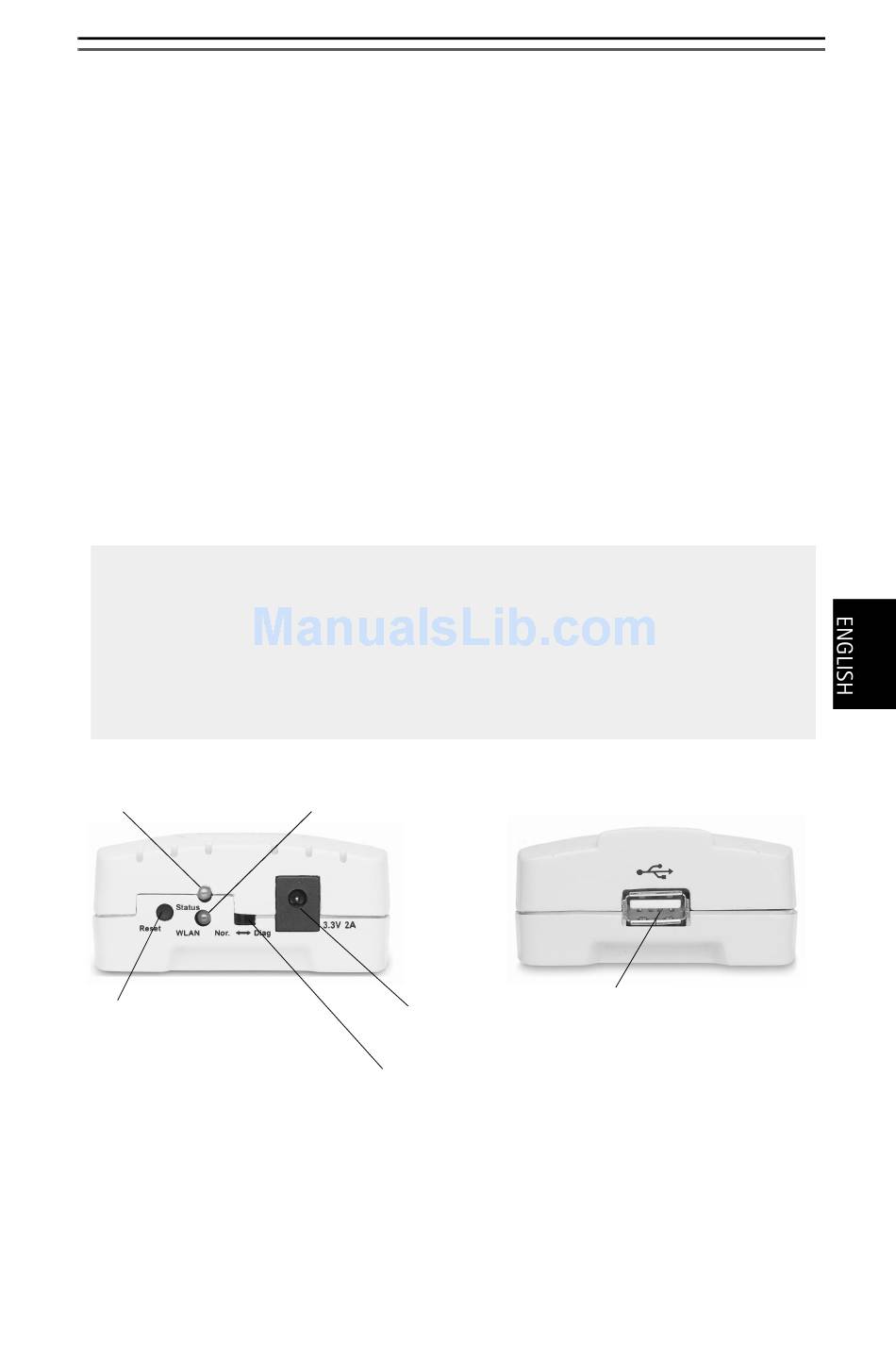

Status LED (orange)
Reset button:
- Press once to restart print server.
- Press 5 seconds to print test page.
See Print Server Management Using the Reset Button, on page 21 for
detailed instructions on using the reset button.
WLAN LED (green)
Power connector
DIP switch:
Nor. = Normal mode
Diag. = Diagnostic Mode
6
USB Connector
