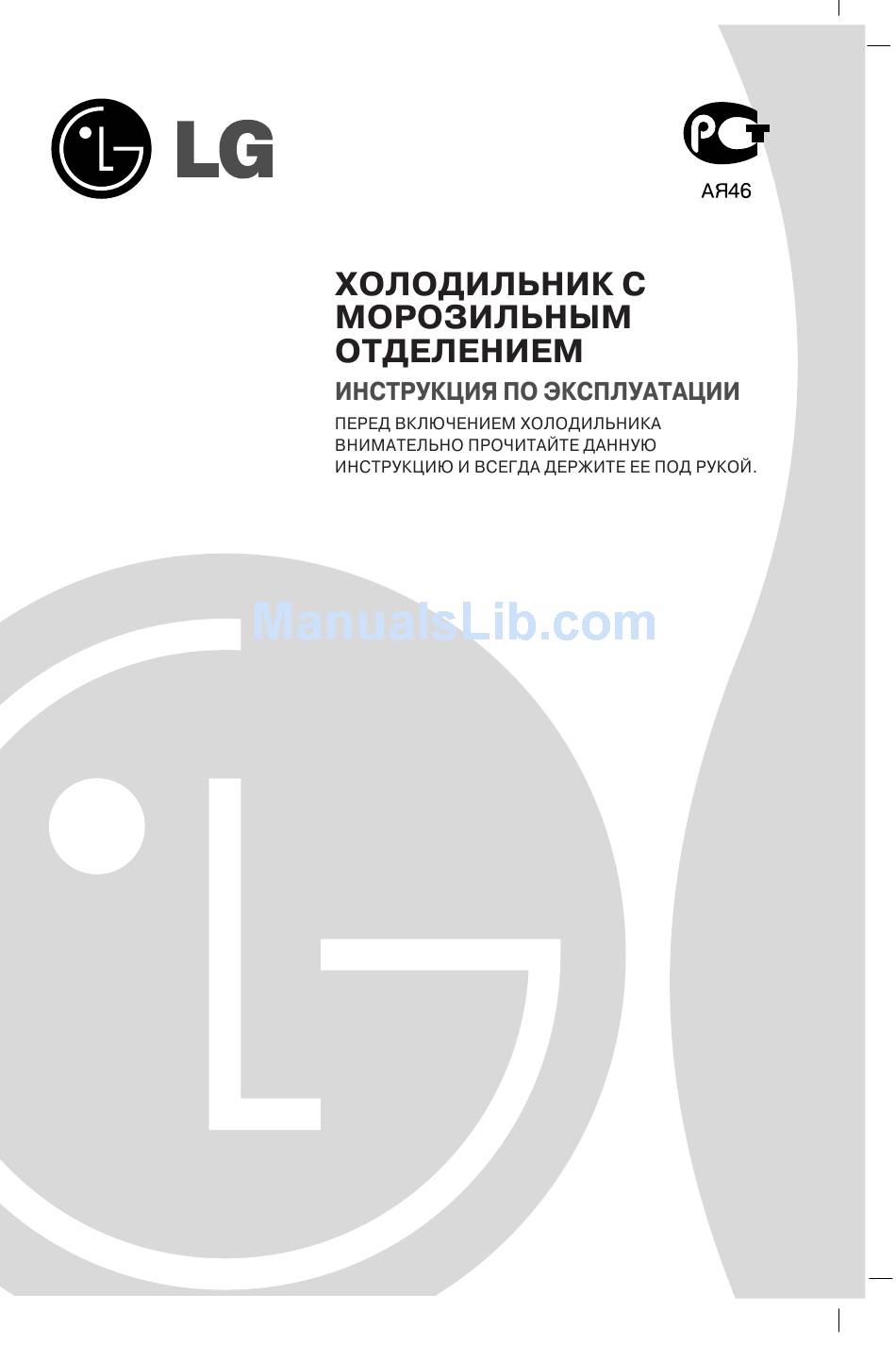

REFRIGERATOR-
FREEZER
OWNER'S MANUAL
PLEASE
READ THIS OWNER'S MANUAL THOROUGHLY
BEFORE OPERATING AND KEEP IT HANDY FOR
REFERENCE AT ALL TIMES.

Advertisement

loading

  Summary of Contents for LG Refrigerator-Freezer

  • Page 1 REFRIGERATOR- FREEZER OWNER'S MANUAL PLEASE READ THIS OWNER'S MANUAL THOROUGHLY BEFORE OPERATING AND KEEP IT HANDY FOR REFERENCE AT ALL TIMES.
  • Page 2: Table Of Contents

    Table of Contents Introduction Registration Important Safety Instruction Identification of Parts Installation Installation Starting Temperature Control Operation Display Panel For Temperature Control Opti Fresh Zone Super Freezer Vacation Self Test Lock Door Alarm Ice Making Defrosting Half Shelf Wine Rack Suggestion On Storing Food Food storage...
  • Page 3: Introduction

    Introduction Registration Introduction The model and serial number are found on the rear of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
  • Page 4 Introduction Important Safety Instruction w w Warning • This fridge-freezer must be properly installed and Precaution located in accordance with the Installation Instruction before it is used. • Never unplug your fridge-freezer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.
  • Page 5 It will cause electric shock or fire. Do not modify or extend the Power Cord length The supply plug of the refrigerator-freezer should be Accessibility of placed in easy accessible position for quick disconnection Supply Plug in emergency. If the supply cord is damaged, it must be replaced by the...
  • Page 6 Introduction Important Safety Instruction w w Warning w w Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. w w Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Page 7 Introduction Important Safety Instruction • If the wall socket is loose, do not insert the power w w Caution plug. It may cause electric shock or fire. • Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.
  • Page 8: Identification Of Parts

    Introduction Identification of Parts airy Corner Lamp Jet Cooling (Optional) Egg Tary Glass Shelf Wine Rack oor Basket (Optional) Glass Shelf Guide Bottle Big airy Corner (Optional) oor Basket Glass Shelf eodorizer Guide Bottle (Optional) oor Basket Vitamin kit Vegetable rawer Opti Fresh Zone (Optional) Ice Tray...
  • Page 9: Installation

    Installation Installation Select a good location. Place your fridge-freezer where it is easy to use. Avoid placing the unit near heat sources, direct sunlight or moisture. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
  • Page 10: Operation

    Operation Temperature Control Your fridge-freezer has controls that let you regulate the temperature in the fridge and freezer compartments. Display Panel For Temperature Control Adjusting the temperatures and functions < Exterior Type 1 > ON/OFF Power Button Vacation Button Temperature Adjustment Button for Super Freezer Button Opti Fresh Zone Compartment Temperature Adjustment Button for...
  • Page 11 Operation How to adjust the • The initial Temperature of the Freezer and Refrigerator temperature in the Compartment is -21°C and 4°C respectively. You can now refrigerator and adjust the temperature of the compartments as you want. freezer compartment Exterior Type 1 > •...
  • Page 12: Opti Fresh Zone

    Operation Opti Fresh Zone • By pressing the button, store meat (at relatively low Temperature conservation temperature) or other types of food to be defrosted ,raw fish,etc... Transition Corner (Optional) The temperature of the Opti fresh zone’s compartment is always okay. Method to use •...
  • Page 13: Super Freezer

    Operation Super Feezer • Please select this function for prompt freezer. • This function is used when you want to freeze the foods quickly. Press the SUPER FRZ (Super Freezer) button once, and then the quick freeze operation starts with the lamp it. •...
  • Page 14: Self Test

    Operation Self Test • This function automatically detects failure when failure is found in product during the use of refrigerator. • If the failure occurs at product and it does not operate by pressing any button and normal indication is not done, do not turn the power off and immediately contact with the local service center.
  • Page 15: Door Alarm

    Operation Door Alarm • When the door of the fridge is left opened for a while, the alarm sounds. Please contact with the local service center if warning continue to sound even after closing the door. Ice Making • Fill water in ice making box of the ice making corner. If water is fully filled the ice will not be separated well and water can be dropped to make ice lumped.
  • Page 16: Half Shelf

    Operation Half Shelf • You can store taller items such as a gallon or bottles by simply pushing in front half of shelf underneath back (Optional) half of shelf. Pull toward you to return to a full shelf. • Bottles can be stored laterally with this wine corner. Wine Rack Then you can invert the wine rack and place it on the (Optional)
  • Page 17: Storing Food

    Suggestions on food storage Storing Food • Do not store food which goes bad easily at low w w Caution temperature, such as banana, and melon. • Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
  • Page 18 Suggestions on food storage • Freezer Door Basket, marked is -12°C compartment, that is suitable for sort term storage of frozen food. • If you want to quick freeze new food, you put it middle drawer of freezer compartment, and then press the Super Freezer button.
  • Page 19: Care And

    Care and Maintenance General Information Power Failure • 1~2 hour power failure does no harm to the foods stores. Try to avoid opening and closing the door too frequently. • Take out foods from the fridge-freezer and firmly fix If You Move the loose items with tape.
  • Page 20: Lamp Replacement

    Care and Maintenance Lamp Unplug the power Replacement cord from the outlet. Remove the room lamp lid by taking down while pulling its back projection. Remove the lamp by turning it counterclockwise and replace new one. Assemble in reverse order of disassembly. Replacement bulb must be the same specification as original.
  • Page 21: Cleaning

    Care and Maintenance Cleaning Before Cleaning Be sure to unplug the power. If you want to take out an opti fresh zone drawer of a refrigerator, Take out the drawer after remove a basket in front of drawer. Exterior Clean the outside of the fridge-freezer with a soft cloth soaked with hot water or liquid detergent.
  • Page 22: Trouble Shooting

    Trouble Shooting Before calling for service, check this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Possible Causes • Power plug may be unplugged from the electric Fridge-Freezer outlet.
  • Page 23 Trouble Shooting Trouble Shooting Problem Possible Causes • Too frequent or too long door openings. Moisture collects inside • In humid weather, air carries moisture into fridge when doors are opened. • Foods with strong odors should be tightly covered or Fridge has odor wrapped.
  • Page 24 P/No. 3828JY8001A...
