Assembly screw (5)
(black)
● XYN4+F10FNK
M4 × 10
Assembly screw (7)
(silver)
●
XYN5+F16FN
M5 × 16
■

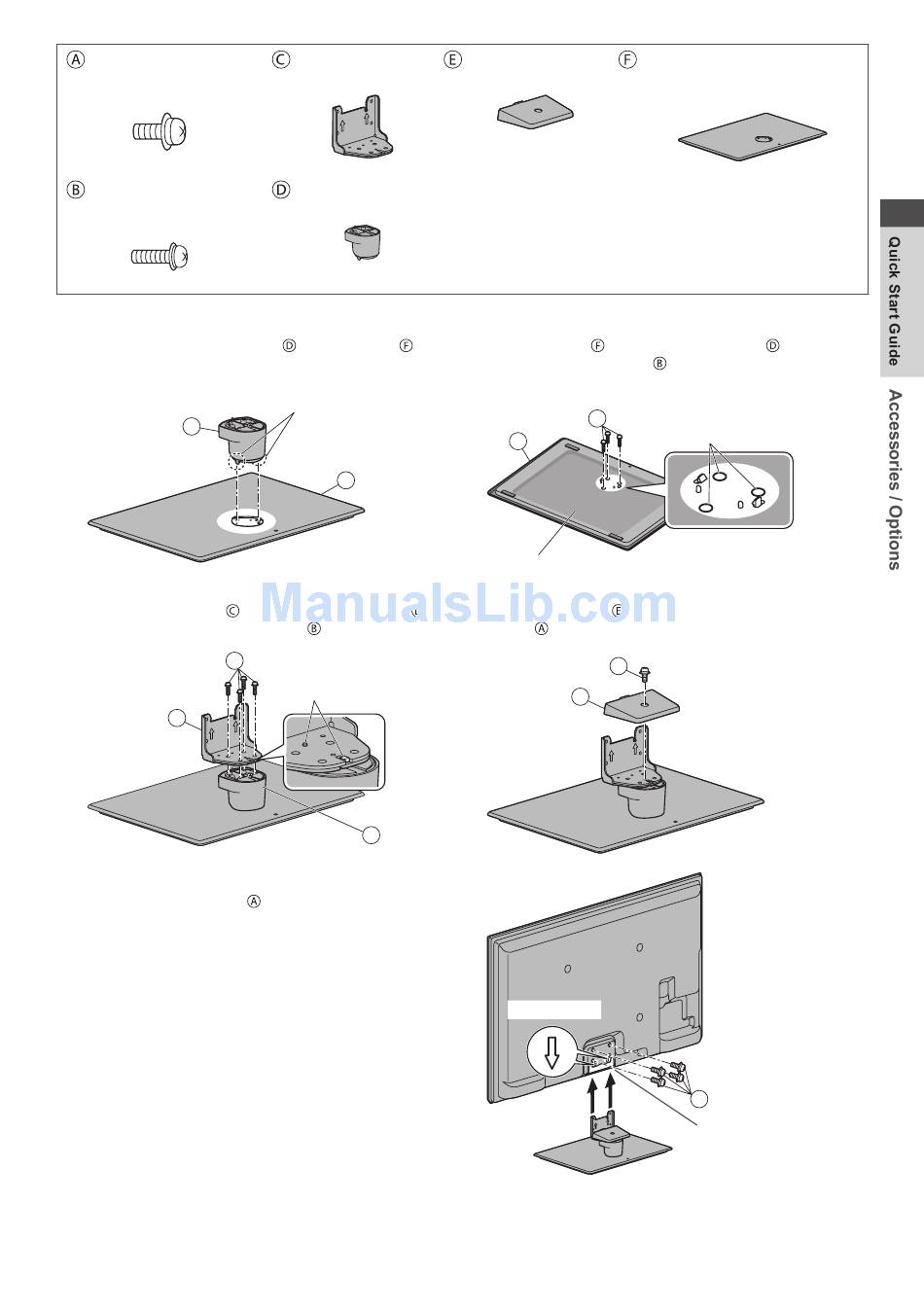

Assembling the pedestal
1
Insert the tabs of the neck
firmly
D
3
Attach the bracket
and fix with assembly screws
B
C
■
Securing the TV
Use the assembly screws
●
Tighten the four assembly screws loosely at first, then
tighten them firmly to fix securely.
● Carry out the work on a horizontal and level surface.
Bracket
●
TBL5ZA3238
Neck
●
TXFBL5Z0072
into the base
Tabs (bottom)
F
to the tabs of the neck
Tabs (top)
D
to fasten securely.
Cover
●
TXFBL5Z0073
2
Turn the base over and fix the neck
with assembly screws
●
Do not hold the neck when turning over the base.
B
F
Back of the base
4
Attach the cover and fix securely with assembly
screw
A
E
Arrow mark
Base
●
TBL5ZX0293 (TX-P42XT50B)
● TBL5ZX0295 (TX-P50XT50B)
securely
Screw hole
A
Hole for pedestal
installation
