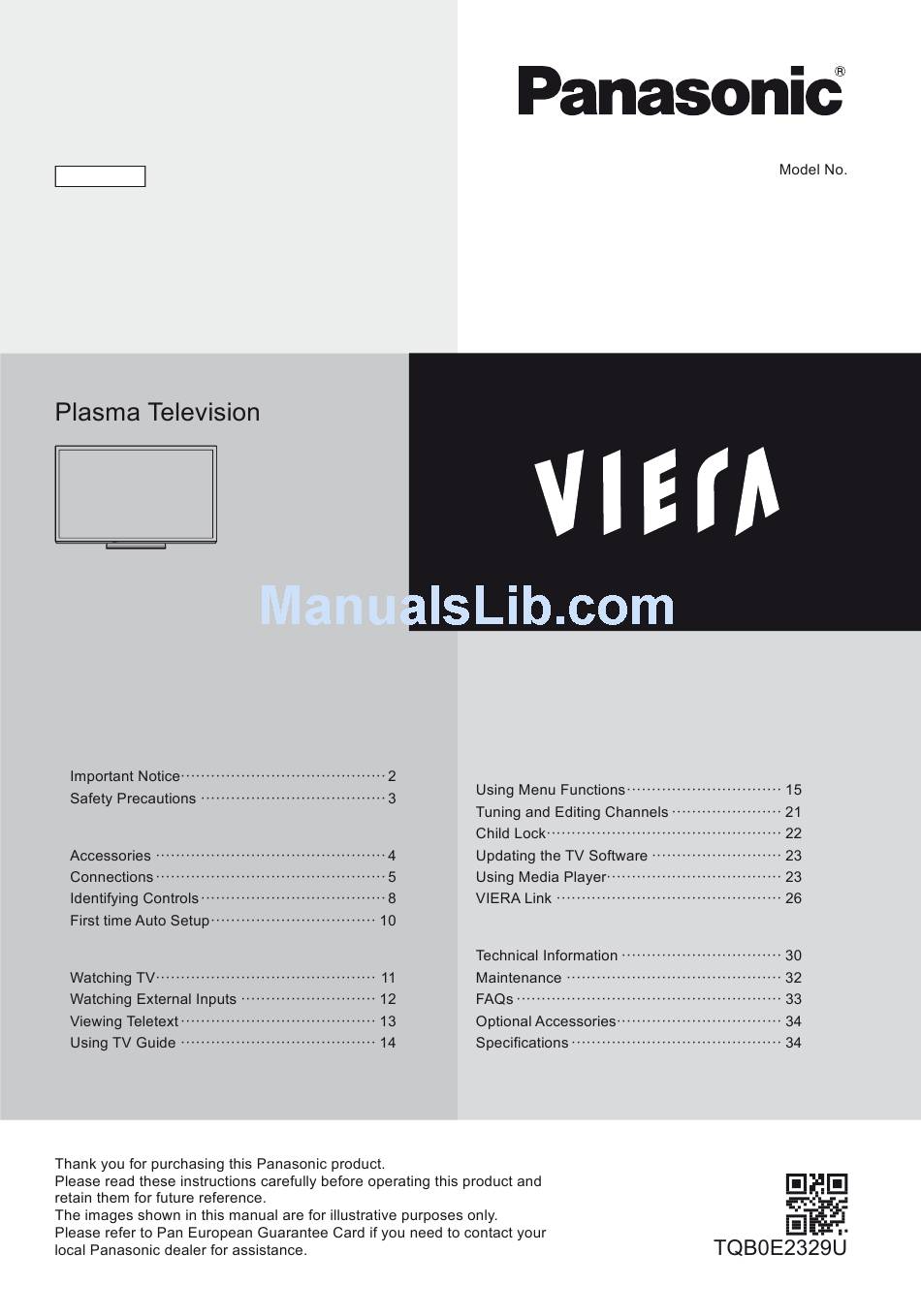

- Page 1 English TX-P42X60E TX-P50X60E Operating Instructions Contents Be Sure to Read Quick Start Guide Others Using your VIERA...
-
Page 2: Important Notice
Important Notice Do not display any still part of the image for a long period Notice for DVB / Data broadcasting http://panasonic.net/viera/support... -
Page 3: Safety Precautions
Take care Warning Safety Precautions Mains plug and lead Warning To prevent the spread of fire, keep candles or other open flames away from this product at all times Dangerous part / Small object Warning... - Page 4 Pedestal Moving the TV Warning Caution Caution When not in use for a long time Caution Ventilation Caution Excessive volume Caution Battery for the Remote Control Caution Accessories Remote Control Batteries (2) Pedestal Mains lead (p. 5) (p. 6) (p. 9) (p.
- Page 5 Assembling / Removing the pedestal Assembly screw (4) Assembly screw (4) Pole (2) Base Assembling the pedestal Removing the pedestal from the TV Connections Terminals CI slot (p. 7) USB port Headphone jack (p. 7) DIGITAL AUDIO HDMI1 - 2 (p.
- Page 6 Basic connections Mains lead and aerial Terrestrial aerial DVB-C, DVB-T, Analogue Cable Mains lead To remove from the TV: Make sure that the mains lead is securely fixed. AV devices DVD Recorder / VCR Terrestrial aerial DVD Recorder / VCR Cable DVD Recorder / VCR and Set top box Set top box...
- Page 7 Other connections DVD player DVD Player Camcorder / Game equipment Camcorder Game equipment Amplifier Amplifier with External equipment speaker system (DVD Player, etc.) Headphones [Headphone Volume] (p. 18) Common Interface CI module [Common Interface] (p. 20)
-
Page 8: Identifying Controls
Types of connectable equipment to each terminal Terminal Features COMPONENT VIDEO Identifying Controls Indicator / Control panel Power LED Red: Green: Input mode selection [Main Menu] Remote control signal receiver Mains power On / Off switch Ambient sensor... - Page 9 Remote Control [Option Menu] Coloured buttons (red-green-yellow-blue) Volume Up / Down Numeric buttons Still Input mode selection (p. 11, 12) TV Guide (p. 14) Subtitles Exit Standby On / Off switch Cursor buttons VIERA TOOLS Return Aspect (p. 11) (p. 29) (p.
-
Page 10: First Time Auto Setup
Using the On Screen Displays Operation guide How to use remote control Main Menu Picture Sound Timer Setup Help First time Auto Setup Plug the TV into mains socket and turn power on Select the following items Select the language Select [Home] Select your country Tick the TV signal mode to tune, and then select [Start Auto Setup]... -
Page 11: Information Banner
Watching TV [14:9]: [Just]: Turn power on [4:3]: [Zoom]: [4:3 Full]: Select the mode [Sidecut Just]: TV Selection DVB-C DVB-T [Sidecut Zoom]: Analogue Note Select a channel Information banner Display Information banner To select from the Channel List All DVB-T Channels All DVB-T Channels Note Aspect... -
Page 12: Watching External Inputs
Watching External *Features available / Message meanings Inputs [Bad signal] [Dolby D+], [Dolby D], [HE-AAC] Turn the TV on When connecting with SCART or HDMI If input mode is not switched automatically Display the input selection menu Select the input mode connected to the equipment [Stereo], [Mono] Input Selection 1 - 90... -
Page 13: Viewing Teletext
Viewing Teletext View in multi window What is FLOF (FASTEXT) mode? Reveal hidden data Reveal hidden words e.g. quiz page answers What is TOP mode? Call up a favourite page View a favourite page stored FULL / TOP / BOTTOM What is List mode? To change mode [Teletext] (p. -
Page 14: Using Tv Guide
Using TV Guide View sub page View sub page (Only when Teletext is more than one page) To view specific sub page [GUIDE Plus+ Settings] (p. 20) Select the mode Watch TV while waiting for update View the TV picture while searching for a teletext page View TV Guide P108... -
Page 15: Using Menu Functions
Using Menu To watch the programme Functions To the previous day Display the menu To the next day Select the menu To view a channel list of the selected type Main Menu Picture To view a channel list of the selected category Select the item To view details of the programme... - Page 16 Picture Adaptive Gamma Control Viewing Mode Black Expander Colour Gamut [Dynamic]: [Normal]: [Normal]: [Cinema]: [Native]: [True Cinema]: White Balance [Custom]: Colour Management Contrast / Brightness / Colour / Tint / Sharpness Colour Temperature Gamma Vivid Colour Reset to Defaults Ambient Sensor Option Settings Film Cadence Mode Noise Reduction...
- Page 17 Copy Adjustment HDMI RGB Range AV Colour System Reset to Defaults 3D-COMB Sound Mode Refresh Rate [Standard]: [Music]: [Speech]: Screen Settings [User]: 16:9 Overscan [On]: [Off]: H-Size Bass Zoom Adjustments Treble Screen Display Equaliser Side Panel Pixel Orbiter [Auto]: Scrolling Bar Balance...
- Page 18 Surround Audio Type Headphone Volume SPDIF Selection Auto Gain Control [Auto]: Volume Correction [PCM]: Speaker Distance to Wall SPDIF Delay HDMI Input [Stereo]: [Mono]: HDMI1 / 2 [M1] / [M2]: [Digital]: [Analogue]: Audio Preference Reset to Defaults [Auto]: [Multichannel]: [Stereo]: [MPEG]:...
- Page 19 Timer Update Channel List Off Timer Favourite Network Time Zone New Channel Message Auto Standby Service Replacement Signal Condition Attenuator No signal Power off Add TV Signal Setup Language Eco Navigation OSD Language Preferred Audio 1 / 2 Preferred Subtitles 1 / 2 Child Lock Preferred Teletext Tuning Menu *...
- Page 20 System Menu Teletext Character Set USB Keyboard Layout [West]: (p. 32) [East1]: Shipping Condition [East2]: System Update Default Guide Licence Menu [TV Guide]: (p. 14) [Channel List]: Other Settings GUIDE Plus+ Settings Input Labels Banner Display Timeout Power Save Radio Mode Help TV Self Test Common Interface...
-
Page 21: Tuning And Editing Channels
Tuning and Editing Channel List Channels Select a channel and reveal / hide All DVB-C Channels To edit the list by using the coloured buttons Sorting mode: Favourites Edit Swap / Move: Reveal all: Category: Select a channel to list Tune: DVB-C Favourites Editor Rename:... -
Page 22: Child Lock
Child Lock DVB-T: Adjust frequency for each channel DVB-T Manual Tuning Enter the PIN number (4 digits) Search Select [Child Lock List] and set the channel / input to be locked Child Lock List - TV and AV Analogue: Analogue Manual Tuning Fine Tuning To edit the list by using the coloured buttons Sorting mode:... -
Page 23: Updating The Tv Software
Updating the TV Using Media Player Software “Supported file format in Media Player” (p. 31) To update automatically System Update If System Update is performed, the software will be updated (it may change TV functions). If you do not want to do so, set [Auto Update To insert or remove the USB Flash Memory Search in Standby] to [Off]. -
Page 24: Photo Settings
Photo mode Transition Effect Media Player Photo All photos Auto Makeup Screen Mode Burst Playback [Single view] Select the file from the thumbnail of photos to be viewed Interval [Slideshow] Select the file from the thumbnail of photos for the first view Repeat Start Slideshow Back Ground Music... -
Page 25: Video Setup
Video Setup Video mode Media Player Video Title view Video Preview Multi Audio, Dual Mono Audio Subtitle Subtitle Text [Video Preview] Select the title / scene Start playback Repeat... -
Page 26: Viera Link
VIERA Link Music mode VIERA Link “ ” Media Player Music Folder view Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control™” function. Select the folder / file Start playback Music Setup Repeat [Folder]: [One]: [System Information] (p. 20) - Page 27 VIERA Link (HDMI and Audio out Summary of VIERA Link features connections) VIERA Link (HDMI connection) Connection Connection...
- Page 28 Power on Link Set [Power on Link] to [On] in the Setup Menu to use this function (p. 20) VIERA Link Control of compatible equipment Power off Link Set [Power off Link] to [On] in the Setup Menu to use this function (p.
-
Page 29: Viera Link Control
VIERA Link Control If you access non-VIERA Link equipment Speaker Selection Display [VIERA TOOLS] and select [VIERA Link] Select [VIERA Link Control] Display [VIERA TOOLS] and select [VIERA Link] Select the type of the connected equipment to access VIERA Link Menu Select [Speaker Selection] VIERA Link Menu [Recorder] / [Player] / [Home Cinema] / [Video... -
Page 30: Technical Information
Technical HDMI connection Information Aspect Control Signal Applicable HDMI features “Input signal that can be Available conditions for the Widescreen displayed” (p. 31) signal (WSS) “VIERA Link” Input terminal Input signal format (p. 26) DVI connection Note Note... - Page 31 Input signal that can be displayed COMPONENT (AV2) / HDMI terminal Signal name 3GPP Supported file format in Media Player Photo JPEG Subtitles MicroDVD, SubRip, TMPlayer Video Music LPCM FLAC...
-
Page 32: Maintenance
Maintenance USB devices First, remove the mains plug from the socket outlet. Display panel, Cabinet, Pedestal Regular care: For stubborn dirt: USB Flash Memory Caution USB Keyboard [USB Keyboard Layout] (p. 20) Mains plug Keyboard Remote Control n p m o... - Page 33 FAQs Block noise, frozen or disappearing image occurs The TV goes into Standby mode in DVB mode / White spots or shadow image (ghosting) occurs in Analogue mode / Some The remote control does not work or is channels cannot be tuned intermittent (p.
-
Page 34: Optional Accessories
Optional Accessories Wall-hanging bracket Depth of screw minimum: 17 mm maximum: 35 mm Diameter: M8 Warning Specifications Model No. TX-P42X60E TX-P50X60E Dimensions (W × H × D) Mass Power source Panel Speaker Audio output Headphones Temperature: Operating conditions Humidity:... - Page 35 AV1 input / output SCART VIDEO AV2 input AUDIO L - R (COMPONENT / VIDEO) HDMI 1 / 2 input Card slot DIGITAL AUDIO output DVB-C DVB-T Receiving systems / PAL B, G, H, I, Band name SECAM B, G, SECAM L, L’...
- Page 36 For business users in the European Union [Information on Disposal in other Countries outside the European Union] Note for the battery symbol (bottom two symbol examples): Declaration of Conformity (DoC) Customer’s Record Model Number Serial Number © Panasonic Corporation 2013...
