Rad2Go ZZ Cruiser Owner's Manual page 9

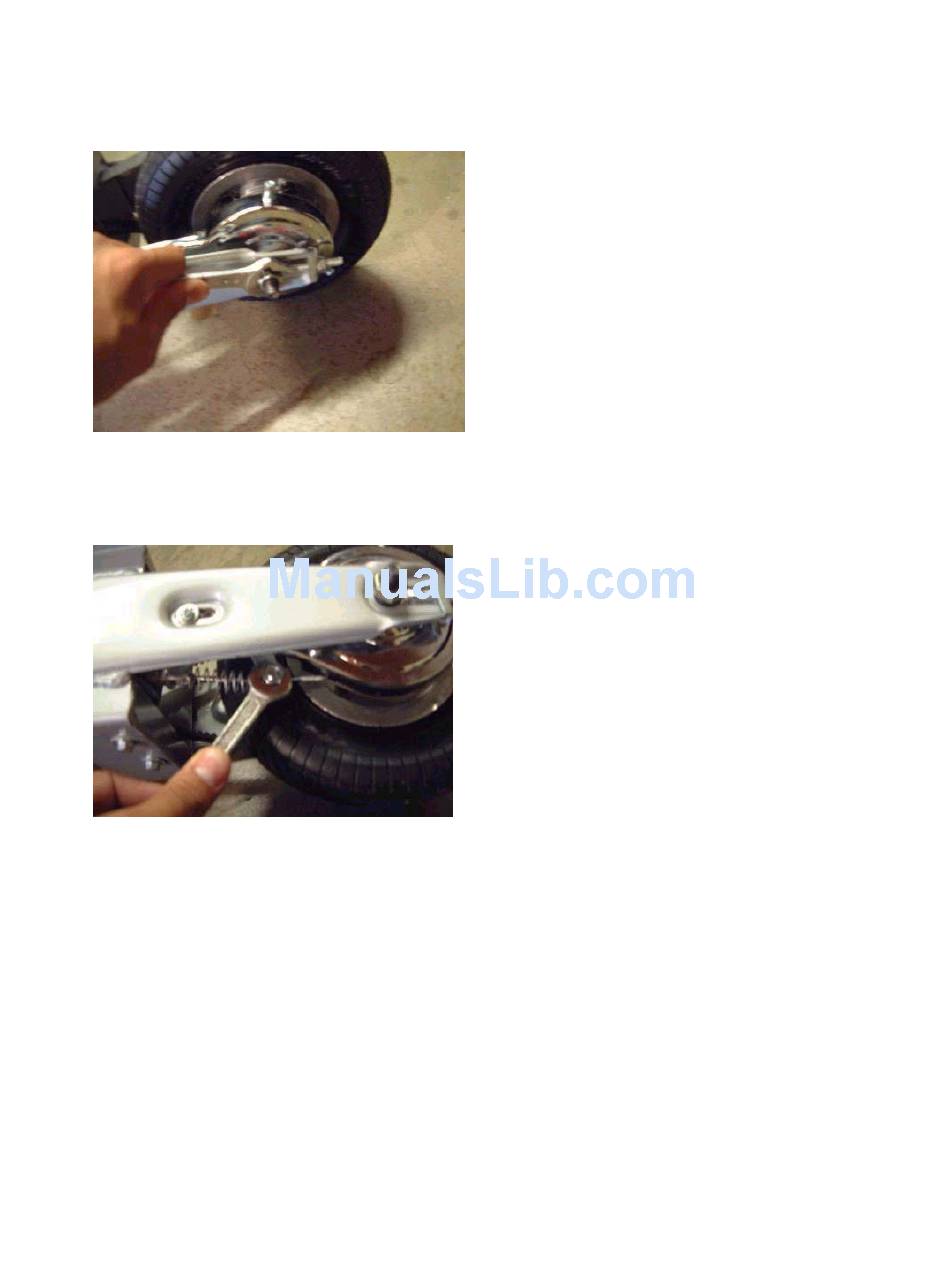

Fig. 3
Step 3.) Remove the axle nut located on the right side of the rear tire as seen in Fig 3.
Fig. 4
Step 4.) Loosen the brake adjustment bolt as seen in Fig 4. Do not completely remove this bolt. It should
loosen to the point where the line traveling through the "brake spring" can be removed. Next remove the
drive belt from the tire sprocket. Once this has been completed, the rear tire and hub can be removed from
the scooter.
9
