V-WIN [ F3 ]
The Graphic window can be set to varied, in order to optimize the
representation of the Graphs. Preferences help to quickly achieve
early results.
Preferences [ F1 ] [ F2 ] [ F3 ]

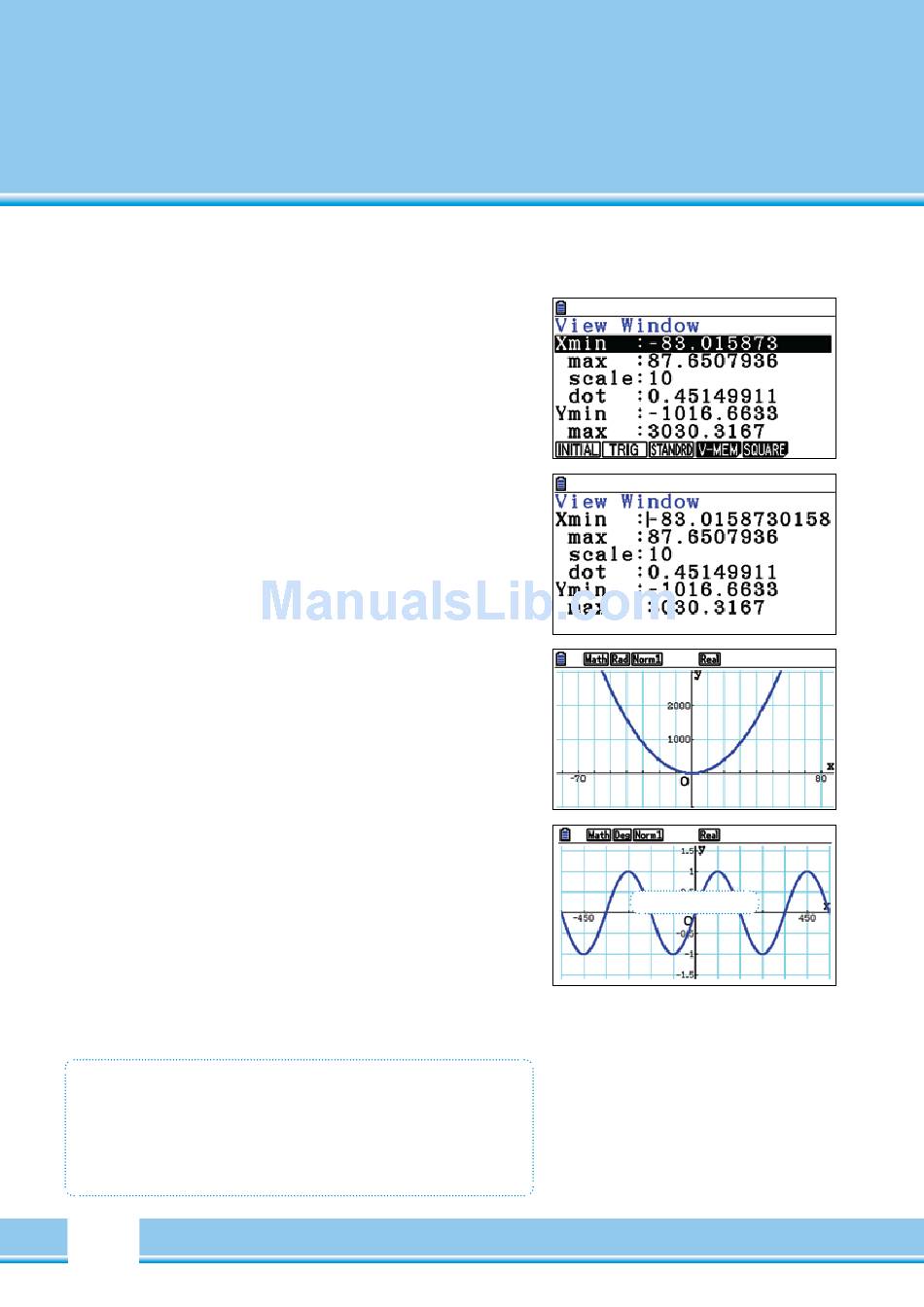

INIT Default setting. The aspect ratios are adapted to
the Panel resolution. The graph of a circuit is shown
correctly.
TRIG Preference for Trigonometric functions.
STAND- Setting, the x- and Y-Axis have the same scaling
( -10/ 10 )
Adjusting the Graphics Window
xmin smaller values of the x-axis
xmax greater values of the x-axis
Scale Distance between two points on the x-axis
Grid ( The impact e.g. of TRACE, G-SOLV, etc )
Dot
Ymin smaller values of the Y-axis
Ymax greater values of the Y-axis
Scale Distance between two points on the Y-axis
Dot Grid
Means V-MEM ([ F4 ]) and STORE/RECALL can be
Tip!
incurred and settings can be saved and recalled.
V-Window
• INIT, TRIG, STD: Preferences for the Graphic window
• Individual settings are possible
• Manual settings can be saved
22
Pre-setting TRIG
