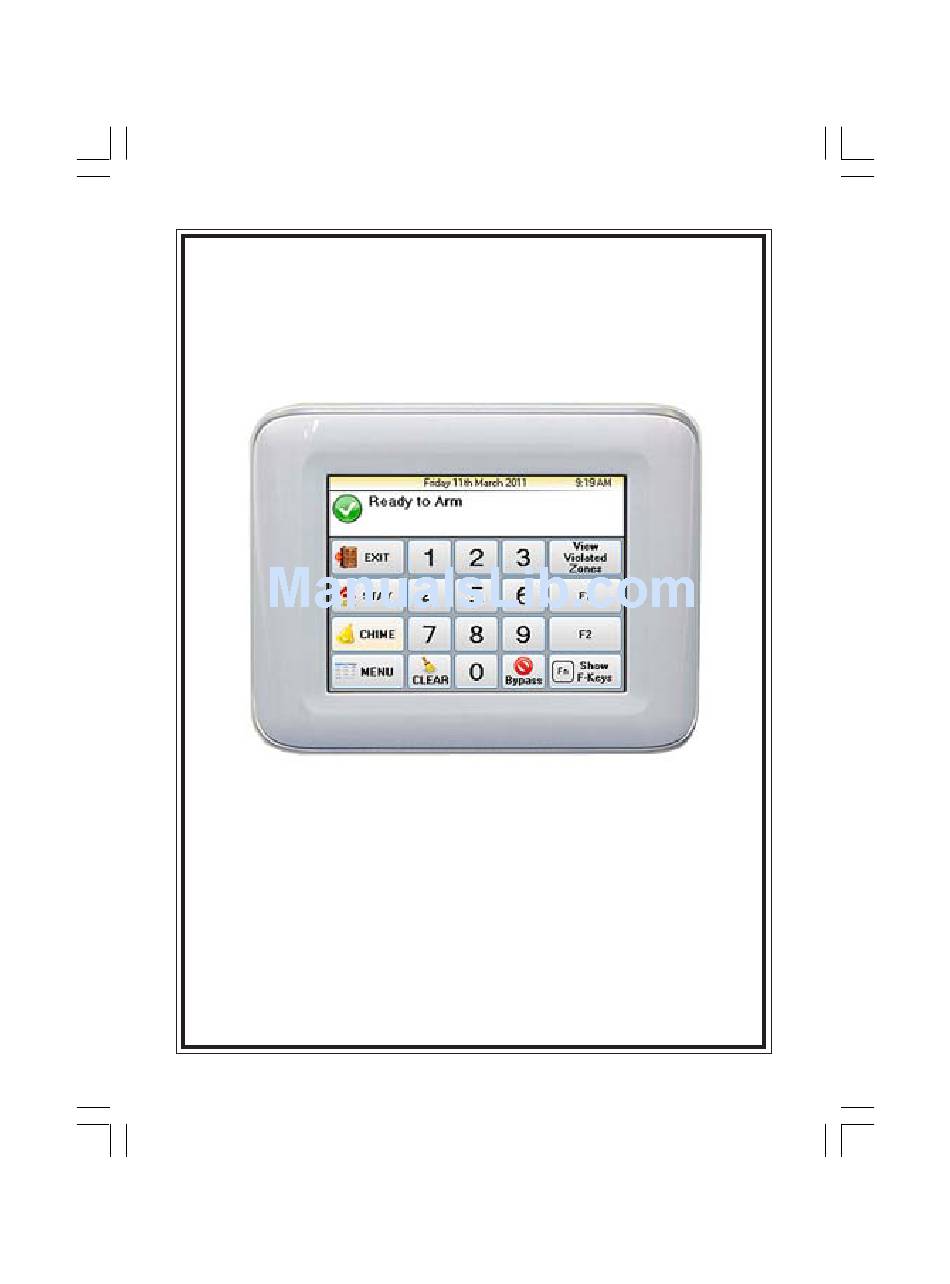

- Page 1 NAVIGATOR ELK PRODUCTS M1 USER GUIDE USER GUIDE USER GUIDE USER GUIDE USER GUIDE Elk-M1KPNAV Touchscreen Keypad L635 Rev. A 10/6/11...

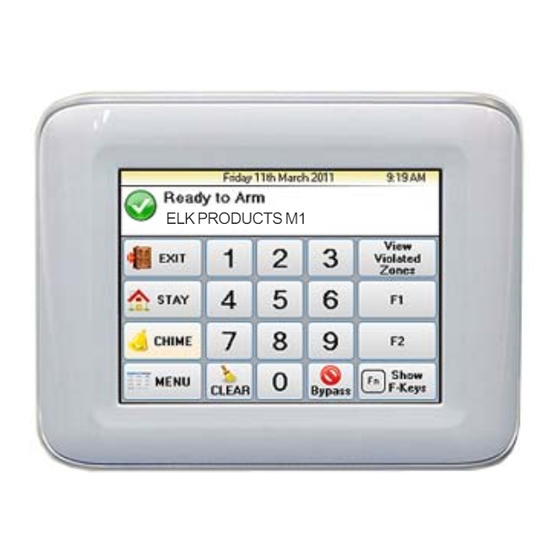

- Page 2 M1KPNAV Navigator Touchscreen Keypad - User Guide Introduction Congratulations on purchasing a Navigator Keypad as part of your featured packed M1 Security and Automation controller. Navigator is a stylish Touch Screen Keypad interface for use with the M1 series Cross Platform Controllers. It features a large touch sensitive 3.5" color LCD with bright, easy to use graphic icons and softkeys.
-
Page 3: Table Of Contents
M1KPNAV Navigator Touchscreen Keypad - User Guide TABLE OF CONTENTS Main Screen ....................4 Status Window ...................... 4 View Violated Zones ................... 5 EXIT - Arming in the “Away” Mode ..............5 EXIT - Arming in the “Vacation” Mode ............. 5 STAY - Arming in the “Stay”... -
Page 4: Main Screen
M1KPNAV Navigator Touchscreen Keypad - User Guide Main Screen The top line of the Main screen displays the current time and date from the M1 Control. Actual display may vary slightly from that shown. Status Window A Status Window directly beneath the time and date includes an Icon which will be either green, yellow, or red, depending on the M1’s status. -
Page 5: View Violated Zones
M1KPNAV Navigator Touchscreen Keypad - User Guide View Violated Zones To view zones that are violated (not ready) press the button labeled “Violated Zones” on the top right corner of the button arrangement. The display will begin with the first violated zone. The Up and Down buttons that appear in the Status Window can be used to move between zones. -
Page 6: Stay - Arming In The "Stay" Mode
M1KPNAV Navigator Touchscreen Keypad - User Guide STAY - Arming in the “Stay” Mode Stay mode arming is used when the premises is occupied. All perimeter doors and windows are armed, and all interior zones are excluded. Enter a User code or press the STAY key (Quickarm). ** Display will change to Armed Stay. -
Page 7: Display "Show" F Keys
M1KPNAV Navigator Touchscreen Keypad - User Guide Display “Show” F Keys Pressing this button will swap the display to the extended Main screen. All 6 of the “F” keys are available on this screen. BYPASS - Excluding Zone(s) Bypass permits zones to be excluded (ignored) by the control during the current armed period. -
Page 8: Acknowledging An Alarm
M1KPNAV Navigator Touchscreen Keypad - User Guide What to do if the Alarm is Sounding 1. Proceed directly to the Keypad and enter your user code. 2. The alarm and/or keypad tone should silence. 3. The System Armed display should disappear. -
Page 9: Main Menu Screen
M1KPNAV Navigator Touchscreen Keypad - User Guide Main Menu Screen The Main Menu screen will be displayed when the Menu button is pressed on the Main screen. Various system User and Installer options are available. The Main Menu is split across 2 pages. -
Page 10: Automation
M1KPNAV Navigator Touchscreen Keypad - User Guide Automation The M1 system has six (6) categories of Automation options which may be controlled via the Automation button. Your system may or may not be configured with these options. When the “Automation button” is pressed the screen will display the following options: ·... - Page 11 M1KPNAV Navigator Touchscreen Keypad - User Guide Automation - Task Activation A Task is an M1 feature that is similar in operation to a “macro” found in a word processor or spreadsheet program. It allows a series of automation steps or processes to be activated by a single button press. Each task may have a name such as: Water the Lawn (to turn on electric water valves), Welcome Home (to turn on a series of Lights or adjust the temperature).
- Page 12 M1KPNAV Navigator Touchscreen Keypad - User Guide Automation - Task Activation - Single View At the bottom of the Task Activation screen is a “Single View” button. This provides a means to locate and activate a single Task, including a Task which has been greyed out or “hidden”...
- Page 13 M1KPNAV Navigator Touchscreen Keypad - User Guide Automation - Lighting Control This menu option allows access to view and control any intelligent lighting devices which may be integrated with your M1 system. The Lighting Control screen can display up to 4 lights at one time.
- Page 14 M1KPNAV Navigator Touchscreen Keypad - User Guide NOTE: Direct number entry is the only way to gain access to to a hidden Light. The Next and Previous buttons skip over hidden Lights. In Single View the lighting state can be toggled using the “Change State”...
- Page 15 M1KPNAV Navigator Touchscreen Keypad - User Guide Automation - Output Control This option allows access to control any outputs that may be configured with your system. Outputs are relays or voltage trips used for controlling other types of equipment. Up to 8 outputs may be displayed on the screen at one time with the Output number and name.
- Page 16 M1KPNAV Navigator Touchscreen Keypad - User Guide NOTE: Direct number entry is the only way to gain access to a hidden Output. The Next and Prevous buttons skip over hiddent Outputs. In Single View the Output state my be toggled using the “Change State”...
- Page 17 M1KPNAV Navigator Touchscreen Keypad - User Guide Automation - Keypad Temperature If your M1 system was installed with any M1KP Keypads you can use this option to view the temperature of their internal temperature sensor. Consult your Installer to see if your system includes any M1KP Keypads.
-
Page 18: Reset Smoke Detectors
M1KPNAV Navigator Touchscreen Keypad - User Guide Reset Smoke Detectors If your M1 system includes Smoke Detectors (optional) wired to the control, these generally have a visual LED light that will illuminate whenever the detector has activated. This is useful for troubleshooting and locating the source of an alarm after a false or accidental trip. -
Page 19: History Log
M1KPNAV Navigator Touchscreen Keypad - User Guide History Log Your M1 System stores the last 512 events of activity history. This menu option permits you to view those events, starting with the most recent. The Next button will scroll backwards to the next most recent event. -
Page 20: Change User Codes
M1KPNAV Navigator Touchscreen Keypad - User Guide Change User Codes (This requires a Master Level User Code) Your system supports up to 199 Users as enabled by the Installer. A User with a Master Level Code may change, edit, or delete other Users. -
Page 21: System Settings
M1KPNAV Navigator Touchscreen Keypad - User Guide System Settings (A Master or Installer Code is required for these options) This manual does not go into detail on the Systems Settings options. Many are self-explanatory, while others are intended for use ONLY by the Installer. -
Page 22: Select Area
Select Area (This Option requires entry of a valid User Code) Your system may be configured to allow control of multiple areas (e.g. Office, House, Garage etc). This allows a part of the system to be Armed, while others are disarmed. The “Select Area” and “Change Keypad Area” screen works as follows with two types of multiple area control. -
Page 23: Synchronise
Synchronise This is primarily for use by the Installer. After any programming changes are made to the M1 Control it may be necessary to activate this option so that Navigator can update and synchronise itself with the control. Clean Screen This option will disable the screen for 10 seconds to allow cleaning of the screen surface. -
Page 24: Fire Safety & Maintenance
Fire Safety & Maintenance If the fire alarm activates, the siren or bell will pulse ON and OFF and the display will show “Fire Alarm”. Always follow your evacuation plan and leave the building immediately, even if the a fire condition is not apparent. If your system is connected to a central monitoring station, an emergency report could be sent to that center. -
Page 25: Emergency Evacuation Plans
Emergency Evacuation Plans Preparation of an evacuation plan is of prime importance in fire prevention. Establish a household emergency evacuation plan in the event of fire. Refer to the Smoke Detector instructions concerning their mounting, layout and spacing. Evaluate possible escape routes from your home. Select 2 escape routes from each room. -
Page 26: System Testing
System Testing To assure the proper working order the system should be tested once a week using the following procedure. If the system Is monitored always contact the Central Monitoring Station prior to performing any test. Secure all protected doors and windows. Press Away or enter a valid User code to arm the system. -
Page 27: Navigator Protective Screen Film
Navigator Protective Screen Film Navigator is supplied with two pieces of self-adhesive Protective Film. We highly recommend this film be applied to the touchscreen front to help protect the sensitive touch surface against marks and scratches that may appear under normal use. The protective film should keep the screen looking brand new for years to come. - Page 28 www.elkproducts.com Printed in USA...
