Summary of Contents for Hughes & Kettner ATTAX

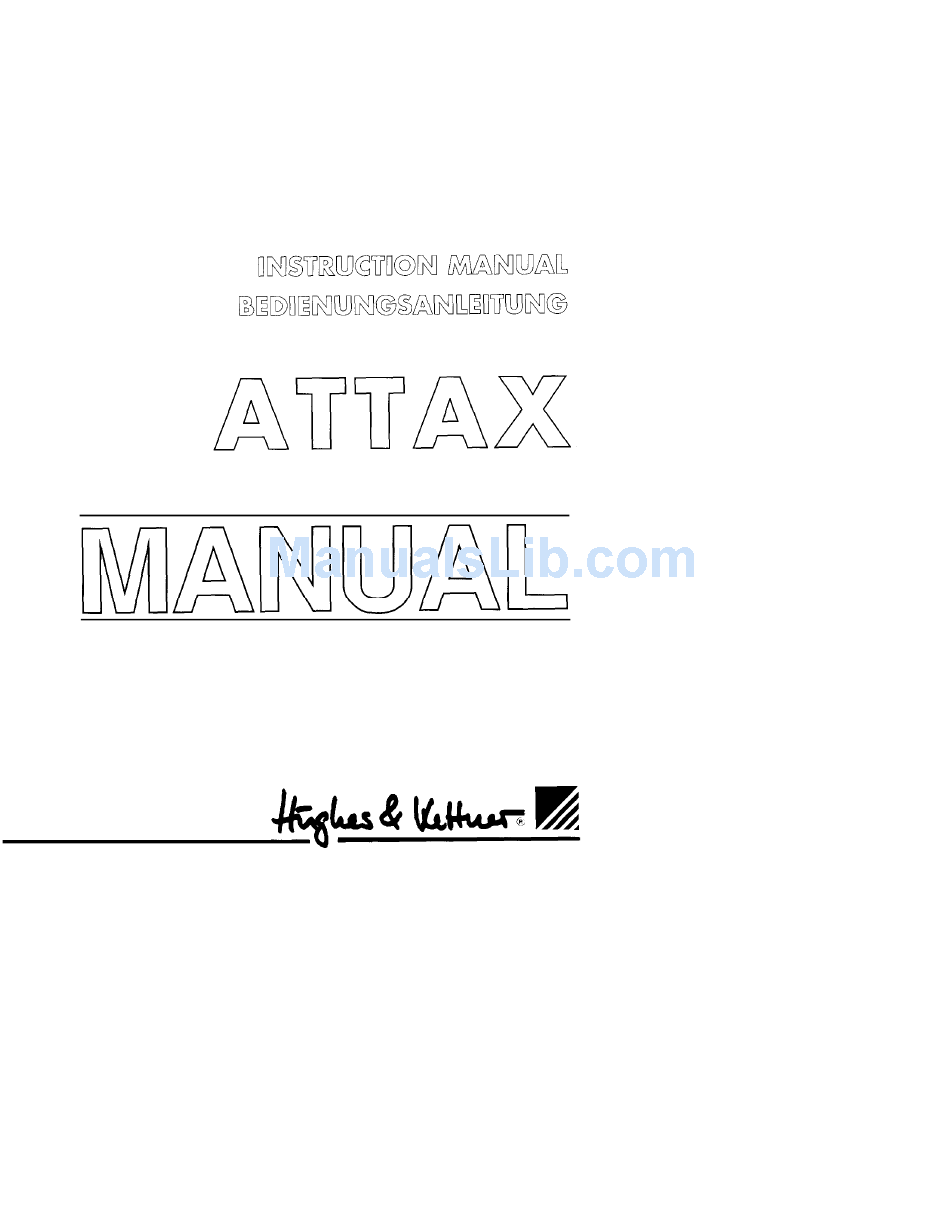

- Page 1 3-CHANNEL G U I T A R P R E A M P L I F I E R Hughes & Kettner Musical Instruments GmbH Magdeburgerstr.6 6690 St.Wendel Telefax ( 0 68 51 48 86 Telefon ( 0 68 51 20 21...
- Page 2 The HUGHES & KETTNER ATTAX preamp is designed to meet the rigorous demands placed on contemporary musicians: superior sound quality, flexibility, and user- friendly operating define the ATTAX as a valuable tool in your quest for the ultimate sound. The streamlined operating and control concept enables you to immediately dial in hot sounds.
- Page 3 ATTAX CRUNCH - THE VINTAGE TUBE CHANNEL The ATTAX CRUNCH tube channel covers the tonal spectrum from clean to overdrive. The emphasis on attack response in this channel enables you to control overdrive levels with your guitar’s volume pot. At higher gain settings, your tone is carried by lengthy sustain ideal for a singing blues tone with superior dynamic punch.
- Page 4 MIDI OPTION installation is a prerequisite to MIDI capability. Upon MIDI OPTION installation, press the MIDI LEARN BUTTON on the ATTAX'a front panel to save the current sound/effect parameter settings. Installation is a matter of just a few minutes, it requires no soldering.
- Page 5 In addition to the tree channel’s respective VOLUME and/or GAIN controls, the CRUNCH and LEAD channels each incorporate a MASTER control (CRUNCH MASTER / LEADMASTER). The overall output of the ATTAX is defined via the STEREO MASTER VOLUME knob (15). These features allow for an optimum volume balance between the three channels, an essential feature for gigs.
- Page 6 NOTE: If no signal procession is connected to the STEREO LOOP, then the FX-MIX pot can be used as a master volume. The FX-MIX has no influence on overall ATTAX output when it is set to DRY (refer to the “Activating a Second MASTER VOLUME”...
- Page 7 Activating the additional MASTER VOLUME Step on the STAGEBOARD’S FX footswitch (the LED illuminates). Dial in a separate MASTER VOLUME setting for the ATTAX via the FX MIX pot (to DRY = volume up, WET = volume down).
- Page 8 STAGEBOARD JACK Connect the included ATTAX STAGEBOARD to this MULTIPIN jack. Your ATTAX preamp package includes the STAGEBOARD which enables you to activate the 3 CHANNELS and the STEREO EFFECTS LOOP via footswitches. LEAD SELECTOR SWITCHES on NOTE: Ensure the CLEAN /TUBE and CRUNCH /...
- Page 9 HUGHES & KETTNER ATTAX Line Out Left Line Out Right CF 200 n._-- ,zm.,“.__ Input Left Input Right POWERAMP E:G: HUGHES & KETTNER CF 200 / VS 250 Stereo Speaker Outs Left Right -&Law- Input Input HUGHES & KETTNER GL 112/GL 212/GL-GR 412 >...
- Page 10 The above examples are just hat examples. Your sound is ulimatly dependant on the type of instrument and the playing style you use. Nevertheless, these settings will give you a general impression of the ATTAX's sound spectrum. TREBLE CFIMAST.~ CEA.MASY j...
- Page 11 I MPORTANT SAFETY INSTRUCTIONS! E F O R E C O N N E C T I N G , R E A D I N S T R U C T I O N S Read all of these instructions Save these instructions for later use Follow all warnings and instructions marked on the product Do not use this product near water...
- Page 12 When the power cord or plug is damaged or frayed If liquid has been spilled into the product If the product has been exposed to rain or water If the product does not operate normally when the operating instructions are followed. Adjust only these controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
