INSTALLATIONINSTRUCTIONS
FREESTANDING ELECTRIC RANGE WITH DOUBLEOVENS
INSTRUCTIONSD'INSTALLATION POUR CUISINIERE
e=
ELECTRIQUE AUTOPORTANTE AVEC FOURSDOUBLES
TableofContents
RANGE SAFETY .............................................................................
1
INSTALLATION REQUIREMENTS
................................................ 2
Tools and Parts ............................................................................
2
Location Requirements ................................................................
2
Electrical Requirements - U.S.A. Only ......................................... 4
Electrical Requirements - Canada Only ...................................... 5
INSTALLATION INSTRUCTIONS ..................................................
5
Unpack Range .............................................................................
5
Adjust Leveling Legs ....................................................................
5
Install Anti-Tip Bracket .................................................................
6
Electrical Connection - U.S.A. Only .............................................
7
Verify Anti-Tip Bracket Is Installed and Engaged ...................... 12
Level Range ...............................................................................
12
Complete Installation .................................................................
13
Moving the Range ......................................................................
13
Table des mafi@res
SI_CURITI_ DE LA CUlSINIi=RE .................................................
14
EXIGENCES D'INSTALLATION .................................................
15
Outils et pieces ........................................................................
15
Exigences d'emplacement
......................................................
15
Specifications
electriques ........................................................
17
INSTRUCTIONS
D'INSTALLATION ..........................................
17
Deballage de la cuisiniere ........................................................
17
Reglage des pieds de nivellement ...........................................
17
Installation de la bride antibasculement .................................. 18
Verifier que la bride antibasculement
est bien installee et
engagee ....................................................................................
18
Reglage de I'aplomb de la cuisiniere .......................................
19
Achever I'installation ................................................................
20
Deplacement de la cuisiniere ...................................................
20
RANGE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow
instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
iMPORTANT:
Save for local electrical inspector's use.
iMPORTANT
:
,&,conserver pour consultation par I'inspecteur local des installations 61ectriques.
W10575959A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maytag MIT8795BS00
Summary of Contents for Maytag MIT8795BS00

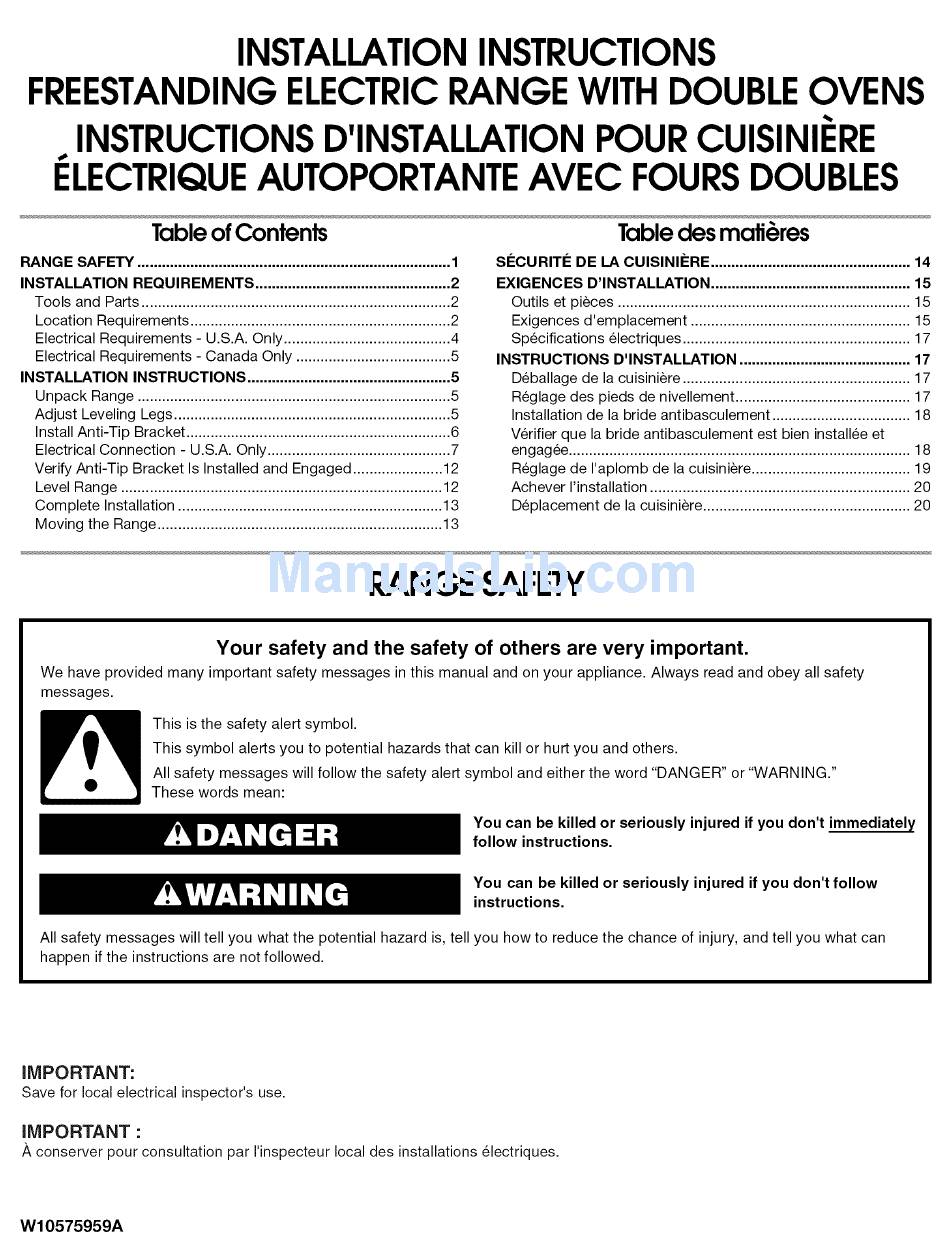

- Page 1 INSTALLATIONINSTRUCTIONS FREESTANDING ELECTRIC RANGE WITH DOUBLEOVENS INSTRUCTIONSD'INSTALLATION POUR CUISINIERE ELECTRIQUE AUTOPORTANTE AVEC FOURSDOUBLES Table des mafi@res TableofContents SI_CURITI_ DE LA CUlSINIi=RE ..........RANGE SAFETY ................INSTALLATION REQUIREMENTS ..........2 EXIGENCES D'INSTALLATION ..........Tools and Parts ................Outils et pieces ................ Location Requirements ..............
-
