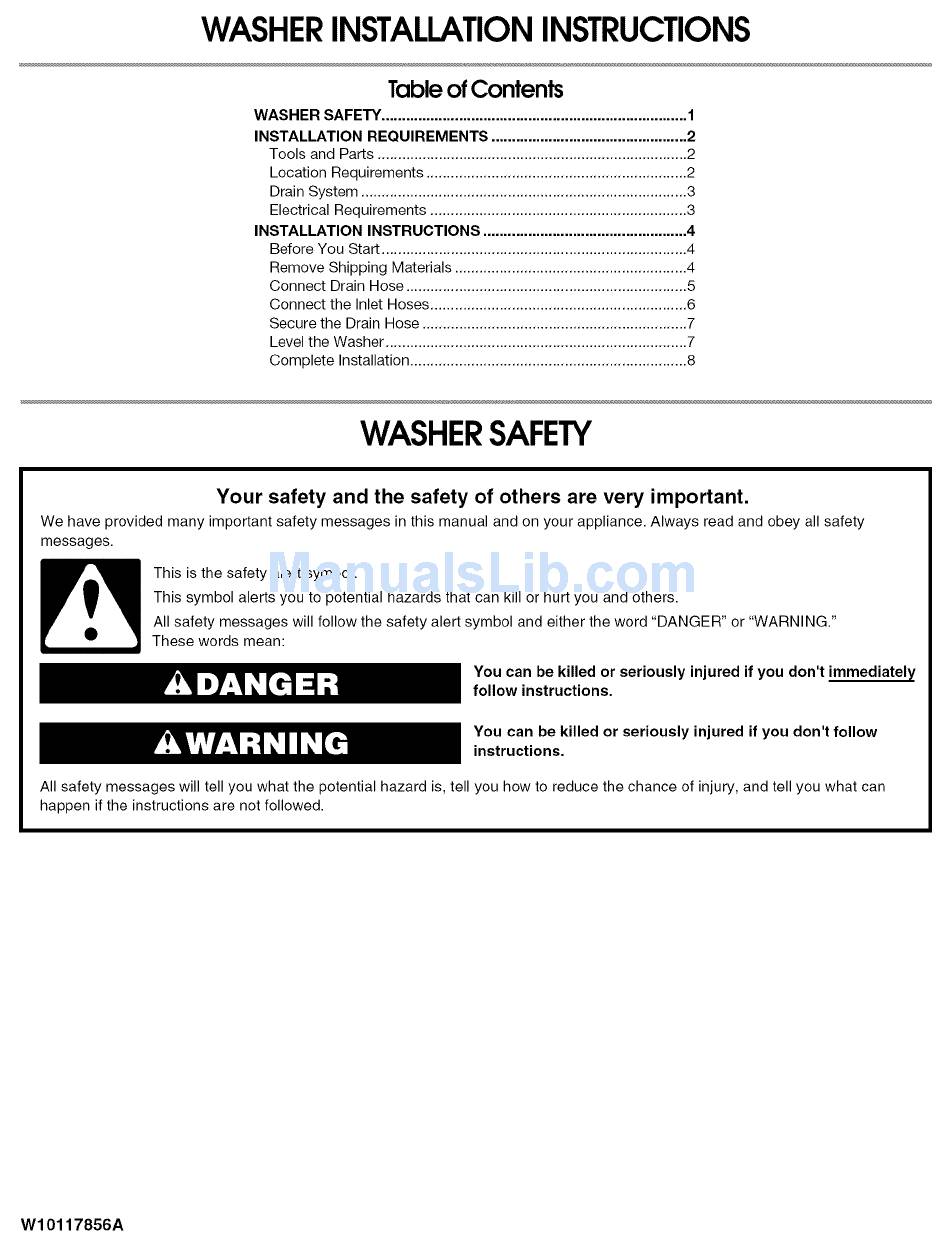

WASHERINSTALLATION INSTRUCTIONS
TableofContents
WASHER SAFETY ...........................................................................
1
INSTALLATION REQUIREMENTS
................................................
2
Tools and Parts ............................................................................
2
Location Requirements ................................................................
2
Drain System ................................................................................
3
Electrical Requirements ...............................................................
3
INSTALLATION INSTRUCTIONS
..................................................
4
Before You Start ...........................................................................
4
Remove Shipping Materials .........................................................
4
Connect Drain Hose .....................................................................
5
Connect the Inlet Hoses ...............................................................
6
Secure the Drain Hose .................................................................
7
Level the Washer ..........................................................................
7
Complete Installation ....................................................................
8
WASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10117856A
Advertisement
Related Manuals for Magic Chef 2DHTW4305TQ0
Summary of Contents for Magic Chef 2DHTW4305TQ0
- Page 1 WASHERINSTALLATION INSTRUCTIONS TableofContents WASHER SAFETY ................INSTALLATION REQUIREMENTS ..........Tools and Parts ................Location Requirements ..............Drain System ................Electrical Requirements ............... INSTALLATION INSTRUCTIONS ..........Before You Start ................Remove Shipping Materials ............Connect Drain Hose ..............Connect the Inlet Hoses ............... Secure the Drain Hose ..............
- Page 2 INSTALLATION REQUIREMENTS Alternate Parts Gather the required tools and parts before starting installation. The parts supplied are in the washer basket. Your installation may require additional parts. For information ordering, please refer to the toll-free phone numbers on the front Tools needed for connecting the drain hose and water page of the Washer Use and Care Guide.
- Page 3 Recessed area or closet installation Laundry tub drain system (view C) The dimensions shown are for the recommended spacing The laundry tub needs a minimum 20 gal. (76 L) capacity. The top allowed, except the closet door ventilation openings. The of the laundry tub must be at least 39"...
- Page 4 Tominimize possible shock hazard, thecordmust b e plugged i ntoamating, grounding-type outlet, grounded in GROUNDING INSTRUCTIONS accordance withlocal c odes a ndordinances. Ifamating outlet i snotavailable, itisthepersonal responsibility For a grounded, cord-connected washer: obligation ofthecustomer tohave theproperly grounded This washer must be grounded. In the event of a malfunction outlet i nstalled bya qualified electrician.
- Page 5 Firmly grasp the power cord and pull to completely remove Check that two (2) cotter pins were removed with the the power cord, cord restraint, and pin from the rear panel. shipping strap. Confirm that the power cord restraint (A), and pin (B) are removed.
- Page 6 Clear the water lines If drain hose does not fit into standpipe or if placing over the edge of a laundry tub: • Run water through both faucets and inlet hoses, into a • Place coupling on end of drain hose. Use a screwdriver to laundry tub, drainpipe or bucket, to get rid of particles in the install hose clamp.
- Page 7 Attach the cold water hose to the top inlet valve. It e Screw on coupling by hand until it is seated on the washer. Using pliers, tighten the couplings with an additional Properly leveling your washer avoids excessive noise and two-thirds turn.
- Page 8 After the washer is in the final location and level, use a %6" or Steps in Final L ocation 14 mm open-end wrench to turn the nuts counterclockwise on the feet tightly against the washer cabinet. 1. Slide thewasher toitsfinal l ocation. IMPORTANT: If the nuts are not tight against the washer 2.
