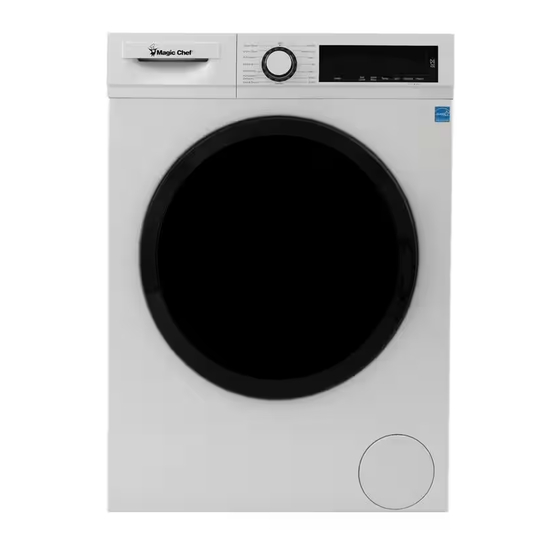

- Page 1 Magic Chef 24" Front Load Washer User’s Manual Models: MCSFLW24W1 PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR WASHER AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a Magic Chef ® product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following: 1. Registering your product will allow us to contact you regarding a safety notification or product update. -
Page 3: Table Of Contents
CONTENTS PRODUCT REGISTRATION..............PRECAUTIONS..................IMPORTANT SAFETY INSTRUCTIONS........... SPECIFICATIONS ..................PARTS AND FEATURES................INSTALLATION INSTRUCTIONS............OPERATION INSTRUCTIONS ..............CARE AND MAINTENANCE..............TROUBLESHOOTING................WARRANTY..................... -
Page 4: Precautions
PRECAUTIONS 1. Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base. 2. The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 DO NOT modify the plug provided with the appliance if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Your washing machine is for domestic use only. Using it for commercial purposes will cause your warranty to be canceled.
- Page 6 DOOR EMERGENCY OPENING FUNCTION When the machine is running, any power cut or when the program is not yet complete, the door will remain locked. To open the door: 1. Turn off the washing machine and remove the power plug from Figure 1 the socket.
- Page 7 RISK OF FALLING AND INJURY • DO NOT climb on your Washing Machine. • Make sure hoses and cables DO NOT cause a trip hazard. • DO NOT turn your Washing Machine upside down or on its side. • DO NOT lift your Washing Machine using the door or detergent drawer. The machine must be carried or moved by at least 2 people •...
-
Page 8: Specifications
SPECIFICATIONS Figure 2 Model MCSFLW24W1 Width 23.46" (597 mm) Height 33.26" (845 mm) Depth 22.91” (582 mm) Net Weight 175 lbs. (79.500 kg) Max. Laundry Capacity 22.05 lbs (10 kg) 110 -120 V ~/60Hz Voltage 1200 Wattage Amperage... -
Page 9: Parts And Features
PARTS IDENTIFICATION Figure 3 Front Rear Display Panel ..f. Pump Filter Cover Program Dial Water Inlet Valve Upper Tray Power Cable Detergent Tray Discharge Hose Drum Transit Bolts... -
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS REMOVING THE TRANSIT BOLTS Figure 4 1. Before operating the washing machine, you must remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty. - Page 11 ELECTRICAL CONNECTION • The washing machine requires a 110-120 V ~/60Hz main power Figure 6 supply. • The power cord is with an grounded plug that should always be inserted to an grounded socket on a 10 amp circuit • If connected to a fuse protected circuit, use time-delay fuses with this appliance.
- Page 12 Once you have made all of the connections, carefully turn the Figure 7 water supply on and check for leaks. Ensure that the new water inlet hoses are not trapped, kinked, twisted, folded or crushed. • If your machine has a hot water inlet connection, the temperature of the hot water supply should not be higher than 158°F.
-
Page 13: Operation Instructions
OPERATION INSTRUCTIONS CONTROL PANEL OPERATION Figure 1 Quick Wash Normal Drum Clean Heavy Duty X-Hot Activewear Towels High Medium Warm Bedding Cool Garment Perm Press Cool Spin Jeans Handwash/ Soil Extra Temp. Spin Options Steam Delay Wool Delicates Level RInse Rinse Spin &... - Page 14 Wash jeans and other dark items. Turn 7.7 lbs. Warm* / inside out when washing. Jeans often 3.5 kgs) Jeans Cool / Tap contains excess dye and may run during Cold the first few washes. Warm* / 5.5 lbs. Wool Woolen items with machine wash labels.
- Page 15 DISPLAY AND PROGRAM OPTIONS Figure 11 X-Hot High Warm Medium Cool Garment Cool Spin Soil Extra Temp. Spin Options Steam Delay Level RInse Delay: Schedule a delayed start for the washer to begin the wash program at a later time between 1-23 hours in 1-hour intervals.
- Page 16 ADDITIONAL FEATURES Child Lock: Press and hold the 'Options' and 'Steam' buttons simultaneously for 3 seconds to activate the Child Lock. The display will flash "CL" and the the washer will lock the controls preventing the wash program and options from being changed. While the child lock is active, if the program dial is moved to the 'Off' position and changed to another program, the washer will continue with the original program when turned back on.
- Page 17 Fabric Softener Compartment Figure 15 Use for fabric softeners, conditioners, and starch. If residues remain after the wash program, try diluting them slightly. (Fig. 15) Figure 16 Pre-Wash Detergent Compartment This compartment should be used only when the pre-wash feature is selected. We recommend that the pre-wash feature is used only for very dirty laundry.
-
Page 18: Care And Maintenance
CARE AND MAINTENANCE To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. Turn the main power supply off and remove the plug from the socket before carrying out maintenance and cleaning of your machine. - Page 19 Cleaning the Pump Filter The pump filter system in your washing machine prolongs the life of the pump by preventing lint from entering your machine. We recommend that you clean the pump filter every 2 months. The pump filter is located behind the cover on the front-lower right corner. Figure 18 To clean the pump filter: 1.
-
Page 20: Troubleshooting
TROUBLESHOOTING You can solve many common merchandiser problems easily, saving you the cost of a possible service call Try the suggestions below to see if you can solve the problem before calling for service. FAULT POSSIBLE CAUSE TROUBLESHOOTING Unit not plugged in. Plug cord into power supply outlet. -
Page 21: Warranty
FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following Hard water. Unsatisfactory the manufacturer’s instructions. washing result. Laundry is too tightly packed. Check that your laundry is spread out. As soon as the Check that the drain hose is at the correct The end of water drain hose is washer is loaded with height. - Page 22 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Model Parts &Labor Type of Service MCSFLW24W1 One-Year In Home For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty...
- Page 24 Magic Chef ® CNA International, Inc. d/b/a MC Appliance Corporation. All rights reserved. Magic Chef is a registered trademark of CNA International, Inc. www.mcappliance.com Printed in Turkey...
