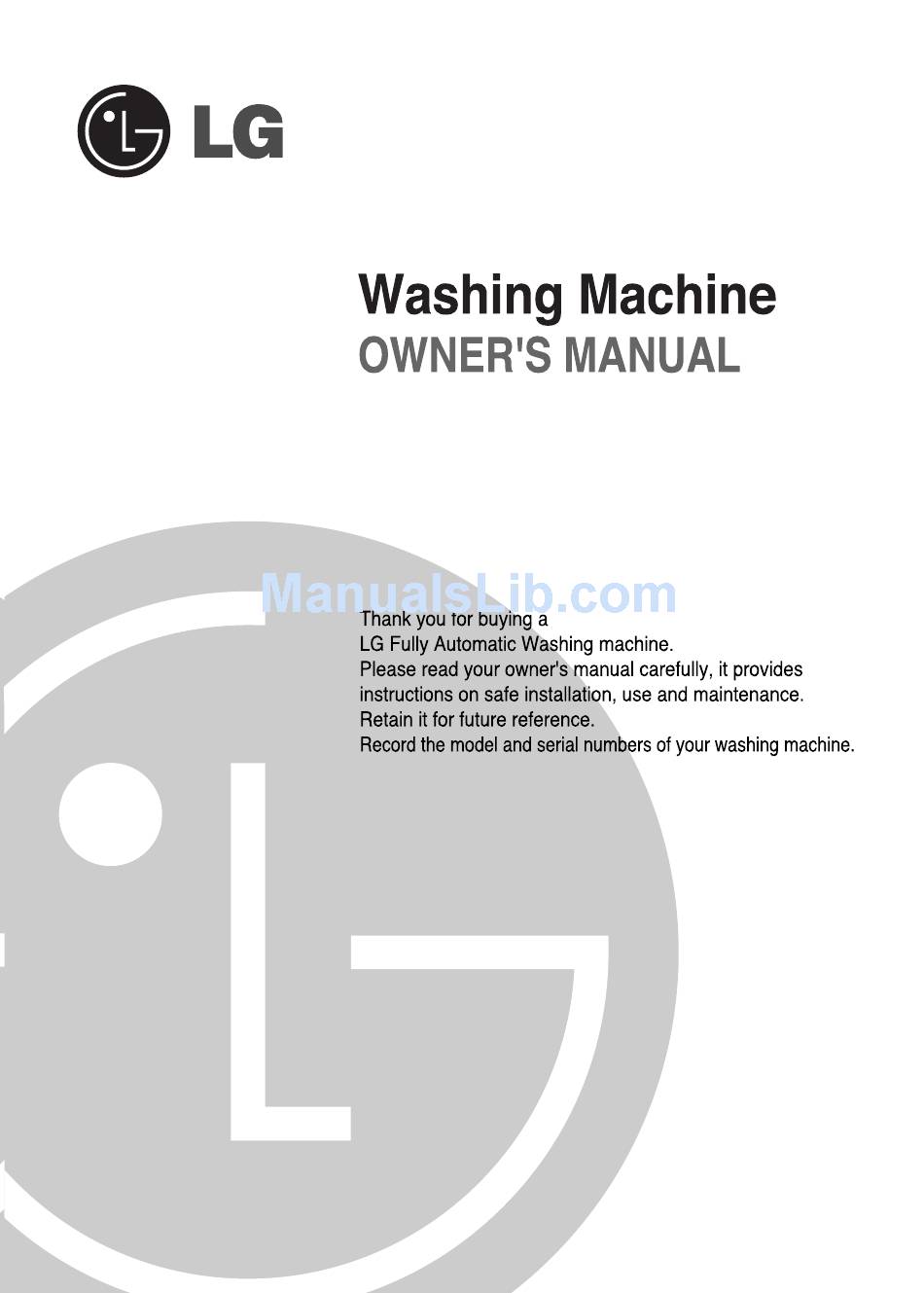

  • Page 1 WD-14331(6)ADK WD-12331(6)ADK WD-15331(6)ADK P/No.: MFL41480176...
  • Page 2: Table Of Contents

    roduct Features I Protection against creases With the alternate rotation of the drum, creasing in the laundry is minimized. I More economical by Intelligent Wash System Intelligent Wash System detects the amount of load and water temperature, and then determines the optimum water level and washing time to minimize energy and water consumption.
  • Page 3: Warnings

    arnings READ ALL INSTRUCTIONS BEFORE USE For your safety, the information in this manual must be followed to minimize WARNING! the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:...
  • Page 4: Installation

    nstallation To minimize the risk of fire in a tumble dryer, the following should be observed: • Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in a tumble dryer. Oil-affected items can ignite spontaneously, especially when exposed to heat sources Such as in a tumble dryer.
  • Page 5: Specifications

    Water consumption : 147 Permissible water pressure : 0.3-10 kgf/ (30-1000 kPa) Spin speed : No Spin/400/600/800/1000/1200/1400 [WD-14331(6)ADK, WD-15331(6)ADK] No Spin/400/600/800/1000/1200 [WD-12331(6)ADK] ❋ The appearance and specifications may be varied without notice to raise the units quality. I Accessories Inlet hose(1EA)
  • Page 6: Installation

    nstallation Install or store where it will not be exposed to temperatures below freezing or exposed to the weather. Properly ground washer to conform with all governing codes and ordinances. The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
  • Page 7 nstallation Installation place requirement Level floor : Allowable slope under entire washer is 1˚ Drain Hose Washer Power outlet : Must be within 1.5 meters of either side of location of washer. Do not overload the outlet with more than one appliance. Laundry Additional Clearance : approx.
  • Page 8: Electrical Connection

    nstallation ■ Electrical connection 1. Do not use an extension cord or double adapter. 2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. 3.
  • Page 9: Normal Tap Without Thread & Screw Type Inlet Hose

    nstallation Normal Tap without thread & screw type inlet hose Unscrew the fixing screw to Push the connector up till the Push the water supply hose attach the tap. rubber packing is in tight contact vertically upwards so that the with the tap.
  • Page 10 nstallation This equipment is not designed for maritime use or for use mobile installations such as caravans, aircraft etc. Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain(gully) in the immediate vicinity. When disposing of the appliance, cut off the mains cable, and destroy the Plug.
  • Page 11: Level Adjustment

    • If possible install the washer in one of the corners of the room, where the floor is more stable. ※ Insert the rubber cups to reduce vibration. ※ Rubber cups ( p/no. 4620ER4002B ) can be purchased from the LG spare parts department. Important! •...
  • Page 12: Care Before Washing

    are before washing I Before the first washing Select a cycle (COTTON 60°C, add a half load of detergent) allow the unit to wash without clothing. This will remove residues and water from the drum that may have been left during manufacturing.
  • Page 13: Adding Detergent

    dding detergent Adding detergent and fabric softener 1. The Dispenser Drawer • Main wash only ➔ • Pre Wash + Main Wash ➔ 2. Adding Fabric Softener • Do not exceed the maximum fill line. Close the dispenser drawer slowly. Overfilling can cause early dispensing of the fabric softener which could stain clothes.
  • Page 14 dding detergent ❋ Tips 3. Detergent dosage Full load : according to • The detergent should be used according to the manufacturer’s recommendation. instruction of the detergent manufacture. Part load : 3/4 of the normal amount. • If too much detergent is used, too many suds Minimum load : 1/2 of full load.
  • Page 15: Function

    unction Recommended courses according to the laundry type Proper Maximum Program Fabric Type Temp. Option Load (Option) First check if laundry is machine washable. 95˚C Rating (white cotton, linen towel and sheets...) - Intensive Cotton - Rinse Hold Colour fast gaments 60˚C - Rinse + (shirts, night dresses,...
  • Page 16: How To Use Washer

    For selecting the each conditions, please - Rinse : 3 times refer to the page17~page24 - Spin : • Press the Start/Pause button. • 1400 rpm [WD-14331(6)ADK, WD-15331(6)ADK] • 1200 rpm [WD-12331(6)ADK] - Water temperature : 60˚C - Program : Cotton...
  • Page 17: Pre Wash

    ow to use washer (5) Button : Rinse + (1) Dial : Program (9) Button : Power (2) Button : Start / Pause (6) Button : Pre Wash (10) Button : Spin (3) Button : Intensive (7) Button : Dry (11) Button : Time Delay (4) Button : Rinse Hold (8) Button : Child Lock...
  • Page 18: Spin Only

    Spin [WD-14331(6)ADK, WD-15331(6)ADK] [WD-12331(6)ADK] • By pressing the Spin button, the spin 1. Spin selection speed can be chosen and the LED of rpm is turned on. • Spin Speed is available according to the program as follows.
  • Page 19: Child Lock

    ow to use washer Water Temp. Child Lock If you choose to lock the buttons on the control assembly to prevent tampering this function may be selected. • Child Lock can be set by pressing the Rinse + button and Pre Wash button simultaneously.
  • Page 20 ow to use washer 1.Drying Automatic guide NOTE NOTE: The estimated drying time varies from the actual drying time with an Automatic. The type of fabric, size of the load, and the dryness selected, do affect the drying times. ➔ ➔...
  • Page 21 ow to use washer Fiber or Leather Materials 2.Drying time guide Baby clothes and Night Gowns Rubber and Plastics Woolen Articles Fiber glass Woven and Loopknit Materials 3.Completion of Drying Permanent Press and Synthetics “Start/Pause”...
  • Page 22: Time Delay

    ow to use washer Program Time Delay Preparing washing before starting “Time Delay” - Turn on the water tap. - Load laundry and close the door. - Place the detergent and fabric softener in the drawer. • 8 programs are available according to the •...
  • Page 23: Door Lock

    Start/Pause button and then the washer will proceed. I Initial program [WD-14331(6)ADK, WD-15331(6)ADK] • Lights whenever the door of the washer is - Cotton Program / Main Wash / locked. Normal Rinse / 1400 rpm / 60˚C •...
  • Page 24 ow to use washer Display 3. Completion of washing 4. Time left 1. Special function display ❋ Cotton 95˚C 2. Self diagnosis display Cotton 60˚C Synthetic Delicate Wool/Silk Hand Wash Quick 30 Rinse+ Spin Drain If these error letters are displayed, please refer to the troubleshooting page29 and follow the guide.
  • Page 25: Maintenance

    aintenance ❋ Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock to avoid electrical shock hazards. ❋ When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the door lock to prevent young children being trapped inside. The water inlet filter - "...
  • Page 26: The Drain Pump Filter

    aintenance I The drain pump filter ❋ The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your machine. CAUTION First drain using the drain hose and then open the pump filter to remove whatever any threads or objects.
  • Page 27: Dispenser Drawer

    aintenance I Dispenser drawer ❋ After a while detergents and fabric softeners leave a deposit in the drawer. • It should be cleaned from time to time with a jet of running water. • If necessary it can be removed completely from the machine by pressing the catch downwards and by pulling it out.
  • Page 28: Cleaning Your Washer

    aintenance I Cleaning your washer 1. Exterior Proper care of your washer can extend its life. The outside of the machine can be cleaned with warm water and a neutral non abrasive household detergent. Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.
  • Page 29: Troubleshooting Guide

    roubleshooting guide ❋ This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately. When the machine does not function properly or does not function at all, check the following points before you contact your service provider.
  • Page 30 roubleshooting guide Symptom Possible Cause Solution Washer does not start • Electrical power cord may not Make sure plug fits tightly in wall be plugged in or connection outlet. may be loose. • House fuse blown, circuit Reset circuit breaker or replace fuse. breaker tripped,or a power Do not increase fuse capacity.
  • Page 31 roubleshooting guide Symptom Possible Cause Solution Check another tap in the house. • Water supply is not adequate in area Fully open tap. • Water supply taps are not completely open. Straighten hose(s). • Water inlet hose(s) are kinked. Check the filter of the inlet hose(s). •...
  • Page 32: Terms Of Warranty

    erms of Warranty What Is Not Covered: • Service trips to your home to teach you how to use the product. • If the product is connected to any voltage other than that shown on the rating plate. • If the fault is caused by accident, neglect, misuse or Act of God. •...
  • Page 33 WD-14331(6)ADK WD-12331(6)ADK WD-15331(6)ADK...
