LG WD(M)-14331(6)AD Owner's Manual

Fully automatic
Hide thumbs


Quick Links

For U.K. Customer
: 0870-592-9929(Service Force)
Mon.-Fri. 8:30AM - 5:30PM
P/No.: 3828ER3040P



  Related Manuals for LG WD(M)-14331(6)AD

  Summary of Contents for LG WD(M)-14331(6)AD

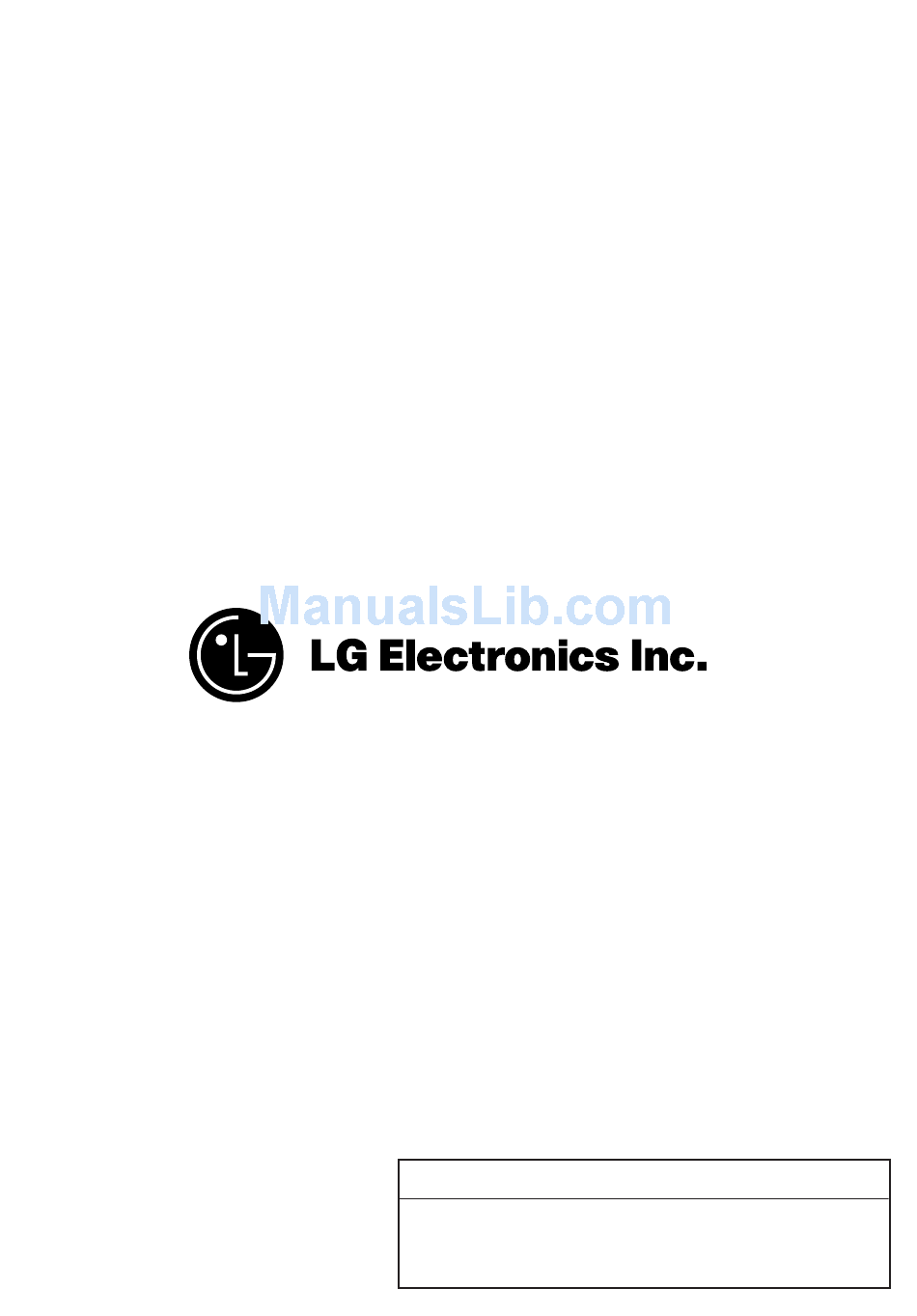

  • Page 1 For U.K. Customer CUSTOMER SERVICES : 0870-592-9929(Service Force) Mon.-Fri. 8:30AM - 5:30PM LGEUK SERVICE WEB-SITE : P/No.: 3828ER3040P...
  • Page 2: Washing Machine

    WD(M)-14331(6)AD WD(M)-12331(6)AD WD-14335AD Thank you for buying a LG Fully Automatic Washing machine. Please read your owner's manual carefully, it provides instructions on safe installation, use and maintenance. Retain it for future reference. Record the model and serial numbers of your washing machine.
  • Page 3: Table Of Contents

    roduct Features I More economical by Intelligent Wash System Intelligent Wash System detects the amount of load and water temperature, and then determines the optimum water level and washing time to minimize energy and water consumption. I Child-Lock The child-lock system is to be used for preventing children from pressing any button to change the program during operation.
  • Page 4: Warnings

    arnings READ ALL INSTRUCTIONS BEFORE USE For your safety, the information in this manual must be followed to minimize WARNING! the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:...
  • Page 5: Installation

    nstallation To minimize the risk of fire in a tumble dryer, the following should be observed: • Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in a tumble dryer. Oil-affected items can ignite spontaneously, especially when exposed to heat sources Such as in a tumble dryer.
  • Page 6: Specifications

    Water consumption : 154 (22 / kg) Permissible water pressure : 0.3-10 kgf/ (30-1000 kPa) Spin speed : No Spin/400/600/800/1000/1200/1400 [WD(M)-14331(6)AD/WD-14335AD] No Spin/400/600/800/1000/1200 [WD(M)-12331(6)AD] ❋ The appearance and specifications may be varied without notice to raise the units quality. I Accessories...
  • Page 7: Installation

    nstallation Install or store where it will not be exposed to temperatures below freezing or exposed to the weather. Properly ground washer to conform with all governing codes and ordinances. The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
  • Page 8: Installation Place Requirement

    nstallation Installation place requirement Level floor : Drain Hose Allowable slope under entire washer is 1˚ Washer Power outlet : Must be within 1.5 meters of either side of location of washer. Do not overload the outlet with more than one appliance. Laundry Additional Clearance : approx.
  • Page 9: Electrical Connection

    nstallation Electrical connection 1. Do not use an extension cord or double adapter. 2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. 3.
  • Page 10 nstallation Normal Tap without thread & screw type inlet hose Unscrew the fixing screw to Push the connector up till the Push the water supply hose attach the tap. rubber packing is in tight contact vertically upwards so that the with the tap.
  • Page 11 nstallation This equipment is not designed for maritime use or for use mobile installations such as caravans, aircraft etc. Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain(gully) in the immediate vicinity. When disposing of the appliance, cut off the mains cable, and destroy the Plug.
  • Page 12: Level Adjustment

    • If possible install the washer in one of the corners of the room, where the floor is more stable. Insert the rubber cups to reduce vibration. Rubber cups ( p/no. 4620ER4002B ) can be purchased from the LG spare parts department. Important! •...
  • Page 13: Care Before Washing

    are before washing Before the first washing Select a cycle (COTTON 60°C, add a half load of detergent) allow the unit to wash without clothing. This will remove residues from the drum that may have been left during manufacturing. Caring before washing 1.
  • Page 14: Adding Detergent

    dding detergent I Adding detergent and fabric softener 1. The Dispenser Drawer 3. Detergent dosage • The detergent should be used according to the instruction of the detergent manufactrurers. • If too much detergent is used, too many suds can occur and this will decrease the washing result or cause heavy load to the motor.
  • Page 15: Function

    unction Recommended courses according to the laundry type ❋ ( ) : WD-12331(6)AD Proper Time Maximum Program Fabric Type Temp. Option Load (Option) Minutes First check if laundry is machine washable. 95˚C Rating (137) (white cotton, linen towel and sheets...) Intensive Cotton Rinse Hold...
  • Page 16: How To Use Washer

    - Wash : main wash For selecting the each conditions, please - Rinse : 3 times refer to the page16~page23 - Spin : 1400 rpm [WD(M)-14331(6)AD • Press the Start/Pause( ) button. / WD-14335AD] 1200 rpm [WD(M)-12331(6)AD] - Water temperature : 60˚C...
  • Page 17: Pre Wash

    ow to use washer (5) Button : Rinse + (1) Dial : Program (9) Button : Power (2) Button : Start / Pause (6) Button : Pre Wash (10) Button : Spin (3) Button : Intensive (7) Button : Dry (11) Button : Time Delay (4) Button : Rinse Hold (8) Button : Child Lock...
  • Page 18 LED of rpm is turned on. • Spin Speed is available according to the program as follows. • WD(M)-14331(6)AD / WD-14335AD - Cotton, Rinse+Spin, Quick 30 No Spin - 400 - 600 - 800 - 1000 - 1200 - 1400...
  • Page 19: Child Lock

    ow to use washer Water Temp. Child Lock If you choose to lock the buttons on the control assembly to prevent tampering this function may be selected. 1. Child Lock • Child Lock can be set by pressing the Rinse + button and Pre Wash button •...
  • Page 20 ow to use washer The drying capacity for this model 1.Drying Automatic guide NOTE is 3.5 kg. Please remove approprate excess weight before • Use your Automatic Cycles to dry most commencing the drying cycle. loads. Electronic sensors measures the •...
  • Page 21 ow to use washer Fiber or Leather Materials 2.Drying time guide - Always check the manufacture’s instructions. • By press the Dry button, the drying time can be selected. Baby clothes and Night Gowns • Drying course can last up to 150min. When selecting drying only, drying - Always check the manufacture’s instructions.
  • Page 22: Time Delay

    ow to use washer Program Time Delay 1. Time Delay Preparing washing before starting “Time Delay” - Turn on the water tap. - Load laundry and close the door. • 8 programs are available according to the - Place the detergent and fabric softener laundry type.
  • Page 23 Start/Pause or at the end of the wash cycle. button and then the washer will proceed. Initial program [WD(M)-14331(6)AD / WD-14335AD] - Cotton Program / Main Wash / Door Lock Normal Rinse / 1400 rpm / 60˚C...
  • Page 24 ow to use washer Display 3. Completion of washing • When washing cycle is completed, “ ” is displayed. 1. Special function display 4. Time left • When child lock is selected, the • During washing cycle, the remaining “ ”...
  • Page 25: Maintenance

    aintenance ❋ Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock to avoid electrical shock hazards. ❋ When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the door lock to prevent young children being trapped inside. The water inlet filter - "...
  • Page 26: Dispenser Drawer

    aintenance I Dispenser drawer ❋ After a while detergents and fabric softeners leave a deposit in the drawer. • It should be cleaned from time to time with a jet of running water. • If necessary it can be removed completely from the machine by pressing the catch downwards and by pulling it out.
  • Page 27: Cleaning Your Washer

    aintenance I Cleaning your washer 1. Exterior Proper care of your washer can extend its life. The outside of the machine can be cleaned with warm water and a neutral non abrasive household detergent. Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.
  • Page 28: Troubleshooting Guide

    roubleshooting guide ❋ This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately. When the machine does not function properly or does not function at all, check the following points before you contact your service provider.
  • Page 29 roubleshooting guide Symptom Possible Cause Solution Washer does not start • Electrical power cord may not Make sure plug fits tightly in wall be plugged in or connection outlet. may be loose. • House fuse blown, circuit Reset circuit breaker or replace fuse. breaker tripped,or a power Do not increase fuse capacity.
  • Page 30 roubleshooting guide Symptom Possible Cause Solution Check another tap in the house. • Water supply is not adequate in area Fully open tap. • Water supply taps are not completely open. Straighten hose(s). • Water inlet hose(s) are kinked. Check the filter of the inlet hose(s). •...
  • Page 31: Terms Of Warranty

    erms of Warranty Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
