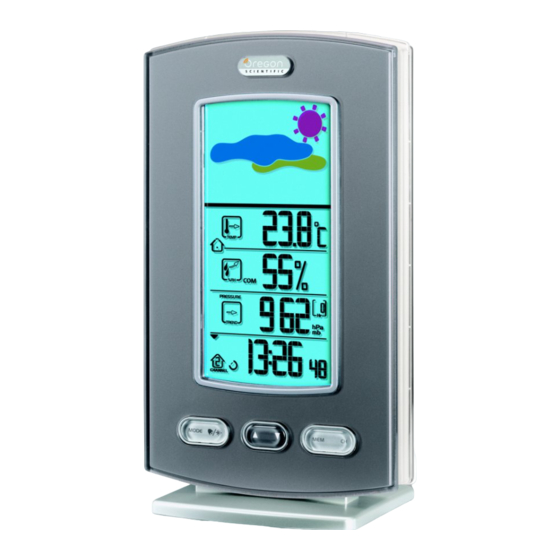

Wireless Weather Station
Model: BAR826HG
USER MANUAL
CONTENTS
Introduction .............................................................. 2
Product Overview .................................................... 3
Front View .............................................................. 3
Back View .............................................................. 4
Table Stand and Wall Mount .................................. 5
Remote Sensor (RTGR328N) ................................ 7
Getting Started ......................................................... 8
Batteries ................................................................. 8
Change Settings .................................................... 9
Remote Sensor ......................................................... 9
Set Up Thermo / Hygro Sensor (RTGR328N) ....... 9
Sensor Data Transmission .................................. 10
Search for Sensor ................................................ 11
Clock and Calendar ............................................... 11
Radio-Controlled Clock ........................................ 11
Turn Radio-Controlled Clock ON / OFF ............... 12
Set Clock ............................................................. 12
Switch Clock Display ........................................... 12
Alarms ..................................................................... 13
Set Daily Alarm .................................................... 13
BAR826HG_UM_EN.P65
Barometer ............................................................... 14
Weather Forecast ................................................... 15
Temperature and Humidity .................................... 15
Backlight ................................................................. 17
Reset System ......................................................... 17
Safety and Care ...................................................... 17
Warnings ................................................................. 17
Troubleshooting ..................................................... 18
Specifications ......................................................... 18
About Oregon Scientific ........................................ 20
EC-Declaration of Conformity ............................... 20
1
1
Set Pre-Alarm ...................................................... 13
Activate Alarm ...................................................... 14
Snooze ................................................................ 14
View Barometer Area ........................................... 14
Select Measurement Unit .................................... 14
View Barometer History ....................................... 14
Set Altitude ........................................................... 14
Weather Forecast Icons ....................................... 15
View Temperature and Humidity Area ................. 16
Select Measurement Unit .................................... 16
Select Sensor Channel ........................................ 16
Minimum / Maximum Records ............................. 16
Temp, Humidity & Pressure Trend ....................... 16
Comfort Zone ....................................................... 17
2005.3.8, 11:20 AM
Advertisement
Table of Contents
Related Manuals for Oregon Scientific BAR826HG
Summary of Contents for Oregon Scientific BAR826HG
-
Page 1: Table Of Contents
Troubleshooting ............. 18 Turn Radio-Controlled Clock ON / OFF ....12 Specifications ............18 Set Clock ............. 12 About Oregon Scientific ........20 Switch Clock Display ........... 12 EC-Declaration of Conformity ....... 20 Alarms ..............13 Set Daily Alarm ............ 13 BAR826HG_UM_EN.P65... -
Page 2: Introduction
INTRODUCTION Thank you for selecting the Oregon Scientific Wireless Weather Station (BAR826HG). This powerful device bundles time keeping, weather monitoring, indoor and outdoor temperature and humidity readings, barometric pressure trends and altitude adjustment, into a single tool you can use from the convenience of your home. -
Page 3: Product Overview
PRODUCT OVERVIEW FRONT VIEW 1. SNOOZE / LIGHT: Activate 8-minute snooze or backlight 2. LCD display 3. Weather Forecast Area: Animated weather forecast 4. Temperature / Humidity Area: Readings and trend lines; sensor channel number 5. Barometer Area: Barometric pressure readings and trend lines 6. -
Page 4: Back View
BACK VIEW 1. Wall mount 2. Ventilation holes 3. Table stand 4. °C / °F switch 5. RESET button 6. mb / inHg switch 7. Battery compartment (cover off) BAR826HG_UM_EN.P65 2005.3.8, 11:20 AM... -
Page 5: Table Stand And Wall Mount
TABLE STAND AND WALL MOUNT Weather Forecast Area To fix the table stand on to the base of the main unit: To mount the unit on the wall: 1. Low battery icon for main unit 2. Weather display BAR826HG_UM_EN.P65 2005.3.8, 11:21 AM... - Page 6 Barometer Area Temperature / Humidity Area 1. Barometric pressure trend 2. Barometric pressure reading 3. Barometric pressure history e.g., -1 means barometric pressure value one hour ago, 1. Selected Area icon -2 means 2 hours ago etc 2. Temperature trend 4.
-
Page 7: Remote Sensor (Rtgr328N)
REMOTE SENSOR (RTGR328N) 1. Signal reception 2. Channel number 3. Low battery icon 4. Time 5. Temp (°C or °F) 1. LCD display 6. Humidity % 2. LED status indicator 7. Temp / Humidity 3. Ventilation duct BAR826HG_UM_EN.P65 2005.3.8, 11:21 AM... -
Page 8: Overview
GETTING STARTED BATTERIES Batteries are supplied with this product: • Main unit 3 x UM-3 (AA) 1.5V • Remote unit 2 x UM-3 (AA) 1.5V Insert batteries before first use, matching the polarity as shown in the battery compartment. For best results, install batteries in the remote sensor before the main unit. -
Page 9: Change Settings
NOTE It is recommended that you use alkaline REMOTE SENSOR batteries with this product for longer performance. This product is shipped with the RTGR328N Thermo / Hygro Sensor. The main unit can collect data from up to UNIT LOCATION 5 Thermo / Hygro Sensors. The main unit is compatible Main Weather Forecast Area with the following sensors:... -
Page 10: Sensor Data Transmission
4. Press RESET. Then set the temperature unit. • Position the sensor close to the main unit during cold winter months as below-freezing temperatures may SWITCH OPTION affect battery performance and signal transmission. Temp °C / °F 5. Close the battery compartment. NOTE The transmission range may vary and is subject to the receiving range of the main unit. -
Page 11: Search For Sensor
Initial reception takes 2-10 minutes, and is initiated when SEARCH FOR SENSOR you first set up the unit, and whenever you press RESET. To search for a Thermo / Hygro sensor, press MODE to Once complete, the reception icon will stop blinking. navigate to the Temperature / Humidity Area. -
Page 12: Turn Radio-Controlled Clock On / Off
1. Press MODE to navigate to the Clock Area. will NOTE To force a manual search for RF clock reception, press and hold SEARCH on the sensor show next to the Area. (RTGR328N) for 2 seconds. 2. Press and hold MODE for 2 seconds. 3. -
Page 13: Alarms
SET PRE-ALARM ALARMS The Pre-Alarm can be set to sound 15, 30, 45, or 60 This product has 2 alarms: The Daily Alarm and a Pre- minutes before the Daily Alarm. It will sound whenever Alarm for snowy weather. The Daily Alarm can be set to the recorded temperature from Channel 1 Sensor falls go off at the same time every day. -
Page 14: Activate Alarm
ACTIVATE ALARM SELECT MEASUREMENT UNIT Navigate to the Clock Area, then press to switch Slide the mb / inHg switch (in the clock battery to Daily Alarm or Pre-Alarm view. To activate or compartment), to change the display unit. deactivate the alarm, press VIEW BAROMETER HISTORY When the alarm time is reached, the backlight will be on Navigate to the Barometer Area. -
Page 15: Weather Forecast
WEATHER FORECAST ICON DESCRIPTION This product forecasts the next 12 to 24 hours of weather Rainy within a 30-50 km (19-31 mile) radius. The forecast is based on barometric pressure trend readings. Snowy The top area shows an animated icon indicating the NOTE The night time icon displays from 6 PM to 6 AM. -
Page 16: View Temperature And Humidity Area
• To end auto-scan, press CH or MEM with the VIEW TEMPERATURE AND HUMIDITY AREA Temperature / Humidity Area selected. Press MODE to navigate to the Temperature and Humidity Areas. NOTE If you select a sensor that collects only temperature data, the humidity will not be shown. Temperature data is given at the top;... -
Page 17: Comfort Zone
>70% This product is designed to give you years of service if 20-25°C 40-70% handled properly. Oregon Scientific will not be (68-77°F) responsible for any deviations in the usage of the device <40% from those specified in the user instructions or any unapproved alterations or repairs of the product. -
Page 18: Troubleshooting
TROUBLESHOOTING SPECIFICATIONS Main Unit Dimensions PROBLEM SYMPTOM REMEDY L x W x H 120 x 67 x 205 mm Barometer Strange Set altitude / unit (4.7 x 2.6 x 8.1 inches) readings Weight 364 grams (12.8 ounces) Calendar Strange Change language without battery date / month... - Page 19 Barometer Alarm Daily & Pre-Alarm; 2-minute crescendo Unit mb / hPa or inHg Snooze 8-minute snooze Resolution 1 mb (0.03 inHg) Altitude -100 to 2500 metres Power (-328 to 8202 feet) Display Sunny (day / night), Main Unit partly cloudy (day / night), cloudy, rainy, Batteries 3 x UM-3 (AA) 1.5V...
-
Page 20: About Oregon Scientific
EC-DECLARATION OF CONFORMITY Hereby, Oregon Scientific, declares that this Wireless Visit our website (www.oregonscientific.com) to learn Weather Station (BAR826HG) is in compliance with the more about Oregon Scientific products such as digital essential requirements and other relevant provisions of cameras; MP3 players; children's electronic learning Directive 1999/5/EC. - Page 21 Wireless Weather Station Model: BAR826HG USER MANUAL BAR826HG_UM_EN.P65 2005.3.8, 11:21 AM...
- Page 22 © 2005 Oregon Scientific. All rights reserved. 086-003808-011 BAR826HG_UM_EN.P65 2005.3.8, 11:21 AM...
