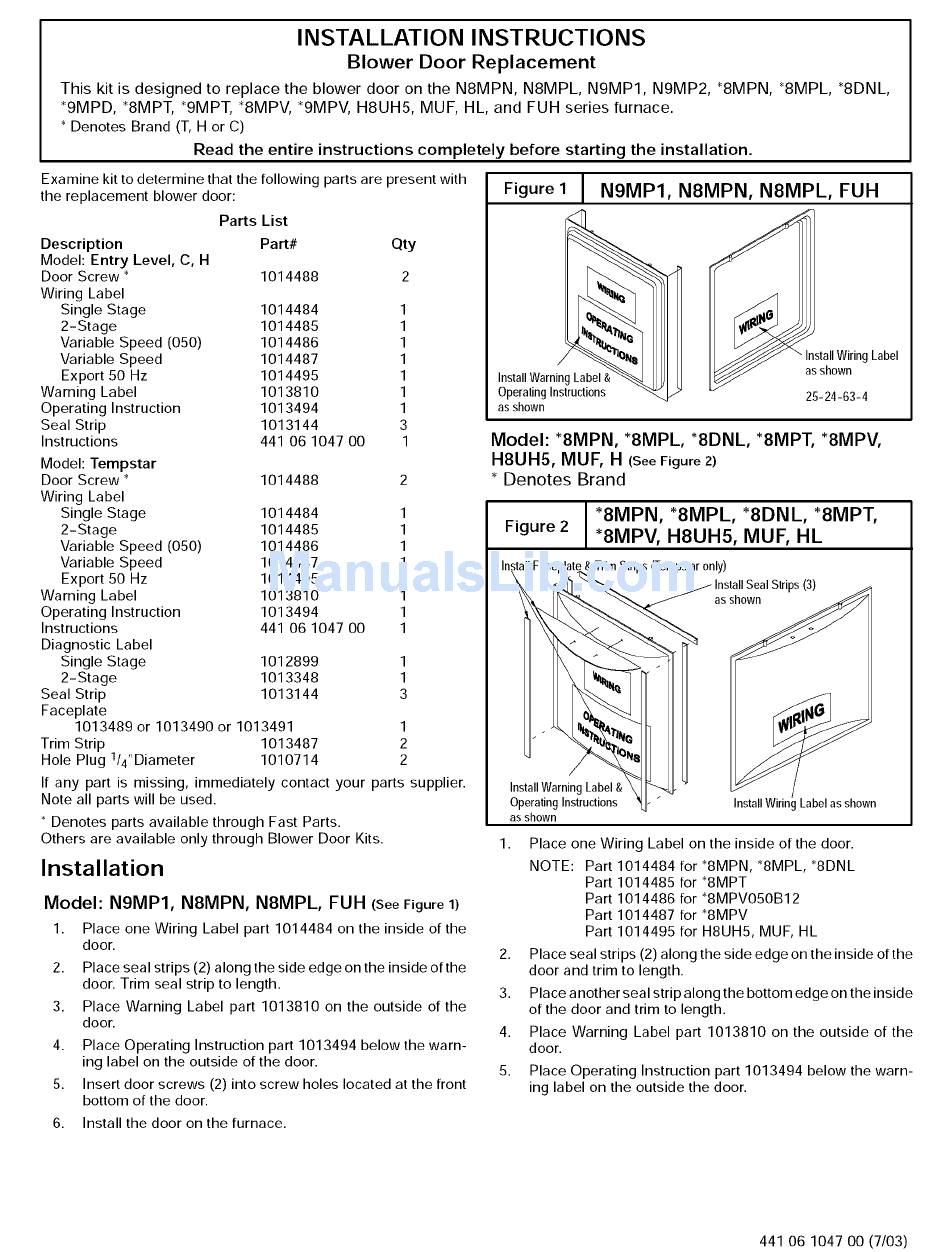

ICP H8MPT100J20A1 Installation Instructions

INSTALLATION INSTRUCTIONS
Blower Door Replacement
This kit is designed to replace the blower door on the N8MPN, N8MPL, N9MP1, N9MP2, *8MPN, *8MPL, *8DNL,
*9MPD, *8MPT, *9MPT, *8MPV, *9MPV, H8UHh, MUF, HL, and FUH series furnace.
* Denotes Brand (T, H or C)
Read the entire instructions completely before starting the installation.
Examine kit to determine that the following parts are present with
the replacement blower door:
Parts List
Description Part# Qty
Model: Entry Level, C, H
Door Screw * 1014488 2
Wiring Label
Single Stage 1014484 1
2-Stage 1014485 1
Variable Speed (050) 1014486 1
Variable Speed 1014487 1
Export 50 Hz 1014495 1
Warning Label 1013810 1
Operating Instruction 1013494 1
Seal Strip 1013144 3
Instructions 441 06 1047 00 1
Model: Tempstar
Door Screw * 1014488 2
Wiring Label
Single Stage 1014484 1
2-Stage 1014485 1
Variable Speed (050) 1014486 1
Variable Speed 1014487 1
Export 50 Hz 1014495 1
Warning Label 1013810 1
Operating Instruction 1013494 1
Instructions 441 06 1047 00 1
Diagnostic Label
Single Stage 1012899 1
2-Stage 1013348 1
Seal Strip 1013144 3
Faceplate
1013489 or 1013490 or 1013491 1
Trim Strip 1013487 2
Hole Plug 1/4"Diameter 1010714 2
If any part is missing, immediately contact your parts supplier.
Note all parts will be used.
* Denotes parts available through Fast Parts.
Others are available only through Blower Door Kits.
Installation
Model: N9MP1, N8MPN, N8MPL, FUH (SeeFigure 1)
1. Place one Wiring Label part 1014484 on the inside of the
door.
2. Place seal strips (2) along the side edge on the inside of the
door. Trim seal strip to length.
3. Place Warning Label part 1013810 on the outside of the
door.
4. Place Operating Instruction part 1013494 below the warn-
ing label on the outside of the door.
5. Insert door screws (2) into screw holes located at the front
bottom of the door.
Figure
1
I N9MP1, N8MPN, N8MPL, FUH
g Label
asshown
InstallWarning Label &
OperatingInstructions 25-24-63-4
as shown
Model: *SMPN, *SMPL, *8DNL, *8MPT, *SMPV,
H8UHh, MUF, H (SeeFigure2)
* Denotes Brand
*8MPN, *SMPL, *SDNL, *SMPT,
Figure 2 *SMPV, H8UHh, MUF, HL
Install Faceplate& Trim Strips (Tempstaronly)
r_ _ /Install Seal Strips (3)
\\\ \_"_,_ "': _ as shown
InstalIWarning Label & \ _
Operating Instructions _]- " Label as shown
asshown
1. Place one Wiring Label on the inside of the door.
NOTE: Part 1014484 for *8MPN, *8MPL, *8DNL
Part 1014485 for *8MPT
Part 1014486 for *8MPV050B12
Part 1014487 for *8MPV
Part 1014495 for H8UHh, MUF, HL
2. Place seal strips (2) along the side edge on the inside of the
door and trim to length.
3. Place another seal strip along the bottom edge on the inside
of the door and trim to length.
4. Place Warning Label part 1013810 on the outside of the
door.
5. Place Operating Instruction part 1013494 below the warn-
ing label on the outside the door.
6. Install the door on the furnace.
441 06 1047 00 (7/03)
