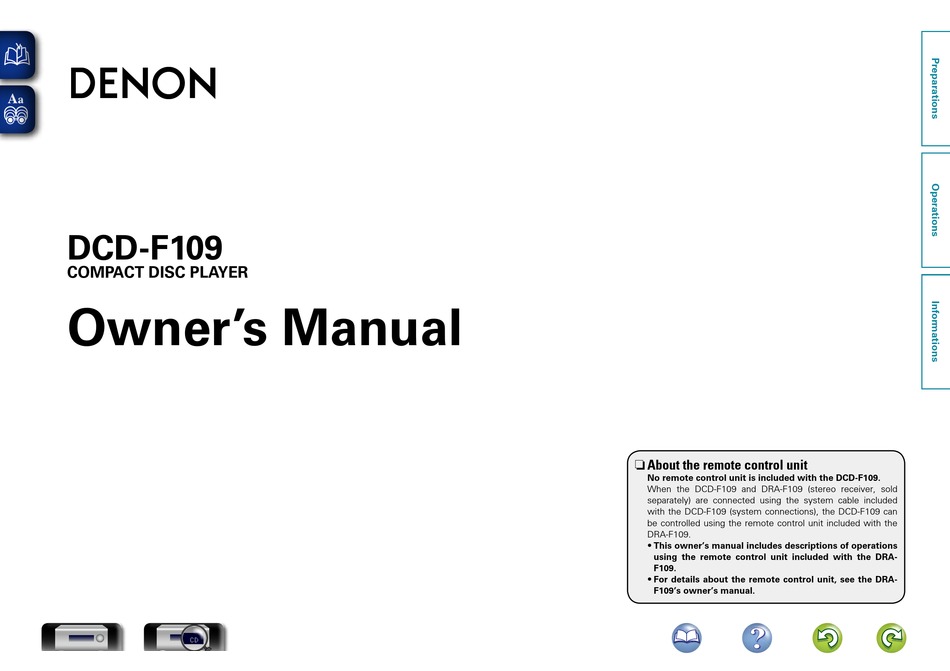

DCD-F109
COMPACT DISC PLAYER
Owner's Manual
CD
n About the remote control unit
No remote control unit is included with the DCD-F109.
When the DCD-F109 and DRA-F109 (stereo receiver, sold
separately) are connected using the system cable included
with the DCD-F109 (system connections), the DCD-F109 can
be controlled using the remote control unit included with the
DRA-F109.
• This owner's manual includes descriptions of operations
using the remote control unit included with the DRA-
F109.
• For details about the remote control unit, see the DRA-
F109's owner's manual.

Advertisement

Table of Contents
loading

Related Manuals for Denon DCD-F109

Summary of Contents for Denon DCD-F109

  • Page 1 COMPACT DISC PLAYER Owner’s Manual n About the remote control unit No remote control unit is included with the DCD-F109. When the DCD-F109 and DRA-F109 (stereo receiver, sold separately) are connected using the system cable included with the DCD-F109 (system connections), the DCD-F109 can be controlled using the remote control unit included with the DRA-F109.

  • Page 2: Safety Precautions

    Directive 2009/125/EC for Energy-related Products (ErP). Follow all instructions. CAUTION: Do not use this apparatus near water. DENON EUROPE Clean only with dry cloth. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE Division of D&M Germany GmbH Do not block any ventilation openings.

  • Page 3: Notes On Use

    n CAUTIONS ON INSTALLATION NOTES ON USE WARNINGS • Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack. • Handle the power cord carefully. Hold the plug when unplugging the cord. • Keep the unit free from moisture, water, and dust. • Unplug the power cord when not using the unit for long periods of time.

  • Page 4: Table Of Contents

    Getting Started Thank you for purchasing this DENON product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference. Contents Getting Started ·············································································1 Operations Informations ················································································7...

  • Page 5: Accessories

    About the remote control unit No remote control unit is included with the DCD-F109. When the DCD-F109 and DRA-F109 (stereo receiver, sold separately) are connected using the system cable included...

  • Page 6: Preparations

    Preparations Preparations Here, we explain the connection methods for this unit. F Connecting the DIGITAL OUT connector vpage 4 F Connecting an iPod or USB memory device to the USB port vpage 5 F Connecting the power cord vpage 6...

  • Page 7: Connections

    Connections Connecting the DIGITAL OUT connector For system connections, also see the section “Making system connections” (vpage 17). Amplifier NOTE AUDIO • Do not plug in the power cord until all connections have been completed. COAXIAL • When making connections, also refer to the operating instructions of the other components. • Do not bundle power cords together with connection cables.

  • Page 8: Connecting An Ipod Or Usb Memory Device To The Usb Port

    • iPod nano • iPod touch DENON does not guarantee that all USB memory devices will operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, use the AC adapter.

  • Page 9: Connecting The Power Cord

    • Do not bundle power cords together with connection cables. Doing so can result in humming or noise. • Insert the AC plugs securely. Incomplete connections could cause noise. Do not unplug the power cord before the power indicator turns off and the DCD-F109 enters Standby mode.

  • Page 10: Operations

    Operations Operations Here, we explain functions and operations that let you make better use of this unit. F Basic operation vpage 8 F Advanced operation vpage 11 F About system functions vpage 17...

  • Page 11: Basic Operation

    The power indicator turns off, and so does playback starts. the power. No remote control unit is included with the DCD-F109. For the “USB” playback media mode: The device connected to When the DCD-F109 and DRA-F109 (stereo receiver, sold the USB port is played.

  • Page 12: Playing Cds

    Playing CDs Playing CDs Playing repeatedly (Repeat playback) Playing random order (Random playback) Playback preparation Press REPEAT In the stop mode, press (vpage 8 “Before playing RANDOM Playback in the respective repeat mode starts. a disc”). The “RANDOM” indicator lights. Press The tracks start playing in random order.

  • Page 13: Playing Tracks In The Desired Order

    Playing CDs Playing tracks in the desired order n Checking the order of the programmed tracks Switching the display In the stop mode, press (Program playback) INFO Press The track numbers are displayed in the programmed order each time the button is pressed. Up to 25 tracks can be programmed.

  • Page 14: Advanced Operation

    When the USB memory device or iPod is connected to the USB n Playing MP3 and WMA files (vpage 12) port on the DCD-F109, the source media mode automatically For playback of files on CD-R or CD-RW , files in all folders on the first n Playing an iPod (vpage 14)

  • Page 15: Playing Mp3 And Wma Files

    The music (files) downloaded from such sites can be stored CD-R and CD-RW discs created in the format described below can on CD-R or CD-RW discs and played on the DCD-F109. be played. containing music files in the MP3...

  • Page 16: Switching The Display

    Playing MP3 and WMA files n To switch the folder or file during playback n To play repeatedly REPEAT Press Folder Playback starts in the respective repeat mode. to select the folder, then press ENTER • The selectable repeat modes differ in the “Folder Mode” and the “Disc Mode”.

  • Page 17: Playing An Ipod

    Playing an iPod n Remote control and iPod button relations With the DCD-F109, you can listen to music on an iPod. It is also Playback preparation possible to operate the iPod from the main unit or remote control unit. (vpage 11 “Before playing a...

  • Page 18: Playable Usb Memory Formats

    Playing a USB memory device n To switch the folder or file during playback Playable USB memory formats Playing USB memory device • Folder ENTER Playback preparation to select the folder, then press Files stored on USB memory devices created in the formats below • File can be played.

  • Page 19: Convenient Functions

    NOTE • When you press and hold on this unit for 5 seconds again, this • DENON will take no responsibility whatsoever for any loss or unit exits the standby mode. damage to data on USB memory devices when using the USB memory device connected to the DCD-F109.

  • Page 20: About System Functions

    In addition to connection of the audio cables, also connect the Auto power on function system cable because they are incompatible. system cable. Also, connect the DCD-F109’s power cord to the AC outlet on the Device supporting system iPod/USB When (CD) is DRA-F109 (stereo receiver, sold separately).

  • Page 21: Informations

    Informations Informations Here, we list various information related to this unit. Please refer to this information as needed. F Part names and functions vpage 19 F Other information vpage 20 F Troubleshooting vpage 21 F Specifications vpage 23 F Index vpage 23...

  • Page 22: Part Names And Functions

    Part names and functions For buttons not explained here, see the page indicated in parentheses ( ). Front panel Display Information display Total time indicator Various information is displayed here, depending Lights when the total number of tracks and total on the operation mode.

  • Page 23: Other Information

    Other information Discs Loading discs Cautions on storing discs Discs playable on this unit • Set the disc with the labeled side facing up. • Be sure to remove discs after using them. Music CDs • Make sure the disc tray is fully open when inserting the disc. • Be sure to store discs in their cases to protect them from dust, Discs marked with the logotype below can be played in this unit.

  • Page 24: Explanation Terms

    Cause Countermeasure Page Set does not work • The system cable between the • Connect securely. properly when DCD-F109 and DRA-F109 is not remote control properly connected. unit operated. • Batteries are worn. • Replace with new batteries. – • You are operating outside of the • Operate the remote control unit...
  • Page 25 • A USB memory device that • This is not a malfunction. DENON – button • The playback media mode is set • Switch the playback media mode the set cannot recognize is does not guarantee that all USB is pressed.

  • Page 26: Specifications

    Index Specifications n CD section Accessories ·························································· 2 Playback Auto standby ······················································ 16 CD ······································································ 9 • Digital output iPod ·································································· 14 Output level (coaxial): 0.5 Vp-p, 75 Ω MP3 ································································· 12 n General Program playback ············································ 10 Bit rate ···················································· 12, 15, 21 Power supply: AC 230 V, 50/60 Hz Random playback·········································...
  • Page 27 Dimensions Unit : mm 250.0 30.0 30.0 190.0 30.0 Weight : 2.8 kg...
