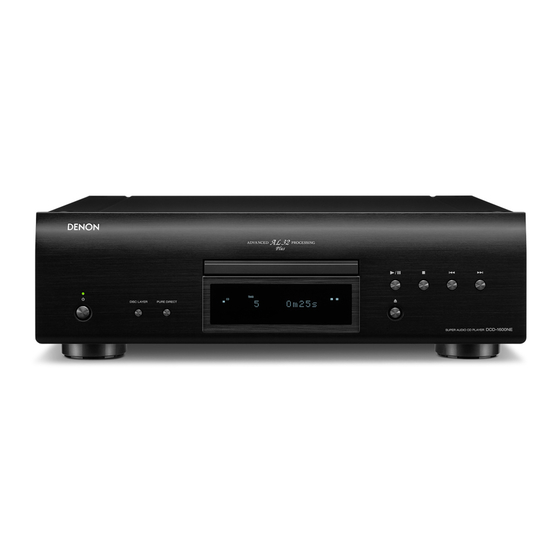

DCD-1600NE
SUPER AUDIO CD PLAYER
Owner's Manual
You can print more than one page of a PDF onto a single sheet of paper.
1
Front panel
Display
Rear panel
Remote
Index
