Summary of Contents for LG L1960SR

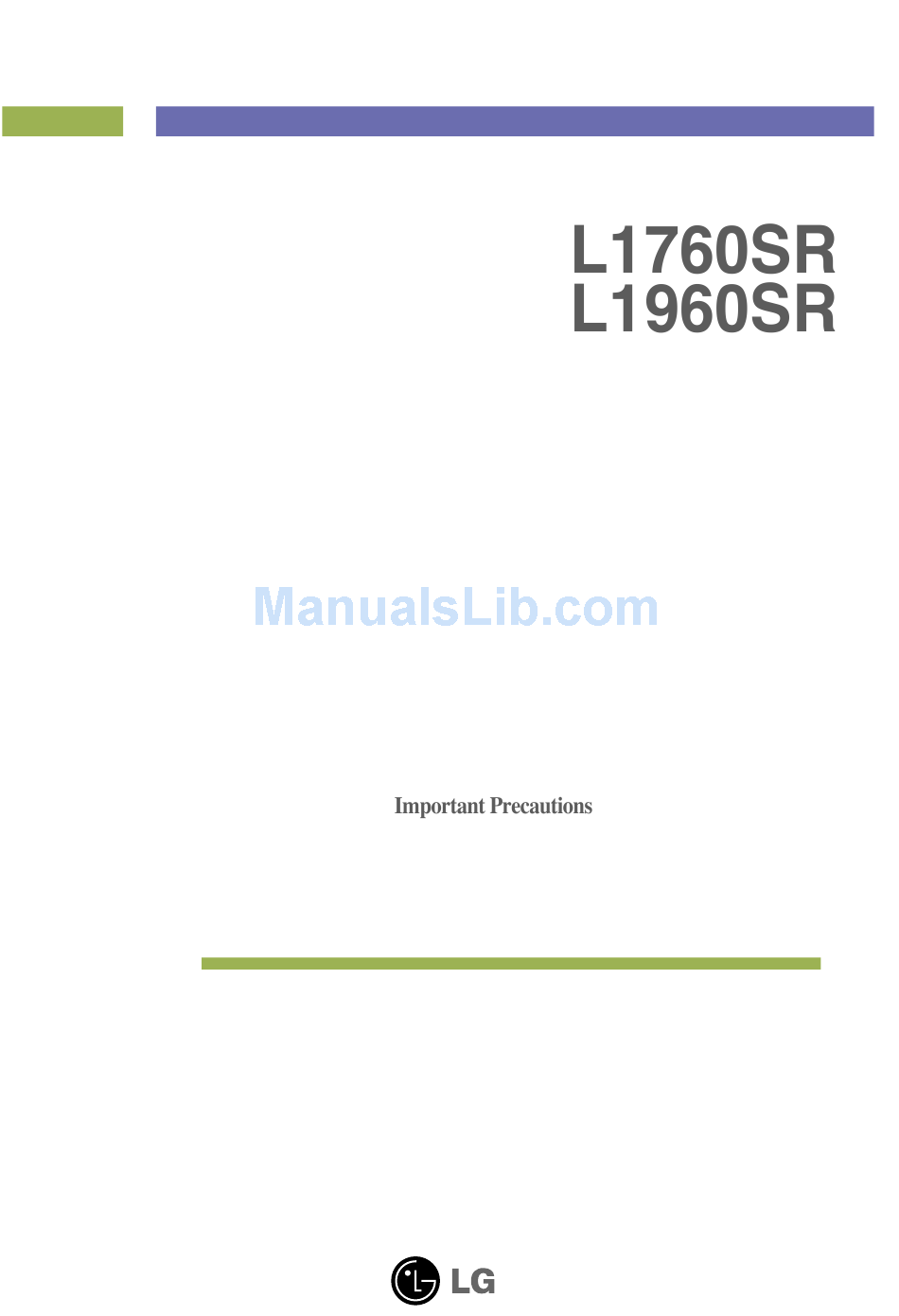

  • Page 1 User’s Guide ake sure to read the before using the monitor. Keep the User's Guide(CD) in an accessible place for furture reference. ee the label attached on the monitor and give the information to your dealer when you ask for service.
  • Page 2 On Safety Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.
  • Page 3 On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
  • Page 4 Attaching/Separating the stand base Place the monitor with its front facing downward on a soft cloth. Make sure the stand base directs to the correct direction(Front, Rear) and turn the locking device at the bottom to OPEN to assemble the unit. After assembling the unit, turn the locking device to LOCK before use.
  • Page 5 To attach or separate the back cap To attach the back cap, fix into the 3 holes first then slide it up to fit to the upper groove. (To connect the cable, see page A5 for reference.) To separate the back cap, hold the bottom part and pull it out.
  • Page 6: Connecting With The Pc

    Connecting with the PC Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connect the signal cable . When attached, tighten the thumbscrews to secure the connection. Connect the power cable with the AC-DC adapter (AC-DC power supply) , and...
  • Page 7 Side Front Panel Controls...
  • Page 9: Screen Adjustment

    Screen Adjustment Allow the display to stabilize for at least 30 minutes before making image adjustments. To make adjustments in the On Screen Display, follow these steps: Press the MENU Button, then the main menu of the OSD appears. To access a control, use the - or + Buttons. When the icon you want becomes highlighted, press the SET/AUTO Button.
  • Page 10 The order of icons may differ depending on the model (A9~A13).
  • Page 11 OSD (On Screen Display) menu languages on the monitor may differ from the manual.
  • Page 12 Main menu Sub menu Description...
  • Page 13 Main menu Sub menu Description...
  • Page 14 Main menu Sub menu Description...
  • Page 15: No Image Appears

    No image appears No image appears Do you see a "OSD LOCKED" message on the screen?
  • Page 16 Display image is incorrect...
  • Page 17 Have you installed the display driver?
  • Page 18 17 inch Display Sync Input Video Input Resolution Plug&Play Power Consumption Dimensions &Weight Width x Height x Depth Tilt Range Power Input AC-DC Adapter DVE, DSA-0421S-12 1 42 or Lien Chang, LCAP07F Environmental Conditions Stand Base Power cord NOTE Information in this document is subject to change without notice.
  • Page 19 DVE, DSA-0421S-12 1 42 or Lien Chang, LCAP07F Information in this document is subject to change without notice.
  • Page 20: Preset Modes (Resolution)

    Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) Indicator MODE LED Color...
  • Page 21 Place the monitor with its front facing downward on a soft cloth. Separating the back cap Press and hold on to the button on the right side of the stand body and fold the stand base in the direction of the arrow which it indicates. Install the Wall mount plate.
  • Page 22 Digitally yours...
