LOCATION
CARBON MONOXIDE POISONING AND UNIT
DAMAGE HAZARD
Failure to follow this warning could result in personal
injury or death, and unit component damage.
Corrosive or contaminated
air may cause failure of parts
containing
flue gas, which
could leak into the living
space. Air for combustion must not be contaminated
by
halogen
compounds,
which include fluoride,
chloride,
bromide, and iodide. These elements can corrode heat
exchangers
and shorten furnace life. Air contaminants
are found
in aerosol
sprays,
detergents,
bleaches,
cleaning
solvents,
salts,
air fresheners,
and
other
household products. Do not install furnace in a corrosive
or contaminated atmosphere.
Make sure all combustion
and circulating air requirements
are met, in addition to
all local codes and ordinances.
GENERAL
This multipoise furnace is shipped in packaged configuration.
Some assembly and modifications are required when used in
any of the four applications
shown in Figure 4.
This furnace must:
be installed so the electrical components are protec-
ted from water.
not be installed directly on any combustible material
other than wood flooring for upflow applications.
Downflow installations require use of a factory-ap-
proved floor base, coil model numbers END4X,
ENW4X or coil casing model number NAEA when
installed on combustible materials or wood flooring.
(Refer to SAFETY CONSIDERATIONS).
be located as close to the chimney or vent and at-
tached to an air distribution system. Refer to Air
Ducts section.

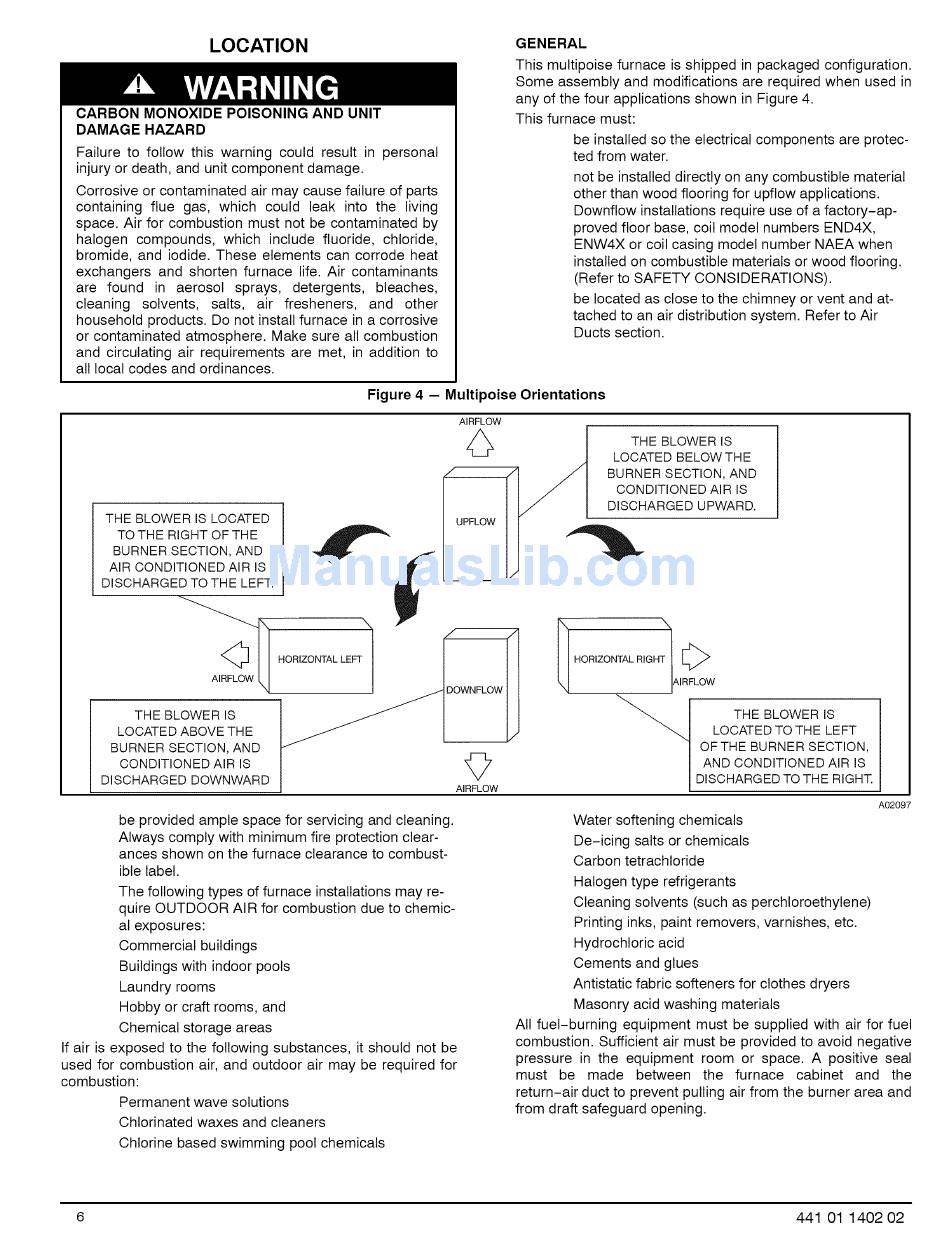

Figure 4 - Multipoise Orientations
AIRFLOW
THE BLOWER IS LOCATED
TOTHE RIGHT OFTHE
BURNER SECTION, AND
AiR CONDITIONED AIR IS
DISCHARGEDTO THE LEFT.
THE BLOWER IS
'_7
LOCATED ABOVE THE
BURNER SECTION, AND
CONDITIONED AIR IS
DISCHARGED DOWNWARD
AIRFLOW
THE BLOWER IS
LOCATED BELOWTHE
BURNER SECTION, AND
CONDITIONED AIR IS
DISCHARGED UPWARD.
_
HORIZONTAL
RIGH_AIRF L_C
w
THE BLOWER IS
LOCATED TO THE LEFT
OF THE BURNER SECTION,
AND CONDiTiONED
AIR IS
DISCHARGED TO THE RIGHT.
be provided ample space for servicing and cleaning.
Always comply with minimum fire protection clear-
ances shown on the furnace clearance to combust-
ible label.
The following types of furnace installations may re-
quire OUTDOOR AIR for combustion due to chemic-
al exposures:
Commercial buildings
Buildings with indoor pools
Laundry rooms
Hobby or craft rooms, and
Chemical storage areas
If air is exposed to the following substances,
it should not be
used for combustion air, and outdoor air may be required for
combustion:
Permanent wave solutions
Chlorinated waxes and cleaners
A02097
Water softening chemicals
De-icing salts or chemicals
Carbon tetrachloride
Halogen type refrigerants
Cleaning solvents (such as perchloroethylene)
Printing inks, paint removers, varnishes, etc.
Hydrochloric acid
Cements and glues
Antistatic fabric softeners for clothes dryers
Masonry acid washing materials
All fuel-burning
equipment
must be supplied with air for fuel
combustion.
Sufficient air must be provided to avoid negative
pressure
in the equipment
room or space. A positive seal
must
be
made
between
the
furnace
cabinet
and
the
return-air
duct to prevent pulling air from the burner area and
from draft safeguard opening.
Chlorine based swimming pool chemicals
6
441 01 1402 02
