Smeg SA550-1X60 User Manual

SA550-1X60
finish all satin stainless steel fascia rail and under-
carriage
installation built into overhead cabinetry
motor 250 watt centrifugal, twin impellors, double
air uptake
air capacity 800m³/hr net
air extraction exhaust direct to atmosphere or recirculate
to kitchen, 150mm diameter (6") ducting
required
NB: ducting is not supplied
speed four separate illuminated buttons —
automatic presetting
noise rating 41–58 dBA
illumination two 20 watt halogen, rear mounted
filtration two 4-ply stainless steel/aluminium —
removable and washable
delay stop selectable 5-minute delay stop for fan and
lights
cleaning prompts automatic, LED, visual
• 30 hours for grease filters — wash
• 120 hours for charcoal filters — change
charcoal filters optional, purchasable accessory when
recirculating, code for pair 08999801
warranty two years parts and labour

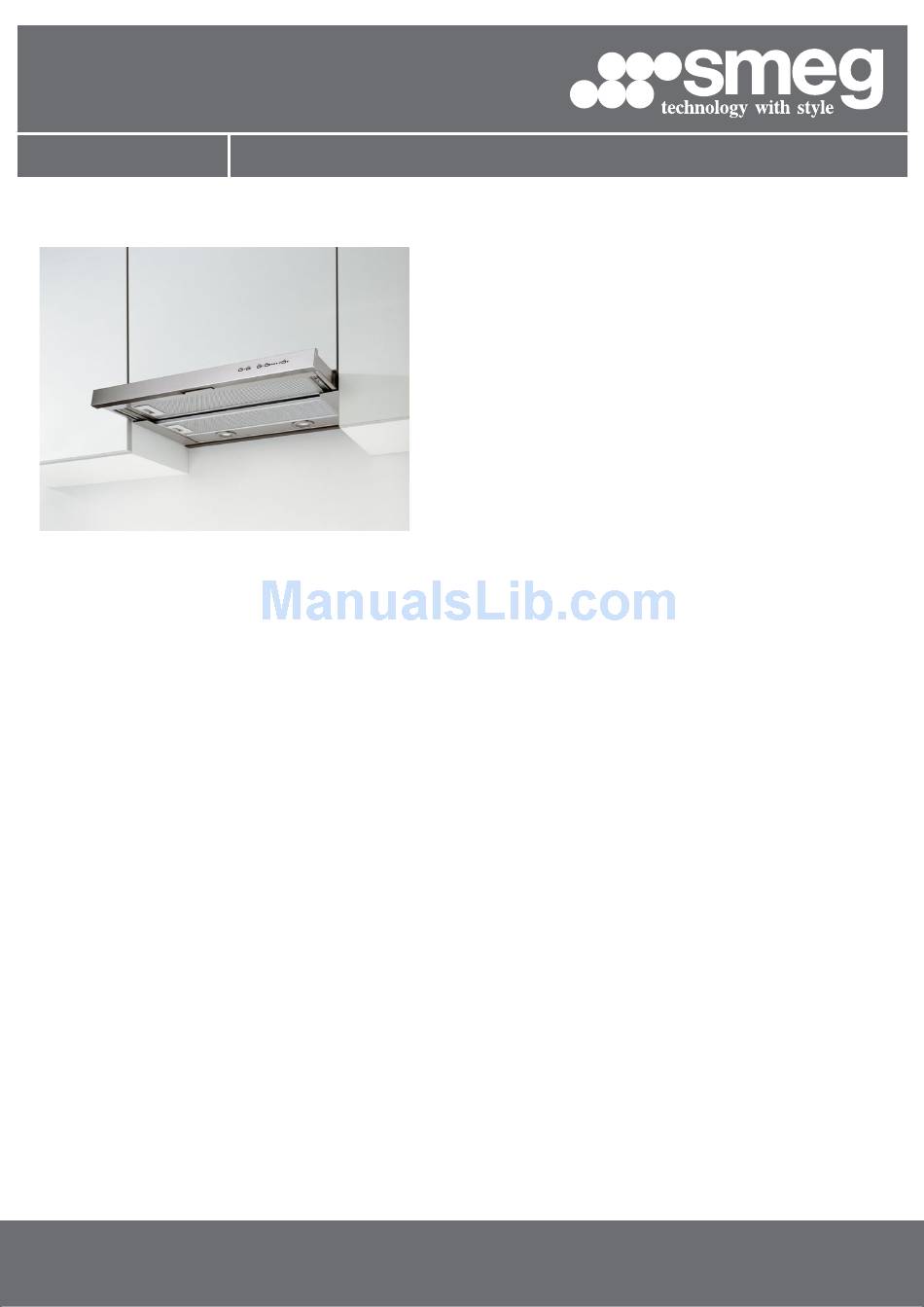

smeg 60cm deluxe slim jim telescopic rangehood
APPLICATION
Built into overhead cabinetry and concealed behind a cupboard fascia
(except the distinctive stainless steel fascia rail), the SA550 deluxe slim
jim is uncompromising in power, performance and quietness. It requires
a minimum 330mm installation height (concealed behind cabinet fascia)
to do its job properly; that is, a massive 800 cubic metres of net air
movement an hour for direct ducting or recirculation.
DUCTING
Direct ducting to atmosphere ensures the maximum removal of grease/oil/
particle-laden vapour plus the odours and, very importantly, the heat —
resulting in a cleaner, cooler and more comfortable work area.
RECIRCULATION
When the cooking vapours cannot be ducted, simply redirect the extracted
and filtered air into the kitchen via a duct pipe through the overhead
cabinetry. A more frequent inspection and cleaning of the grease filter is
recommended.
CHARCOAL FILTERS
These are purchasable accessories. They are replaceable. One each is
clipped to either side of the centrifugal motor and are designed to absorb
and diminish cooking odours. Periodic inspection is recommended before
replacement. They are optionally used for recirculation only. The activated
charcoal filters are not be to washed.
DUCTING MATERIAL
Smooth internal walled duct pipe lengths ensure the most efficient air
movement and quieter operation. Consider either high temperature rated
PVC or galvanised sheet metal piping. The flexible ducting can be ideal
for a very short, tight run. The rangehood's air exit aperture is designed for
150mm diameter (6") ducting; however, a 125mm diameter (5") adaptor
is supplied for optional use.
DELAY STOP
Ideally, a rangehood should run for several minutes after all cooking is
ceased in order to drag through residual vapours and odours. By selecting
the delay stop button at the end of the cooking, the rangehood will turn the
motor off in five minutes as well as the lights if they were left on.
CLEANING PROMPTS
After 30 hours' use, the LED window will prompt visually to inspect the
grease filters for possible cleaning. Simply use the reset button to clear the
LED window.
If the rangehood has been installed for recirculation and charcoal filters
have been clipped to either side of the motor, accumulative use of 120
hours will prompt a different LED warning for inspection and possible
replacement of these charcoal filters.
ID220311
Code SA550-1X60
