Hilti TE2-M Operating Instructions Manual
Hide thumbs
Also See for TE2-M:
- User manual ,
- Operating instructions manual (16 pages) ,
- Manual (172 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hilti TE2-M
Summary of Contents for Hilti TE2-M
- Page 1 TE 2/TE 2-S/TE 2-M Operating instructions 1– 8 Mode d’emploi 9–16 Manual de instrucciones 17–24 Manual de instruções 25–32...
- Page 2 TE2-S TE2-M This Product is Certified Ce produit est homologué Producto homologado por Este produto está registrado Always wear Always wear Always wear ear Wear respiratory protection safety glasses protective gloves protectors when the work causes dust Porter des lunet-...
- Page 3 TE2-M TE2-M...
- Page 5 TE2-S TE2-M...
-
Page 6: Table Of Contents

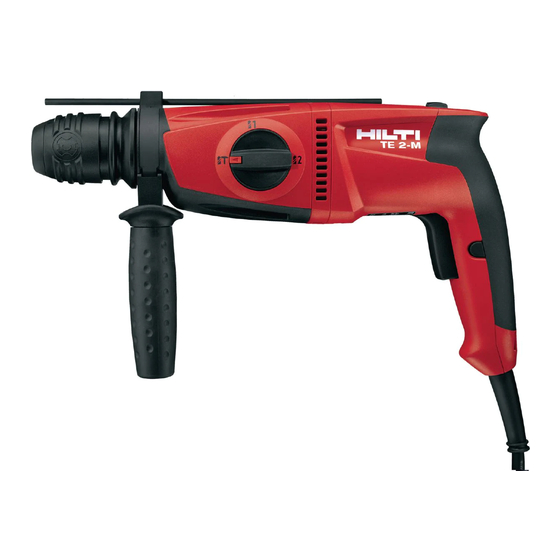

In these operating instructions, the power tool to which these operating instructions apply is referred to as “the tool”. Operating controls Chuck release ring (TE2-M) Function selector switch Control switch Forwards / reverse switch Component parts Dust shield... -
Page 7: Technical Data
2.6 kg / 5.7 lbs (TE2-M) Dimensions (l h w) 344 200 79 mm / 13.5 7.9 3.1 in (TE2 / TE2-S) 359 200 79 mm / 14.1 7.9 3.1 in (TE2-M) Minimum distance between wall and hole drilled 30 mm (1.2 in) No load speed 0–... -
Page 8: General Safety Rules
General safety rules Avoid accidental starting. Be sure the switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites acci- Warning! Read and understand all instructions. Failure dents. -
Page 9: Specific Safety Rules And Symbols
Ensure that the side handle is fit- ted correctly and tightened securely . Hold the side The TE2 / TE2-S / TE2-M is an electrically powered rotary handle at its outer end when drilling and pay atten- hammer with pneumatic hammering mechanism designed tion at all times. -
Page 10: Assembly
The tool is designed for the following uses: Required insert tools Diameter range TE 2 / TE 2-S / TE 2-M: Hammer drilling in concrete, Drill bits with TE-C connection end Drilling in concrete: masonry and natural stone – Short hammer drillbits Anchor holes of 4–20 mm ( –... -
Page 11: Care And Maintenance
Release the side handle (turn counter-clockwise), set the depth gauge to the desired Hammer drilling / drilling depth and tighten the side handle (turn clock- precision hammering action (TE2-S / TE2-M) wise) a) Insert the drill bit into the chuck. Forwards / reverse rotation... -
Page 12: Accessories
Warranty using a clean, dry cloth. Carefully wipe the sealing lip and grease it with a little Hilti grease. It is essential that Hilti warrants that the tool supplied is free of defects in the dust shield is replaced when the sealing lip is dam- material and workmanship. -
Page 13: Disposal
Disposal Most of the materials from which Hilti power tools are manufactured can be recycled. The materials must be cor- rectly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old electric tools for recycling. Please ask your Hilti customer service department or Hilti sales repre- sentative for further information. - Page 14 Tel.: +423 / 234 2111 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 2740 0803 10-Pos. 3 1 Printed in Liechtenstein © 2002 Right of technical and programme changes reserved S. E. & O.
