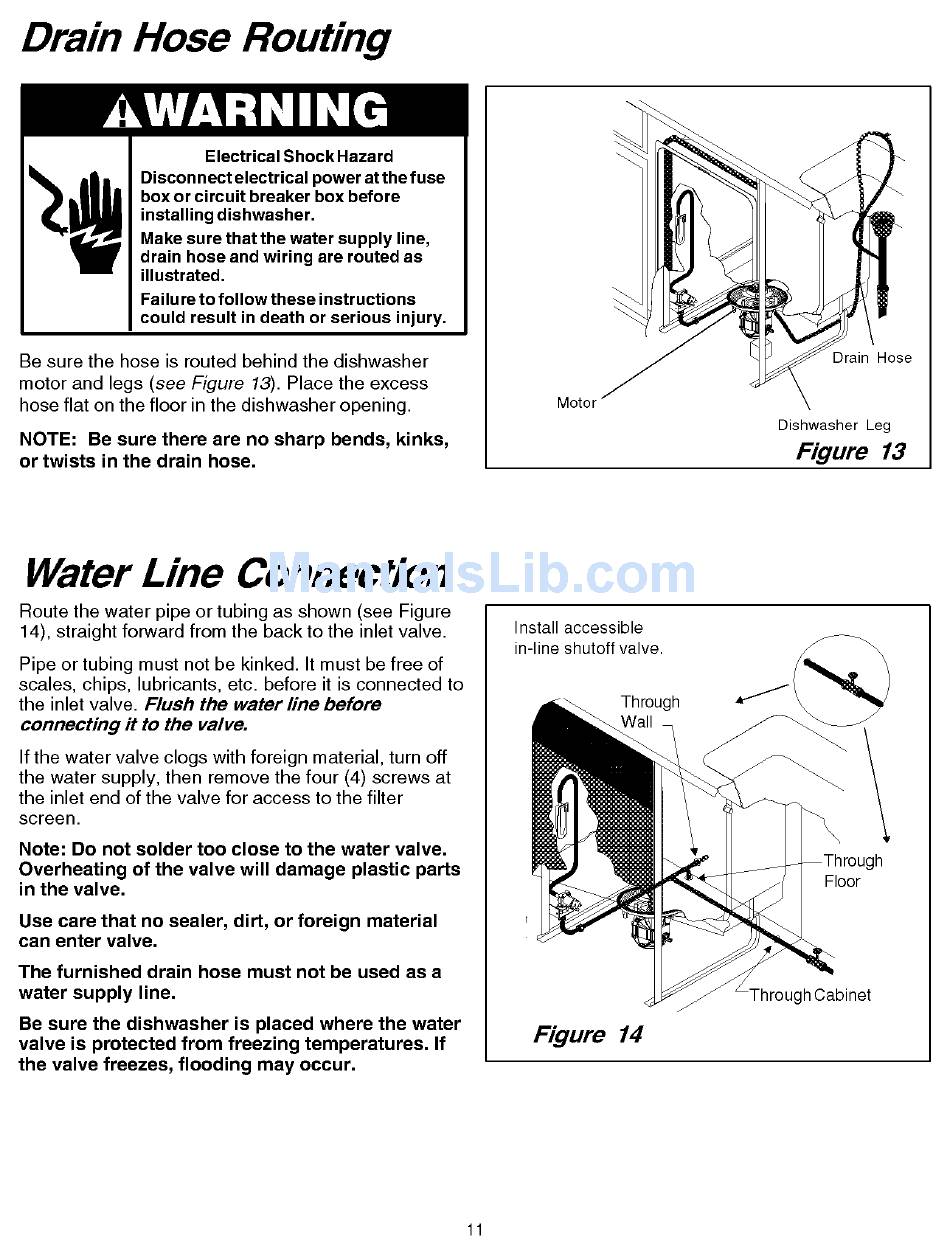

Drain Hose Routing
Electrical Shock Hazard
Discon n ect electrical power at the fuse
box or circuit breaker box before
installing dishwasher,
Make sure that the water supply line,
drain hose and wiring are routed as
illustrated,
Failu re to follow these instructions
could result in death or serious injury,
Be sure the hose is routed behind the dishwasher
motor and legs (see Figure 13). Place the excess
hose flat on the floor in the dishwasher opening.
NOTE: Be sure there are no sharp bends, kinks,
or twists in the drain hose.
e
Motor \
Dishwasher Leg
Figure 13
Water Line Connection
Route the water pipe or tubing as shown (see Figure
14), straight forward from the back to the inlet valve.
Pipe or tubing must not be kinked. It must be free of
scales, chips, lubricants, etc. before it is connected to
the inlet valve. Flush the water line before
connecting it to the valve.
If the water valve clogs with foreign material, turn off
the water supply, then remove the four (4) screws at
the inlet end of the valve for access to the filter
screen.
Note: Do not solder too close to the water valve.
Overheating of the valve will damage plastic parts
in the valve.
Use care that no sealer, dirt, or foreign material
can enter valve.
The furnished drain hose must not be used as a
water supply line.
Be sure the dishwasher is placed where the water
valve is protected from freezing temperatures. If
the valve freezes, flooding may occur.
Install accessible
in-line shutoff valve.
Through
Floor
Figure 14
Through Cabinet
11
