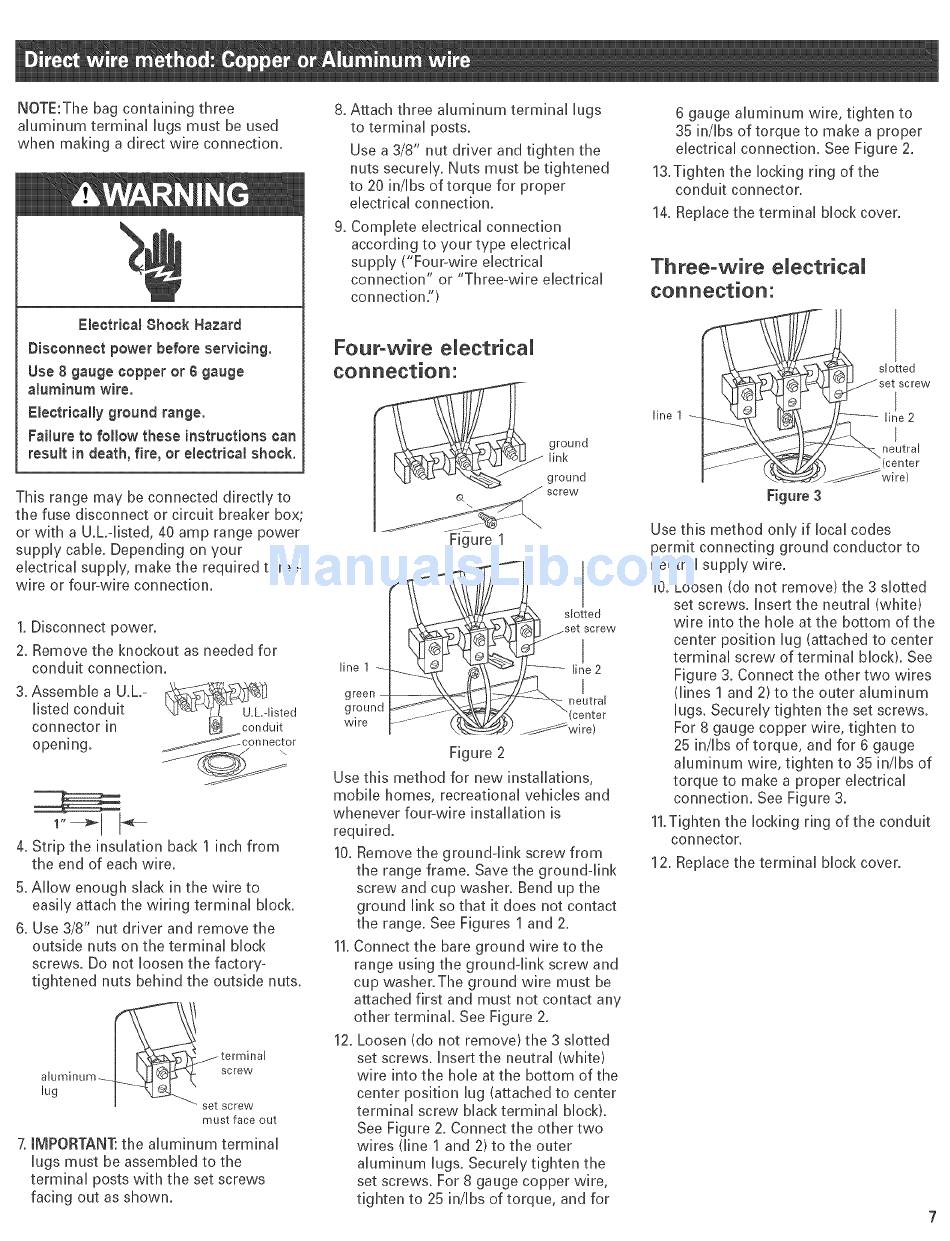

NOTE:The bag containing three
aluminum terminal lugs must be used
when making a direct wire connection.
E[ectrba[ 8hock Hazard
Disconnect power before servicing.
Use 8 gauge copper or $ gauge
aluminum wire.
Electrically ground range.
Failure to follow these instructions can
result in death, fire, or electrical shock.
This range may be connected directly to
the fuse disconnect or circuit breaker box;
or with a U.L.qisted, 40 amp range power
supply came. Depending on your
electrical supply, make the required three-
wire or four-wire connection.
1. Disconnect power.
2. Remove the knockout as needed for
conduit connecqon.
3. Assemble a U.L.- '__1
listed conduit .-listed
connector in _ _conduit
opening.
_connector
4. Strip the insulation back 1 inch from
the end of each wire.
5. Allow enough slack in the wire to
easily attach the wiring terminal block.
6. Use 3/8" nut driver and remove the
outside nuts on the terminal block
screws. Do not loosen the factory°
tightened nuts behind the outside nuts.
aluminum_
lug
set screw
must face out
Z IMPORTANT the aluminum terminal
lugs must be assembled to the
terminal posts with the set screws
facing out as shown.
8. Attach three aluminum terminal lugs
to terminal posts.
Use a 3/8" nut driver and tighten the
nuts securely. Nuts must be tightened
to 20 in/ibs of torque for proper
electrical connection.
9. Complete electrical connection
according to your type electrical
supply ("Four-wire electrical
connection" or "Three-wire electrical
connection:')
Four-wire electrical
_ ground
link
ground
screw
Figure 1
line I
ground
wire
slotted
screw
I
line 2
I
neutral
(cerUer
._"wi re)
Figure 2
Use this method for new installations,
mobile homes, recreational vehicles and
whenever four-wire installation is
required.
10. Remove the ground-link screw from
the range frame. Save the ground-link
screw and cup washer. Bend up the
ground link so that it does not contact
the range. See Figures 1 and 2.
11.Connect the bare ground wire to the
range using the ground-link screw and
cup washer.The ground wire must be
attached first and must not contact any
other terminal. See Figure 2.
12. Loosen (do not remove} the 3 slotted
set screws, insert the neutral (whitet
wire into the hob at the bottom of the
center position lug (attached to center
terminal screw black terminal block).
See Figure 2. Connect the other two
wires (line 1 and 2) to the outer
aluminum lugs. Securely tighten the
set screws. For 8 gauge copper wire,
tighten to 25 in/Ibs of torque, and for
6 gauge aluminum wire, tighten to
35 in/Ibs of torque to make a proper
electrical connection. See Figure 2.
13.Tighten the locking ring of the
conduit connector.
14. Replace the terminal block cover.
Three-wire electrical
slotted
line I
Figure 3
r
line 2
neutral
)center
)
Use this method only if local codes
permit connecting ground conductor to
neutral supply wire.
10. Loosen (do not remove} the 3 slotted
set screws, insert the neutral (white}
wire into the hob at the bottom of the
center position lug (attached to center
terminal screw of terminal block). See
Figure 3. Connect the other two wires
(lines 1 and 2)to the outer aluminum
lugs. Securely tighten the set screws.
For 8 gauge copper wire, tighten to
25 in/Ibs of torque, and for 6 gauge
aluminum wire, tighten to 35 in/Ibs of
torque to make a proper electrical
connection. See Figure 3.
11.Tighten the locking ring of the conduit
connector.
12. Replace the terminal block cover.
