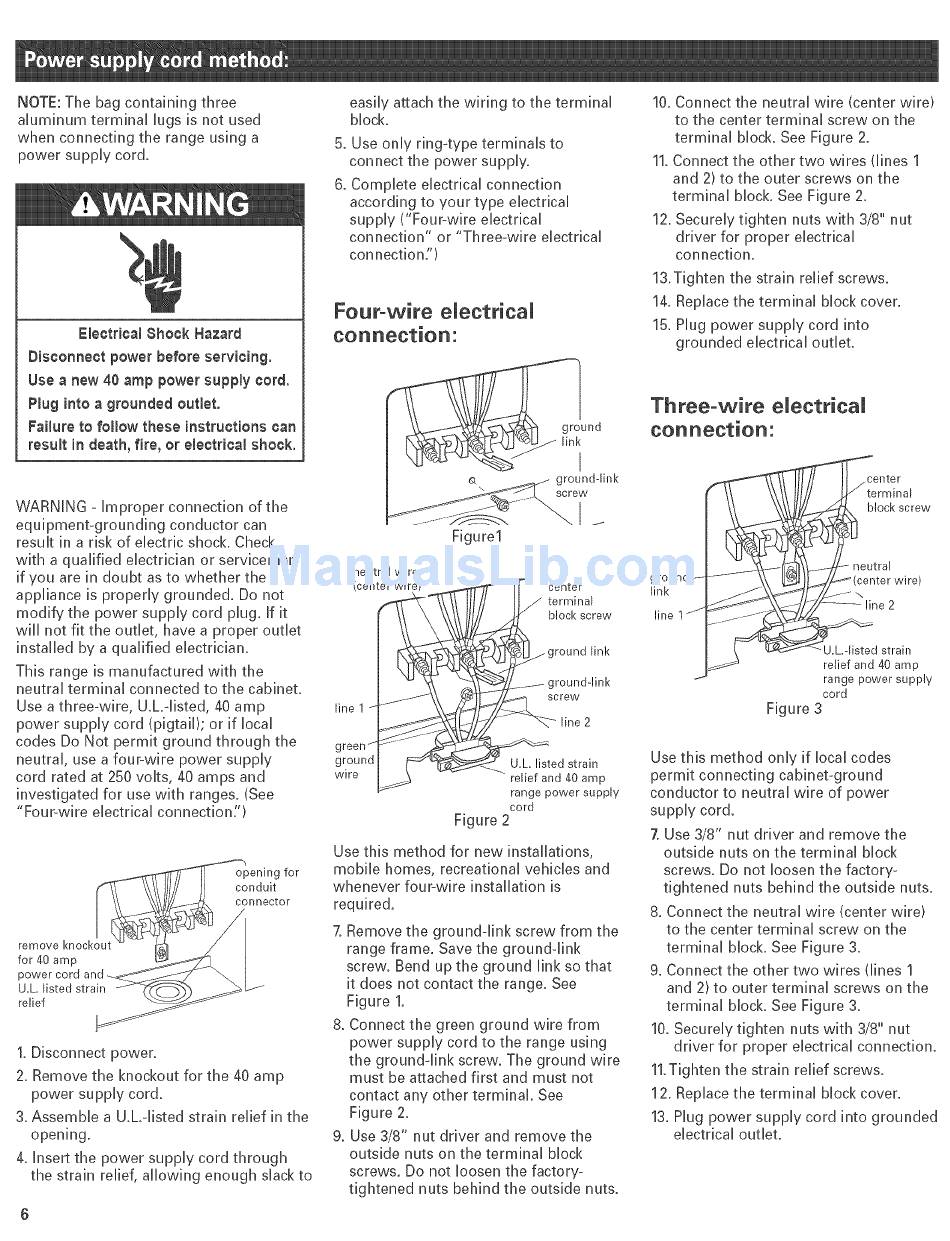

NOTE: Thebagcontaining t hree
aluminum terminaU U ugs is notused
when connecting therange using a
power suppUy cord.
Electrical 8hook Hazard
Disconnect power b efore servicing.
Useanew40amp
power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can
result in death, fire, or ebctrical shook.
WARNING -Improper connection of the
equipment-grounding
conductor can
result in a risk of electrb shock. Check
with a qualified electrbian or serviceman
if you are in doubt as to whether the
appliance is properly grounded. Do not
modFy the power supply cord plug. If it
wiil not fit the outlet, have a proper outlet
installed by a qualified electrician.
This range is manufactured with the
neutral terminal connected to the cabinet.
Use a three-wke, U.h-listed, 40 amp
power supply cord (pigtail), or if local
codes Do Not permit ground through the
neutral, use a four-wire power supply
cord rated at 250 volts, 40 amps and
investigated for use with ranges. (See
"Four-wire electrmal connection:')
remove knockout
for 40 amp
U.L listed strain
relief
opening for
conduit
cormector
/
1. Disconnect power.
2. Remove the knockout for the 40 amp
power supply cord.
3. Assemble a U.L.-listed strain relief in the
opening.
4. Insert the power supply cord through
the strain relief, allowing enough slack to
easily attach the wiring to the terminal
block.
5. Use only ring-type
terminals
to
connect the power supply,
6. Complete
electrical
connection
according
to your type electrical
supply
("Four-wire
electrical
connection"
or "Three-wire
electrical
connection:')
Four-wire
electrical
_!u_d
m
grounddink
screw
Figure1
neutral wire
(center wire
center
_
terminal
block screw
round link
line 1
ground-link
screw
line 2
ground
U.L. listed strain
wire
relief and 40 amp
range power
supply
cord
Figure 2
Use this method for new installations,
mobile homes, recreational vehicles and
whenever four-wire installation is
required.
7. Remove the ground-link screw from the
range frame. Save the ground-link
screw. Bend up the ground link so that
it does not contact the range. See
Figure 1.
8. Connect the green ground wire from
power supply cord to the range using
the ground-link screw. The ground wire
must be attached first and must not
contact any other terminal. See
Figure 2.
9. Use 3/8" nut driver and remove the
outside nuts on the terminal block
screws. Do not loosen the factory-
tightened nuts behind the outside nuts.
10. Connect the neutral wire (center wire)
to the center terminal screw on the
terminal blocL See Figure 2.
11.Connect the other two wires (lines 1
and 2t to the outer screws on the
terminal block. See Figure 2.
12. Securely tighten nuts with 3/8" nut
driver for proper electrical
connection.
1&Tighten the strain relief screws.
14. Replace the terminal block cover.
15. Plug power supply cord into
grounded electrical outlet.
Three-wire
electrical
link
line
block screw
neutral
wire)
line 2
U.L.disted
strain
relief and 40 amp
range
power
supply
cord
Figure 3
Use this method only if local codes
permit connecting
cabinet-ground
conductor
to neutral wire of power
supply cord.
7. Use 3/8" nut driver and remove the
outside nuts on the terminal
block
screws. Do not loosen the factory-
tightened
nuts behind the outside
nuts,
8. Connect the neutral
wire (center wire)
to the center terminal
screw on the
terminal
blocL See Figure 3.
9. Connect the other two wires (lines 1
and 2}to outer terminal
screws on the
terminal
blocL See Figure 3.
10. Securely tighten
nuts with 3/8" nut
driver for proper electrical
connection.
11.Tighten the strain relief screws,
12, Replace the terminal
block cover.
13. Plug power supply cord into grounded
electrical
outlet.
