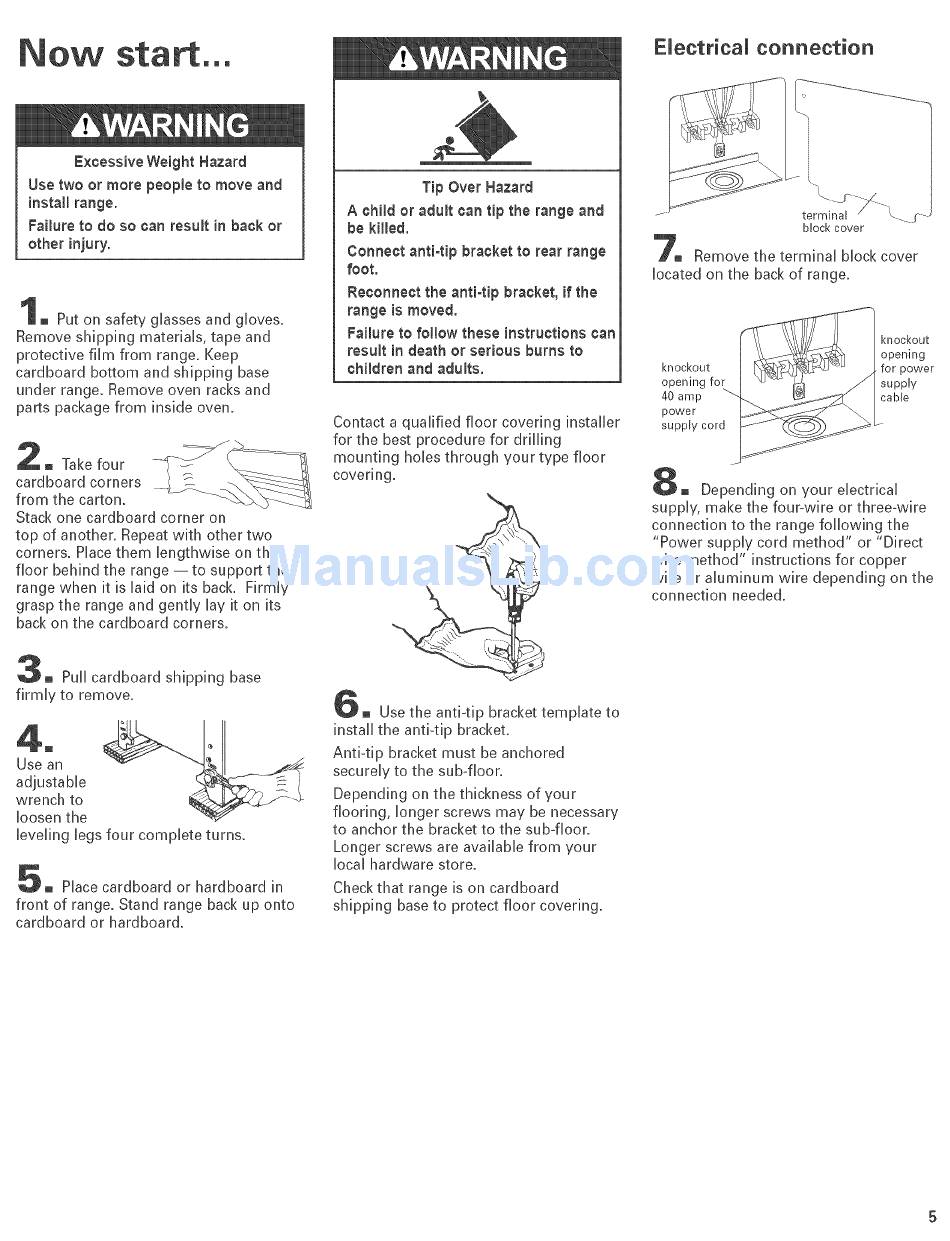

ow start...
Excessive Weight Hazard
Use two or more people to move and
install range.
Failure to do so can result in back or
other injury.
I
M Put on safety ghsses and gUoves.
Remove shipping materials, tape and
protective fiUmfrom range. Keep
cardboard bottom and shipping base
under range. Remove oven racks and
parts package from inside oven.
m Take four
cardboard corners
from the carton.
Stack one cardboard corner on
top of another. Repeat with other two
corners. PUace them Uengthwise on the
floor behind the range -- to support the
range when it is Uaidon its back. FirmUy
grasp the range and gently Uayit on its
back on the cardboard corners.
R Pull cardboard shipping base
firmUy to remove.
m
Use an
adjustaMe
wrench to
Uoosenthe
UeveUing Uegsfour complete turns.
5R
Place cardboard or hardboard in
front of range. Stand range back up onto
cardboard or hardboard.
Tip Over Hazard
A child or adult ¢an tip the range and
be killed.
Connect anti-tip bracket to rear range
foot.
Reconnect the anti-tip bracket, if the
range is moved.
Failure to follow these instruotions can
result in death or serious burns to
children and adults.
Contact a qualified floor covering installer
for the best procedure for drilling
mounting holes through your type floor
covering.
Use the anti-tip bracket template to
install the anti-tip bracket.
Anti-tip bracket must be anchored
securely to the sub-floor.
Depending on the thickness of your
flooring, longer screws may be necessary
to anchor the bracket to the sub-floor.
Longer screws are available from your
local hardware store.
Check that range is on cardboard
shipping base to protect floor covering.
EJectdcaJ
connection
,'olm//\ ,/
block cover
7m
Remove the terminal block cover
located on the back of range.
knockout
opening fo!_
40 amp
power
supply cord
knockout
opening
for power
supply
cable
Depending on your electrical
supply, make the four-wire or threeow[re
connection to the range following the
"Power supply cord method" or "Direct
wire method" instructions for copper
wire or aluminum wire depending on the
connection needed.
