HP RP36000/3 Overview

HP RP36000/3 Overview

Parallel 3 phase uninterruptible power systems
Hide thumbs Also See for RP36000/3:

Advertisement

Quick Links

Download this manual
QuickSpecs
Overview
Power protection in the data center is critical to maintain up time, and the increased densities in data centers is driving the need for
uninterruptible power with increased power density, power efficiency, and flexibility. The HP RP36000/3 does just that. This pre-racked
uninterruptible power systems provides 36 kilowatts (KW) of power or 24KW with N+1 redundancy. Housed in a single rack cabinet, (HP
Rack 10000 Series G2 42U) it can be expanded to 60KW with N+1 simply by installing up to 3 additional RP12000/3 UPS Modules.
Digital signal processing, UPS paralleling, and a new On-line On Demand hybrid technology answer the demands for density,
redundancy, efficiency and flexibility.
On-line On Demand combines the high efficiency of a line interactive UPS, up to 97%, with the stability of a double conversion on-line
UPS when power fluctuates beyond acceptable limits. Hot swappable batteries and electronics modules and an automatic bypass
reduce MTTER (mean time to repair) - down time in the event service is needed.

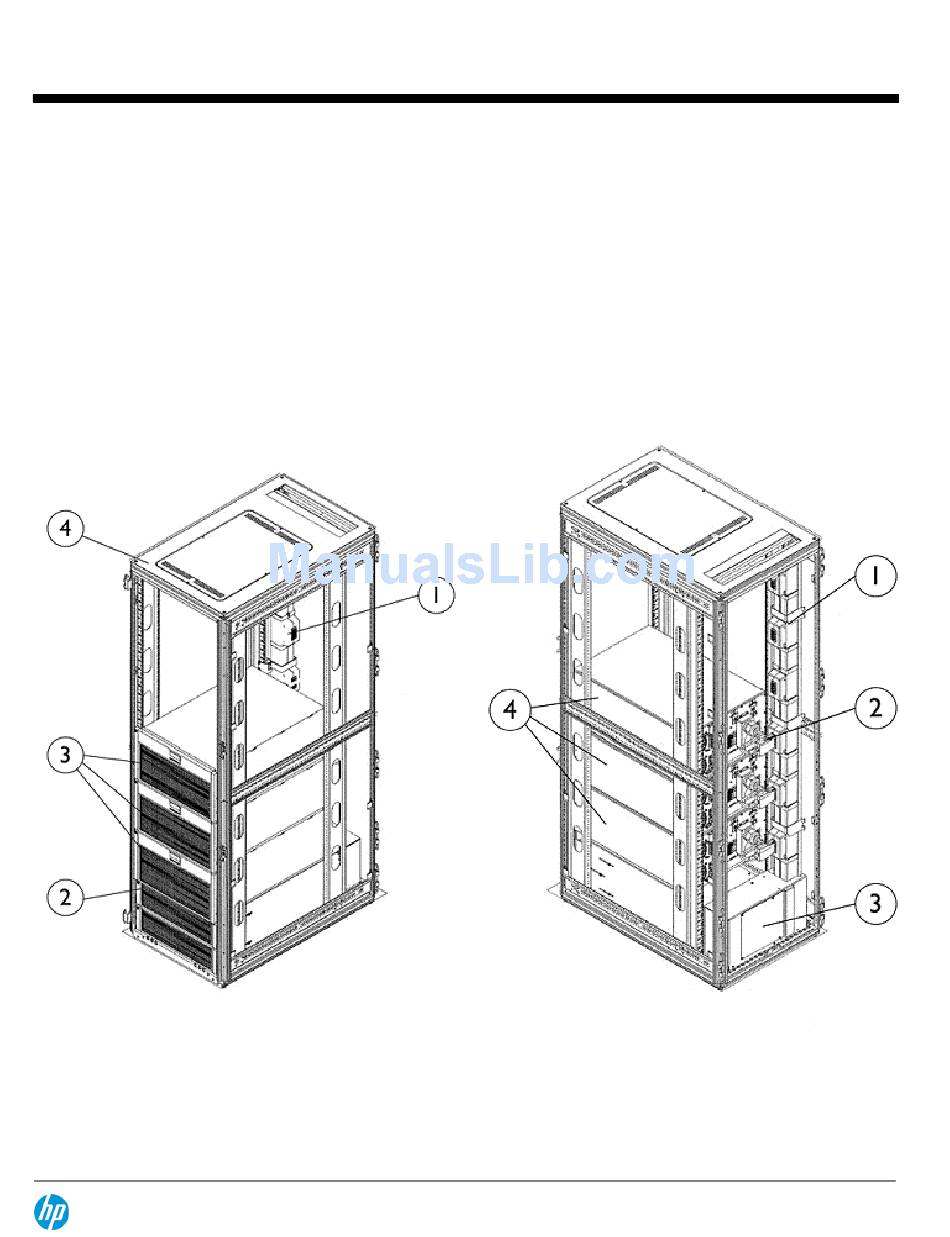

RP36000/3 Front
HP Parallel 3 Phase Uninterruptible Power Systems
DA - 12856 Worldwide — Version 9 — June 25, 2012
RP36000/3 Rear
Page 1

Advertisement

loading

Related Manuals for HP RP36000/3

Summary of Contents for HP RP36000/3

  • Page 1 The HP RP36000/3 does just that. This pre-racked uninterruptible power systems provides 36 kilowatts (KW) of power or 24KW with N+1 redundancy. Housed in a single rack cabinet, (HP Rack 10000 Series G2 42U) it can be expanded to 60KW with N+1 simply by installing up to 3 additional RP12000/3 UPS Modules.
  • Page 2 2. Input and output connections for RP12000/3 UPS Modules 3. RP12000/3 UPS Modules (qty3) 3. Cabling wire tray (6U) 4. HP 10000 Series G2 42U rack with front and rear doors 4. RP12000/3 UPS Expansion Modules (qty3) Models HP RP36000/3...

  • Page 3: Standard Features

    State-of-the-art UPS Configured to order, the HP RP36000/3 UPS ships with three HP RP12000/3 UPS Modules, the power bus bar, and the wiring cabinet installed in an HP Rack 10000 G2 Series 42U rack cabinet. Each module houses Paralleling Technology its own electronics, batteries, and intelligent automatic bypass module for maximum redundancy.
  • Page 4 Housed in a single HP Rack 10000 G2 42U rack cabinet, the HP PDR also save floor space and allows you to move heat robbing transformers off of the data center floor improving cooling.
  • Page 5 HP 3 Phase Modular or Monitored PDUs in several individual racks. Because of the UPS Parallel design even a loss of a HP RP12000/3 UPS Expansion Module would not interrupt the load on the output module attached to it. Up to 6 Output Modules can be configured in a fully loaded HP Parallel UPS.
  • Page 6 Specifically, the Pre-Failure Battery Warning ensures that when customers receive the notification from their HP UPS that the battery may fail, the battery is replaced free of charge under the warranty. HP maintains the highest standards in the industry, as evidenced by the HP Pre-Failure Battery Warranty.

  • Page 7: Service And Support

    13x5 basis. Coverage of UPS batteries is not included with Care Pack Services. NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack...

  • Page 8: Related Options

    NOTE: Each extension bar has a C-20 input cord and 7 attached 13 inch C-13 power cords for use with 1U servers. NOTE: Extension bars may be used with any HP PDU that has C-19 outlets HP PDU Management HP PDU Management Module...
  • Page 9 600 mm floor tile spacing. The kit is used to join two or more 10000 series racks of the same height together in minutes to create a multi-bay configuration. NOTE: for a complete list of all HP 10000 G2 Series rack option please go to www.hp.com/go/rackandpower...

  • Page 10: Technical Specifications

    QuickSpecs HP Parallel 3 Phase Uninterruptible Power Systems Technical Specifications RP36000/3 Base RP12000/3 UPS RP36000/3 Base RP12000/3 UPS UPS (NA) Expansion Module UPS (INTL) Expansion Module (NA) (INTL) General Characteristics Power rating (non- 36kW/36kVA 12kW/12kVA 36kW/36kVA 12kW/12kVA redundant) Power rating (N+1)
  • Page 11 QuickSpecs HP Parallel 3 Phase Uninterruptible Power Systems Technical Specifications Battery Characteristics Battery type Valve regulated lead acid, sealed, Valve regulated lead acid, sealed, maintenance free maintenance free Battery runtime (no ERM) >5 minutes at 100% load >5 minutes at 100% load...
  • Page 12 The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
