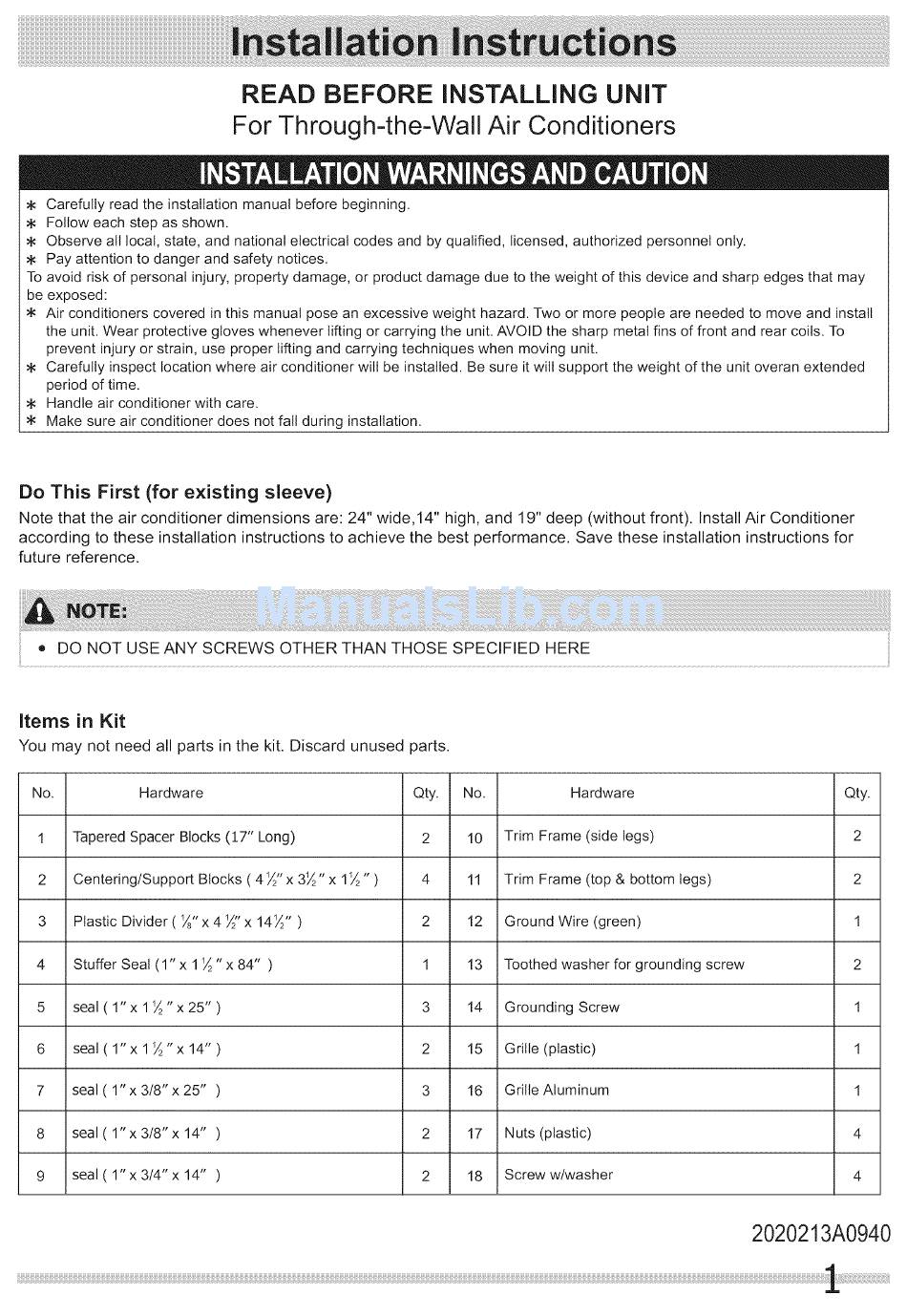

READ BEFORE INSTALLING
UNIT
For Through-the-Wall
Air Conditioners
Carefully read the installation manual before beginning.
Follow each step as shown.
Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnel only.
Pay attention to danger and safety notices.
To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may
be exposed:
Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install
the unit. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp metal fins of front and rear coils. To
prevent injury or strain, use proper lifting and carrying techniques when moving unit.
Carefully inspect location where air conditioner wilt be installed. Be sure it wilt support the weight of the unit overan extended
period of time.
Handle air conditioner with care.
Make sure air conditioner does not fall during installation.
Do This First (for existing
sleeve)
Note that the air conditioner
dimensions
are: 24" wide,14"
high, and 19" deep (without
front).
Install Air Conditioner
according
to these
installation
instructions
to achieve
the best performance.
Save these
installation
instructions
for
future
reference.
• DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED HERE
Items in Kit
You may not need all parts in the kit. Discard
unused
parts.
No.
1
2
3
4
5
6
7
8
9
Hardware
Tapered Spacer Blocks (17" Long)
Centering/Support
Blocks ( 4 _" x 3_" x 1_" )
Plastic Divider ( _" x 4 _" x 14_" )
Stuffer Seal ( 1" x 1_" x 84" )
seal(l"x
l_"x
25")
seal(l"x
l_"x
14")
seal ( 1" x 318" x 25" )
seal( l"x
3/8"x 14" )
seal ( l"x
3/4" x 14" )
Qty.
2
4
2
1
3
2
3
2
2
No.
10
11
12
13
14
15
16
17
18
Hardware
Trim Frame (side legs)
Trim Frame (top & bottom legs)
Ground Wire (green)
Toothed washer for grounding screw
Grounding Screw
Grille (plastic)
Grille Aluminum
Nuts (plastic)
Screw w/washer
Qty.
2
2
1
2
1
1
1
4
4
2020213A0940
