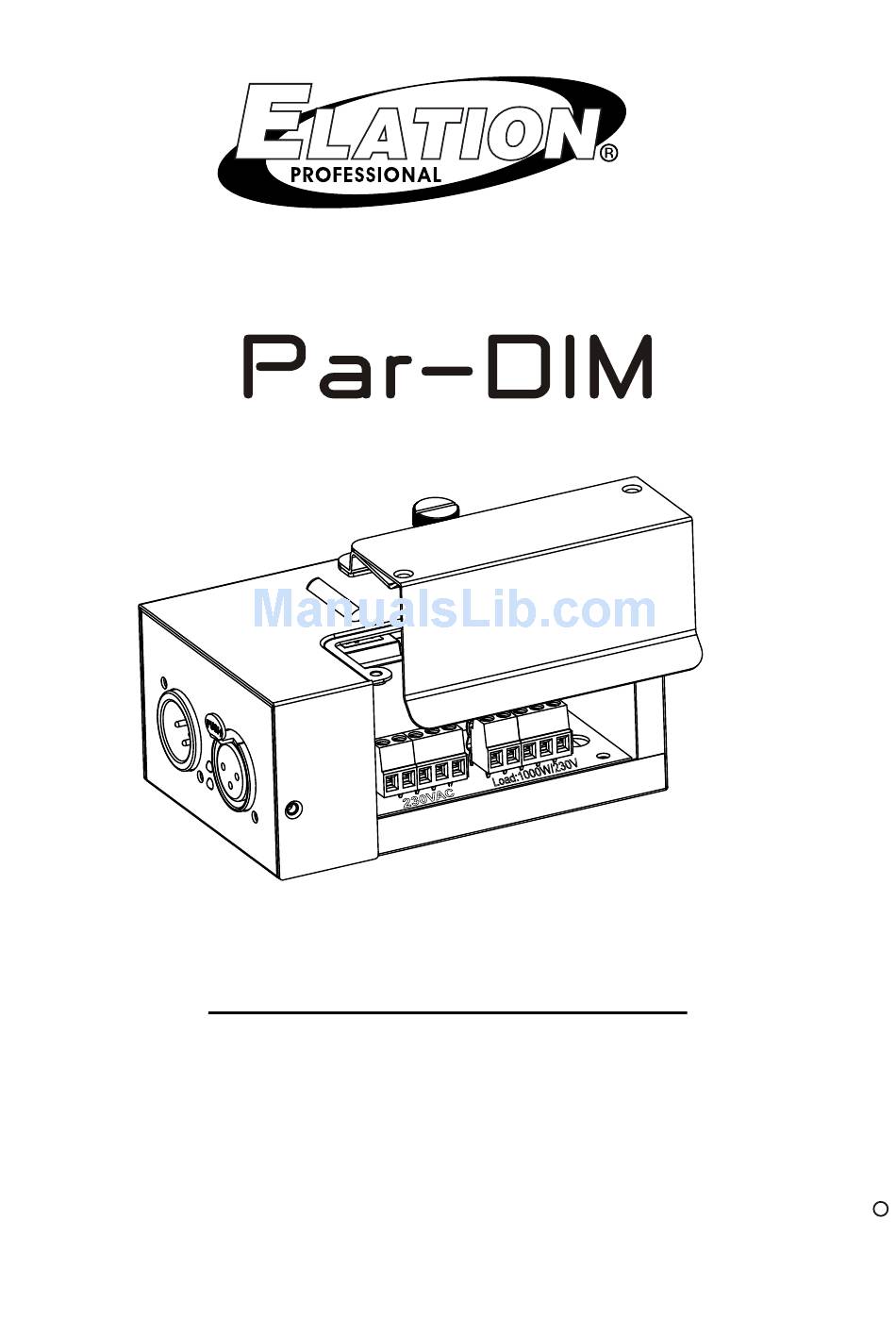

- Page 1 User Instructions Elation Professional 4295 Charter Street Los Angeles CA. 90058 24-004-2156-00 www.elationlighting.com Rev1.1 Draftcopy...
-
Page 2: Table Of Contents
Table of Contents General Information................1 Unpacking..................Safety Warnings................Main Features.................. 2 Power & DMX Setup..............2 & 3 Mounting & Installation..............4 Fuse Replacement................4 Operation Guide................5 DMX Address Setting(DMX control mode)........5 Stand Alone Mode................5 Troubleshooting................6 Troubleshooting................6 Fuse Replacement.................6 Technical Specifications..............6... -
Page 3: General Information
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so will void your manufactures warranty. In the unlikely event your unit may require service, please contact Elation Professional customer support. Do not discard the packing carton in the trash. Please recycle when ever possible. -
Page 4: Main Features
Main Features -One channel Dimmer Pack specially designed to control Par Can. -USITT DMX512(1990) multiplexed digital control, via 3 pin XLR connector. -With Terminal Strips on the top side for load. -A maximum load of 1000W/230V are allowed on a single output. -10 digit dipswitch for functional setup. -
Page 5: Special Note
COMMON DMX+ DMX 512 OUT DMX 512 IN Figure 2 3-PIN XLR 3-PIN XLR DMX- XLR Pin Configuration XLR Male Socket XLR Female Socket Pin 1 = Ground 2 Cold 1 Ground 2 Cold 1 Ground Figure 3 Pin 2 = Data Compliment (negative) 3 Hot 3 Hot Pin 3 = Data True (positive) -
Page 6: Mounting & Installation
Mounting & Installation The Par Dim may be temporarily mounted and rigged onto the hanging bracket of the Par Can. It is important never to obstruct the vent pathway. After finding the desired position and installation location, mount the unit by using the clamp, re-tighten the spring screw. -
Page 7: Operation Guide
Operation Guide DMX Address Setting(DMX Control Mode) DMX is short for Digital Multiplex. This is a universal binary language used as a form of communication between intelligent fixtures. Each dip switch represents a binary value. Dip Switch 1 address equals 1 DMX ADDRESS SETTING Dip Switch 2 address equals 2 (Dip Switch 10 = OFF) -
Page 8: Troubleshooting
If problem still persists, replace XLR cable between previous device and pack and try again. If you've tried the above and the unit continues to malfunction, please contact ELATION customer service at (323) 582-3322, your unit will require service. Once you describe your problem to the customer service representative, you will be issued a return authorization number that must accompany the package when sent in.
