CHANNEL
FUSES
1
1
2
3
4
F10A 250V
(5x20mm)
User Instructions
CHANNEL
CONSTANT
POWER
2
DMX OUT
DMX IN
MIDI IN
1 = Ground
2 = Data-
3 = Data+
MIDI THRU
REMOTE
POWER INPUT
PRO BAR 4
N
L
CAUTION !
RISK OF ELECTRIC SHOCK
E
DISCONNECT INPUT POWER
BEFORE OPENING
N'OUVREZ PAS..RISQUE DE CHOC ELECTRIQUE
WARNING: THIS APPARATUS MUST BE EARTHED
1/4"stereo jack
POWER INPUT: AC 120V~ 50-60Hz
Stand By
OUTPUT: 10A /CHANNEL, Total 20A.
Full On
GND
Elation Professional
4295 Charter Street
Los Angeles CA. 90058
www.elationlighting.com
CHANNEL
3
Master
Manual Dimmer
Hold Sound
Audio Sen.
Stand By
DMX
MIDI
Manual Program
Prog Sound
Auto Program
Auto Sound
Signal
Min
Max
Ch.1
Ch.2
Ch.3
Ch.4
D/S
Mode
Preset
Signal Select
DMX/MIDI
F
1
2
3
4
CHANNEL
4
R
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elation PRO BAR 4
Summary of Contents for Elation PRO BAR 4

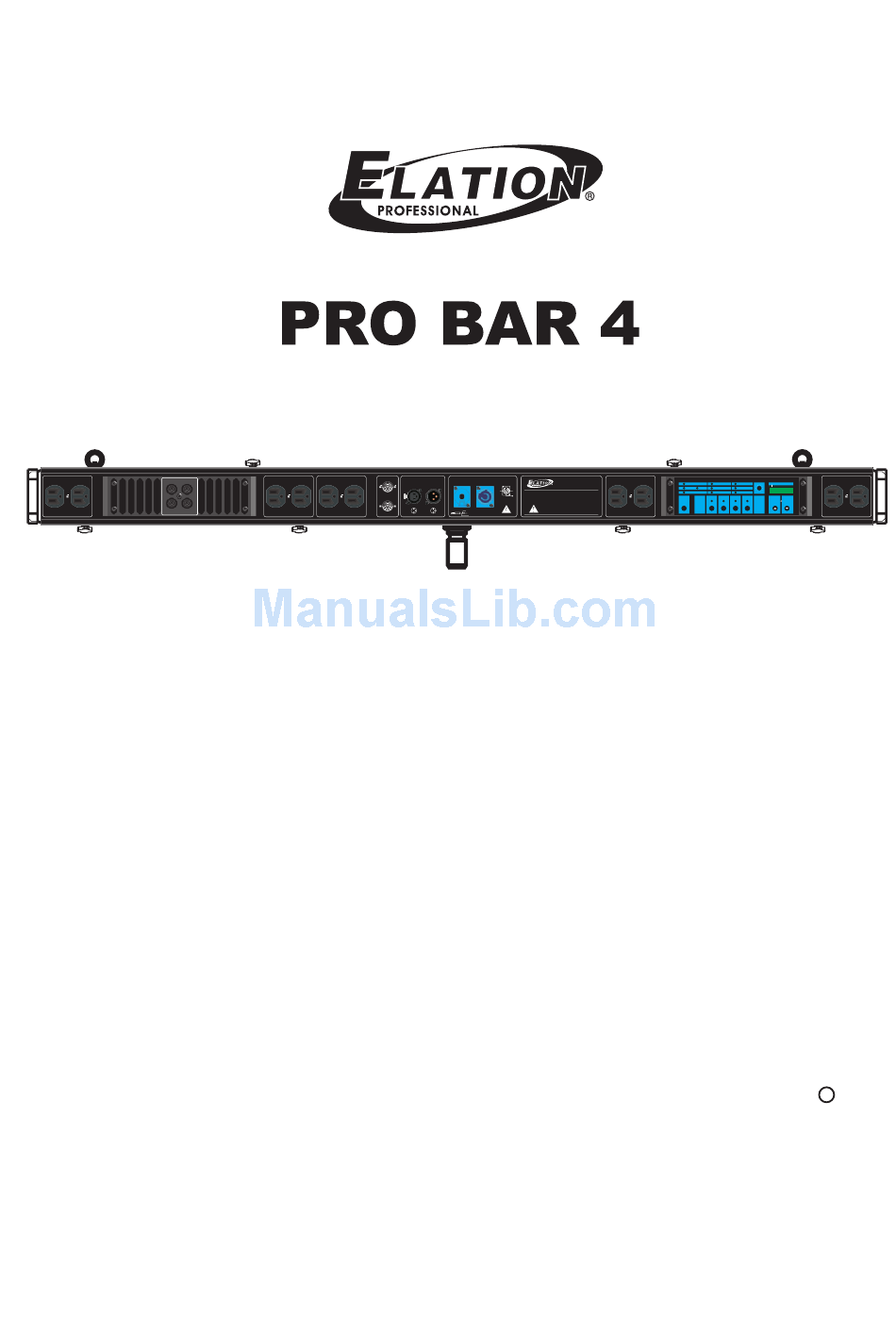

- Page 1 CHANNEL CHANNEL CONSTANT CHANNEL CHANNEL FUSES POWER DMX OUT DMX IN REMOTE POWER INPUT PRO BAR 4 Master Manual Dimmer Hold Sound Audio Sen. Stand By MIDI Manual Program Prog Sound Auto Program Auto Sound CAUTION ! RISK OF ELECTRIC SHOCK...
-
Page 3: Table Of Contents
Contents Features 1 General Instructions 2 1. Overview 3 2. Operation Guide 5 2.1 Mode Select 5 2.2 DMX Mode 5 2.3 MIDI Mode 6 2.4 Master Mode 7 2.5 Preset Functions 8 2.6 Chase Direction 10 2.7 Cross and Normal Dimmer 10 2.8 Link Up 11 2.9 Initialization 11 Technical Specifications 12... -
Page 4: Features
Features Thank you for your purchase. This product features include: 4 channel chaser with 16 built-in programs and 6 operating modes: MANUAL DIMMER/MANUAL PROGRAM/ AUTO PROGRAM/ HOLD SOUND/ PROG. SOUND/ AUTO SOUND. 4 channel MIDI pack with 4 individual Note Numbers 4 channel DMX dimmer pack with 4 individual DMX addresses Normal/Cross dimmer Forward/Reverse chasing direction... -
Page 5: General Instructions
General Instructions Read the instruction in this manual carefully and thoroughly, as they give important information regarding safety during use and maintenance. Keep this manual with the unit, in order to consult it in the future. If the unit is sold or given to another operator, make certain that it always has its manual, to enable the new owner to read about its operation and re lative instructions. -
Page 6: Overview
1. Overview... - Page 7 1. Overview Master Manual Dimmer Hold Sound Audio Sen. Stand By Manual Program Prog Sound MIDI Auto Program Auto Sound Signal Ch.1 Ch.2 Ch.3 Ch.4 Signal Select Mode Preset DMX/MIDI Control Board 1. Channel Output 10 A/CH., Total 20 A max. This control board is used to set this unit 2.
-
Page 8: Operation Guide
2. Operation Guide 2.1 Mode Select Press and hold down F button first, tap the Master Manual Dimmer Hold Sound Audio Sen. Stand By Manual Program Prog Sound MIDI Signal Select button, the Segment Display Auto Program Auto Sound Signal Ch.1 Ch.2 Ch.3... -
Page 9: Midi Mode
2. Operation Guide 2.2 DMX Mode 2. Tap the Up/Down button to select your desired Master Manual Dimmer Hold Sound Audio Sen. Stand By Manual Program Prog Sound MIDI Signal Auto Program Auto Sound DMX address from 001 to 512. Ch.1 Ch.2 Ch.3... -
Page 10: Master Mode
2. Operation Guide 2.3 MIDI Mode 2. Tap the Up/Down button to select the Note Master Manual Dimmer Hold Sound Audio Sen. Stand By MIDI Manual Program Prog Sound Auto Program Auto Sound Signal Number from 001 to 128. Ch.1 Ch.2 Ch.3 Ch.4... -
Page 11: Preset Functions
2. Operation Guide 2.4 Master Mode Manual Dimmer Manual Dimmer LED is on, you can adjust the intensity of individual of 4 channels using CH 1-4 and UP/DOWN buttons. Manual Program Manual Program LED is on, you can select any of 16 preset programs to chase. - Page 12 2. Operation Guide 2.5 Preset Functions Master The Segment Display shows "d" Master Manual Dimmer Hold Sound Audio Sen. Stand By Dimmer followed by three numbers 000- MIDI Manual Program Prog Sound Signal Auto Program Auto Sound 100. Tap Up/Down button to Ch.1 Ch.2 Ch.3...
-
Page 13: Chase Direction
2. Operation Guide 2.6 Chase Direction Keep pressing F button, tap button to select Audio Sen. Master Manual Dimmer Hold Sound Stand By MIDI Manual Program Prog Sound chase direction, the Segment Display shows Auto Program Auto Sound Signal Ch.1 Ch.2 Ch.3 Ch.4... -
Page 14: Link Up
2. Operation Guide 2.8 Link Up Several units can be linked up using DMX cables. When linking, make sure only one unit works in Master mode, and the other units will work depending on the master unit. 2.9 Initialization Press F, Signal Select and DMX/ MIDI buttons Master Manual Dimmer Hold Sound... -
Page 15: Technical Specifications
3. Technical Specifications Power Input ............AC 120V~50-60Hz Channel Output ...........10A/CH., Total 20A DMX In/Out ......3 pin female & male XLR socket x1 MIDI In/Thru ............. 5 pin multiple socket Channel Fuse ........F10A 250V 5x20mm (x4PCS) Dimensions .............. 1320x60x80mm Weight(approx) ................ - Page 16 Elation Professional A Division of the American DJ Group of Companies 4295 Charter Street Los Angeles, CA 90058 USA T el: 323-582-3322 Fax: 323-582-3311 Web: www.elationlighting.com 24-004-1529 E-mail: info@elationlighting.com Rev1.1...
