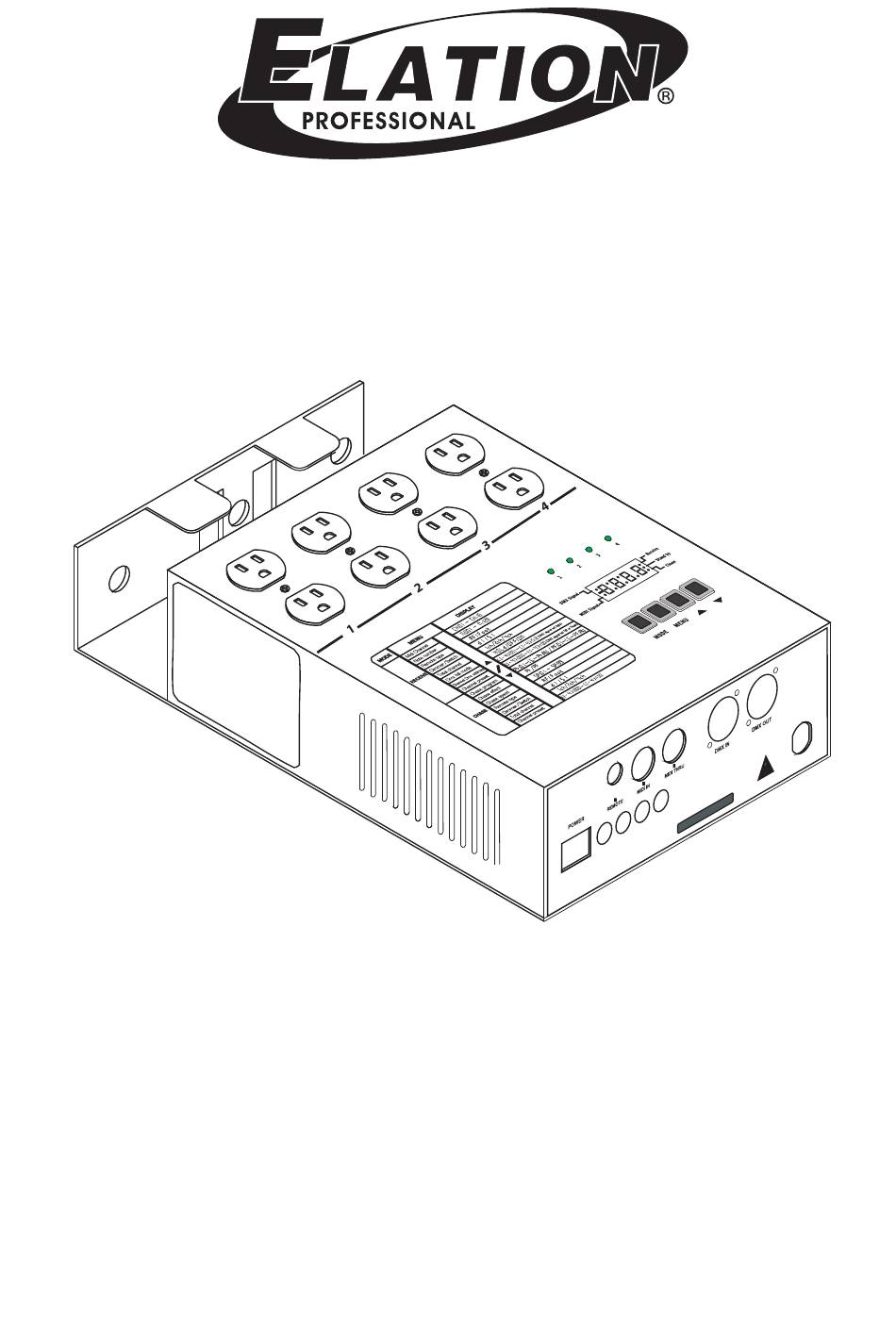

- Page 1 CYBER PAK User Manual www.elationlighting.com...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
- Page 3 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 4: Limited Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 5: Table Of Contents
Contents Features 1 General Instructions 2 1. Overview 3 1.1 Front Panel 3 1.2 Rear Panel 4 2. Operation Guide 5 2.1 Receive Mode 5 2.1.1 Receive Enable 5 2.1.2 MIDI Channel 5 2.1.3 Note Number 6 2.1.4 DMX Fail mode 7 2.1.5 Channel DMX Address 7 2.1.6 1CH./ 2CH./ 4CH. -
Page 6: Features
Features Thank you for your purchase. This product features include: 4 channel chaser with 16 built-in chase programs 4 channel dimmer pack with 4 individual DMX channel Serves as a MIDI pack to receive MIDI Note Number(001-128) Dimmer pack and Switch pack can be selectable 1,2, 4 channel dimmer pack depending on your adjustments Fade-in or Fade-out of the chase programs DMX fail allows to set HOLD/OFF/ON of output... -
Page 7: General Instructions
General Instructions Please read through this operating instructions before installing or using your new product. After you have finished reading the instructions, put them away in a safe place for future reference. Safe and Efficient Use This product must be earthed. Do not make any inflammable liquids, water or metal objects enter the unit. -
Page 8: Overview
1. Overview 1.1 Front Panel Loading: 5A/CH, Total 15A Max. MODE MENU DISPLAY Midi Channel Note number Remote type RECEIVE Dimmer/Switch DMX Signal Receive 8 8 8 8 Total channel Dmx fail mode Stand by Channel Dmx address MIDI Signal Chase Channel preset Chase program... -
Page 9: Rear Panel
1. Overview 1.2 Rear Panel 1/4"stereo jack Stand By REMOTE 1 - Ground Full on 2 - Data- MIDI IN MIDI THRU 3 - Data+ DMX IN DMX OUT AC 120V~ 50/60Hz, 15A max. CAUTION Risk of Electric Shock Disconnect Input Power Before Opening POWER N'ouvrez pas..risque de choc electrique... -
Page 10: Operation Guide
2. Operation Guide 2.1 Receive Mode This function allows you to turn on and control the intensity of the fixture with the use of a DMX controller or MIDI sequencer. On, off and dimming functions can be performed through this pack. This dimmer has 4 individual DMX address, DMX fail mode allows you to assign output when DMX signal is interrupted. -
Page 11: Note Number
2. Operation Guide 2.1.2 MIDI Channel 2. Tap the Up or Down button to select MIDI Receive channel from CH 01-16. Make sure your CH:03 Stand by MIDI Chase MIDI channel matches that on the MIDI sequencer. MODE MENU 2.1.3 Note Number 1. -
Page 12: Dmx Fail Mode
2. Operation Guide 2.1.4 DMX Fail mode 1. Enter Receive mode, tap MENU until the Segment Receive Display shows HOLD/ OFF/ ON. DMX fail mode Stand by MIDI Chase allows you to set the output when DMX signal is interrupted. MODE MENU 2. -
Page 13: 1Ch./ 2Ch./ 4Ch. Dimmer Pack
2. Operation Guide 2.1.5 Channel DMX Address 3. Tap UP/DOWN to select DMX address from Receive Stand by 001-512 for the channel. MIDI Chase MODE MENU 4. Continue steps 2-3 until each of the four channels has a DMX address. 2.1.6 1CH./ 2CH./ 4CH. -
Page 14: Chase Mode
2. Operation Guide 2.2 Chase Mode If you set 4 channel output for this dimmer, this unit can be used as a 4 channel chaser. This function allows you to select any of these 16 built-in programs or set the pack to chase as desired to get a more dramatic light show. You may control the speed at which the programs will chase. -
Page 15: Chase E Ect
2. Operation Guide 2.2.2 Chase Program 2. Tap UP/DOWN to select from 1-16 programs. Receive Stand by MIDI Chase MODE MENU 2.2.3 Chase Effect 1. In Chase Mode, tap MENU until Chase Effect Receive Stand by is activated. MIDI Chase MODE MENU 2. -
Page 16: Chase Speed
2. Operation Guide 2.2.4 Chase Speed 1. Enter Chase mode. 2. Tap the Menu button until the Segment Display Receive show "SP" followed by two numbers. s p 0 2 Stand by MIDI Chase MODE MENU 2. Tap UP/DOWN to select desired chasing speed. Receive s p 0 3 The value 01 will give the slowest speed, and the... -
Page 17: Dimmer Pack/Switch Pack
2. Operation Guide 2.2.5 4 Channel Chaser 2. Tap UP/DOWN to select 4ch mode. The Receive programs will chase only when this unit Stand by MIDI Chase serves as a 4 channel chaser. MODE MENU 2.3 Dimmer pack/Switch pack 1. In Receive or Chase mode, tap MENU until the Segment Display shows "DI"... -
Page 18: Channel Dimmer Mode
2. Operation Guide 2.4 Channel Dimmer Limit 1. In Receive or Chase mode, tap MENU until the Segment Display shows channel dimmer limit, Receive Stand by DMX LED will be off or flash. MIDI Chase MODE MENU 2. Tap UP/DOWN to adjust the value between 000- Receive Stand by 100. - Page 19 2. Operation Guide 2.5 Remote Type 2. Tap UP/DOWN to change between FOOT and Receive RF modes. Stand by MIDI Chase If FOOT is selected, a foot control(sold separately) is used to control this unit. If RF is selected, a detector and a RF control(sold MENU separately) are required to be used.
-
Page 20: Technical Specifications
3. Technical Specifications Power Input ............. AC 120V ~ 50-60Hz, 15A max. Channel Output ............5A/CH., Total 15A max. Channel Fuse ..............F6A 250V 5x20mm DMX In/Out ..........3pin XLR male & female socket MIDI In/Thru ................ 5pin multi socket Dimensions ...............8.3"...
