Stacking and Tilting the C com opti

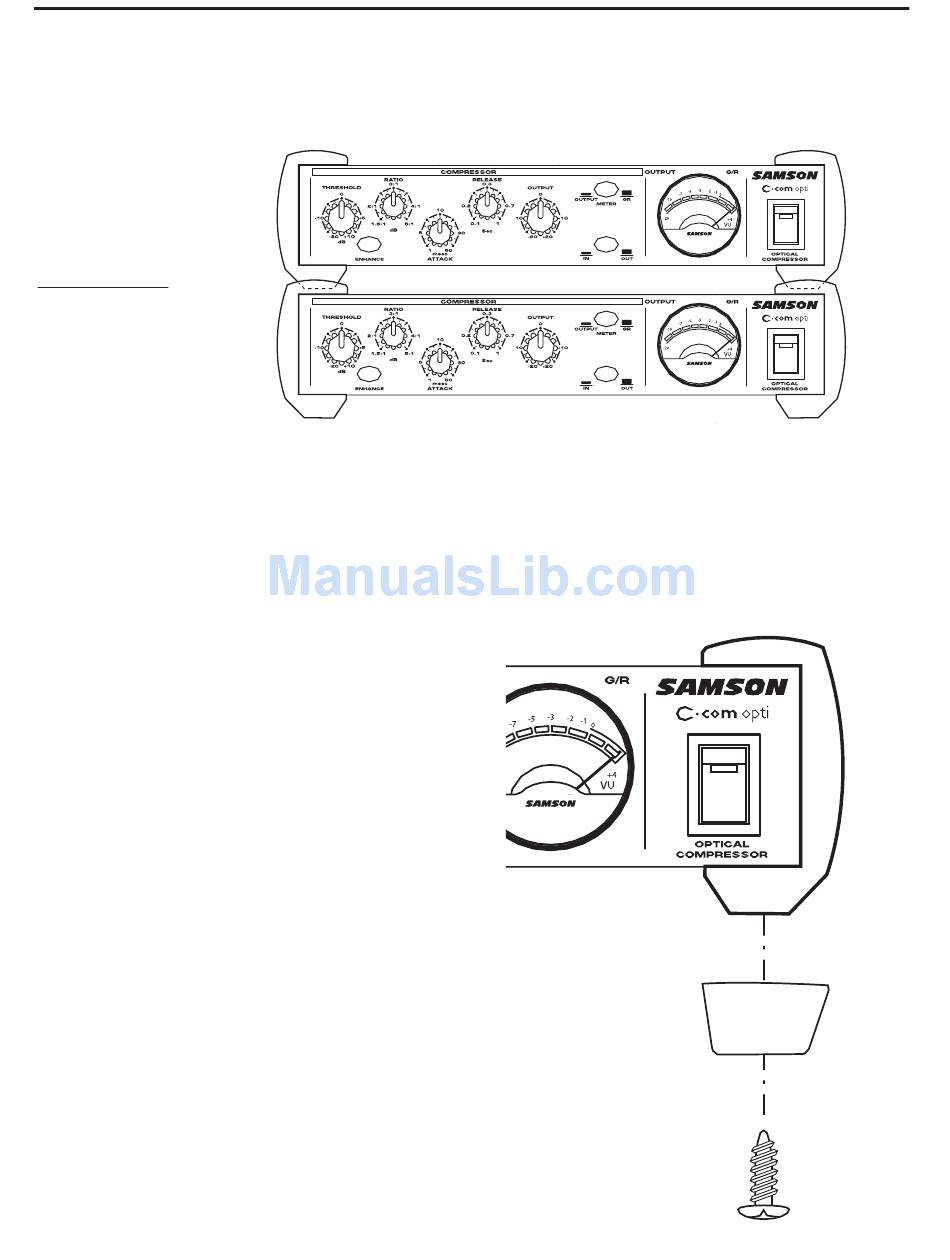

Stacking the C com opti
You can stack one C com
opti, or any other Samson
C Class units, on top of
each other by simply lining
up the bumpers.
Important Note: When
stacking the C com opti,
be sure that only the bot-
tom unit has the tilting feet
installed.
Installing the Tilting Feet
You can install the tilting rubber feet included with
your C com opti so that you can set the unit at a
comfortable operating angle on a workstation or
desktop. Follow the simple instructions below to
install the tilting feet.
• Remove the bottom screw from right front
bumper.
• Identify the right tilting foot by the locating
"R" marking on the inside top.
• Position the angled foot under the right
bumper as shown in the drawing.
• Use the included 4 x 10mm screw to attach
the foot.
• Repeat the steps above for the front left
bumper.
