C com opti System Set-Ups
INSERT POINT COMPRESSION

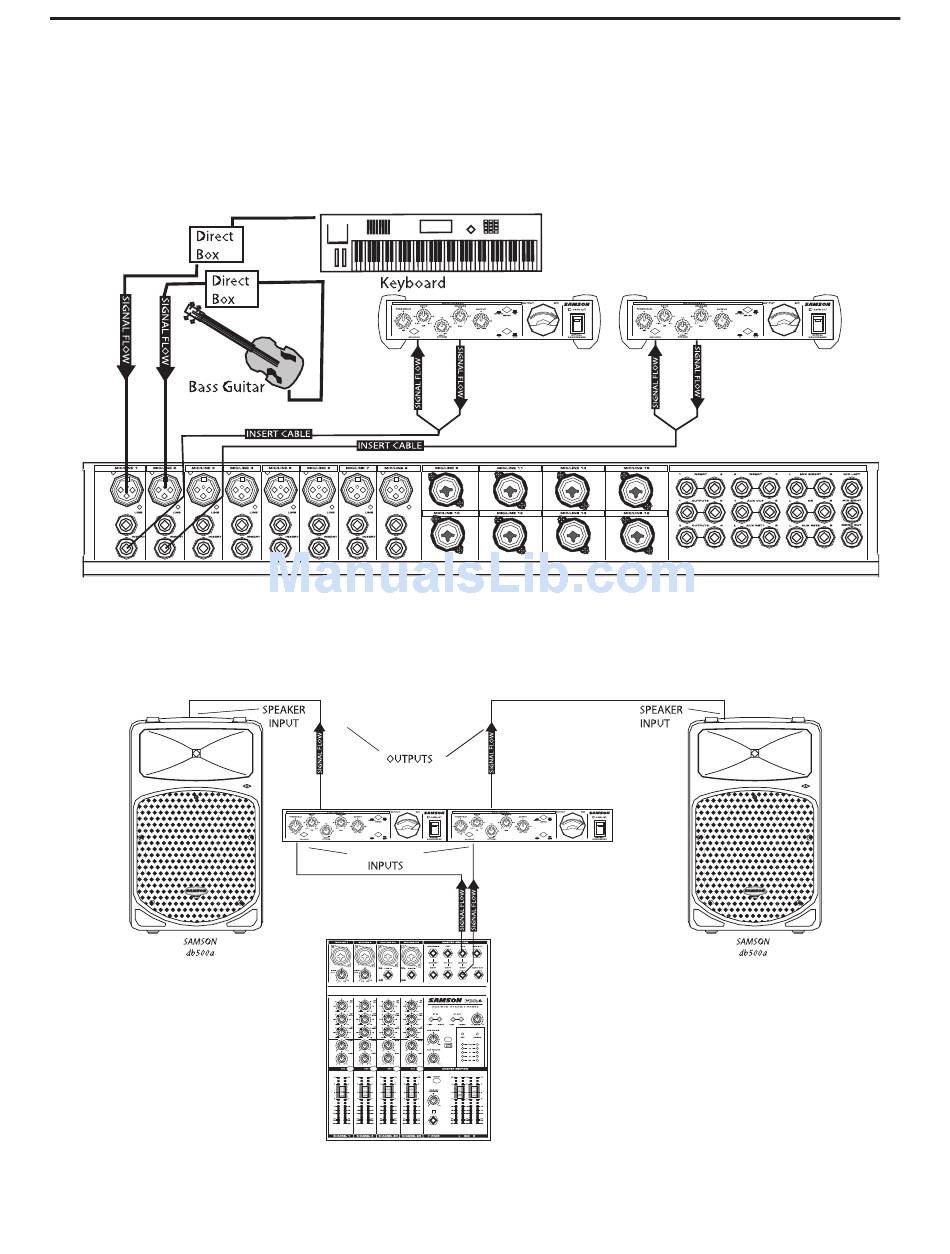

In this example, two C com opti's are used individually to compress the signal of the bass and keyboard tracks. The C com
opti's are connected to the mixer's insert points using a standard 1/4-inch insert "Y" cable. See page 13 for a detailed wiring
diagram.
LIVE SOUND SYSTEM WITH STEREO COMPRESSION
In this example, two C com opti's are connected, "in-line" between the mixer and the powered speakers, thereby compress-
ing the full range signal from the mixer. The STEREO LINK on both units are connected together using a standard 1/4-inch
instrument cable.
