Digital color ccd camera

Advertisement

Quick Links

Digital Color CCD Camera
CCTV SYSTEM
WWW.q-see.com
E.OPERATION PROCEDURES:
(1)Make
sure
the power supply is right.
(2)Screw on a suitable lens on the camera.
(3)Connect the VIDEO output into monitor.Make sure the
power supply is on ,and the image captured by
camera should appear in the monitor.
(4)Modify the Iris and focus to get the best image quality.
(5)Background Focus Modification:
The background focus is usually up before the camera is
sold.But under some special status, background focus
need to be modified. When modifying it ,put lens focus at
∞,capture an image of object 20m far away ,screw off
the fix screw to modify the focal position to get a
clear image on the monitor, and then fix the screw.
(6)Electronic shutter:
Under EE model, the shutter speed will be modified according
to the surrounding illumination.
A.FEATURES:
This camera uses CCD as image captured device,so it is very small
and light, anti-shock. It is your best choice for CCTV system :
(1)High Resolution.
The horizontal resolution is 420TVL.
(2)Auto Electronic shutter(AES).
AES can modify the CCD exposure time automatically. A
stable brightness and excellent exposured image will be
captured no matter the outer light is strong or
weak. ON and OFF are switchable.
(3)Back Light compensation(BLC).
A new developed digital illumination intensity control
function makes use of DPS technology to solve the shadow
problem by modifying iris and gain.
(4)Auto Gain Control(AGC).
(5)Auto Iris Lens VIDEO and DC drive.
B.PRECAUTIONS:
(1)Don`t aim the camera at strong light or put in a place where is rainny
or dusty;
(2)Don`t touch CCD with finger,if necessary,Please clean the dust with
soft cloth dipped with alcohol;
(3)Screw the anti-dust cap on the CCD if the camera are not used for
long time;
(4)Power suppy refers to the specifications;
(5)Please handle carefully to avoid strong shock.
F.SPECIFICATIONS:
Model
QPSCD NV
Image Sensor
1/3"SHARP CCD
Picture Elements
PAL/NTSC:512(H)×492(V)
Horizontal Resolution
420TVL
Sync System
Internal
Scanning system
Interlace2:1
1.0Vp-p 750Ω BNC
Electronic Shutter time
White Balance
On/Off
Gamma
0.45
≥48dB
≥50dB
S/N Ratio
Video Output
PAL /NTSC:1/50S~1/100000S
Usable Illumination
0.5Lux/0Lux
IR LDEs Distance
30m
IR LEDs Amount
28PCS
AGC
On/Off
BLC
On/Off
Auto Iris
Video/DC
Mount Lens
C/CS
Lens
3.5mm~8mm
Power Supply
DC12V
150mA
Power Consumption
Operating
-20℃~+60℃
Weight
480g
*When IR LEDs on
(6)The illumination distance in this manual is indoor night view distance.
The infrared transmission will be affected if there is a big humidity or
smoke in the air .Naturally, the viewable distance will be shortened and
the night view effection will be declined objects are lawn, trees or
objects without reflecting ability.
C.Parts Included:
(1)One Camera(2)One Operation Manual(3)One Anti-dust Cap
(4)One IRIS Connector(E4-191J-100)

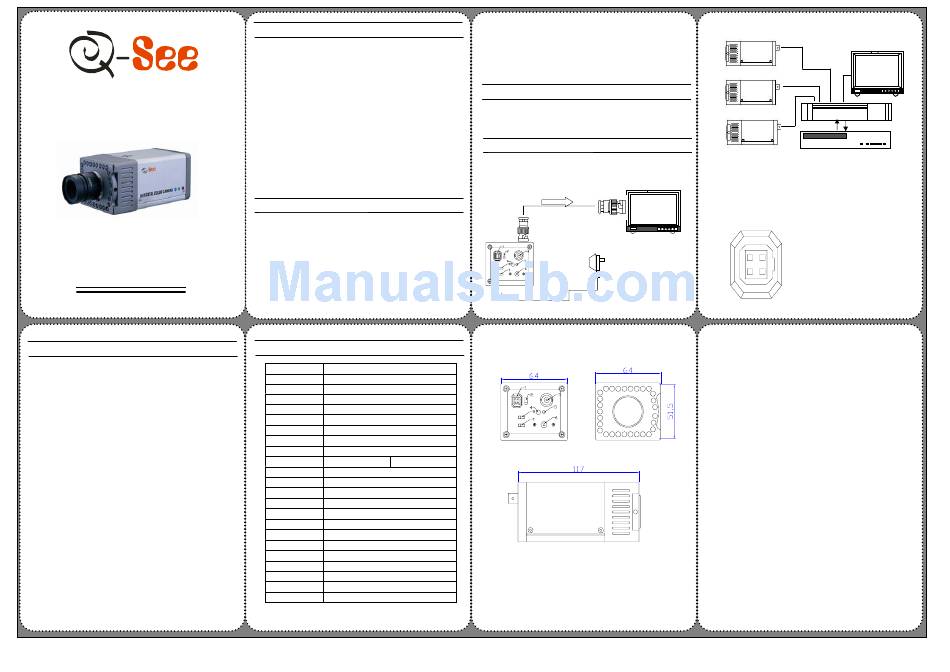

D.System Connection:
(1)One monitor system with one camera:
MONITOR
Video monitor
BNC
BNC
DC 12V adapter
Specification:
(2)One monitor system with two or more cameras:
Video monitor
MULTIPLEXER
VCR
(3)Auto Iris Lens:
(a)IRIS pin definition
(b)Modify level knob to get the best image quality
IRIS pin definitions
4
2
1.DAMP-/POWER
2.DAMP+/NC
3.DRIVE+/VIDEO
4.GND AES
3
1
Design and specifications are subject
to change without prior notice.
Printed on Mar.2008
