Electrolux E30WD75DSS Installation Instructions Manual page 5

To reduce the risk of
personal injury and tip-
ping of the wall oven,
the wall oven must be
secured to the cabinet
(s) by anti-tip brackets.
Refer to page 4 for anti-tip
brackets installation,
208/240 Volt junction box
for built-in oven.
ADDrOX. 3 "
(7.5 cml
Side filler panels are necessary to iso-
late the unit from adjoining cabinets.
36" Min.
91.4 cm) Min.
_.Use 3/4" (1.9 cm) plywood, installed
on two runners, flush with toe plate.
Must be capable of supporting 200
pounds (90 kg).
:ut an opening in wood base minimum 4" x 4"
(10.2 X 10.2 cm), 2" (5 cm) from left side filler
panel, to route armoured cable to junction box.
(12.7 cm) Max.
30" (76.2 cm) 28 i/2 _ (72.4 cm) Min. 24" (61 cm) Min. 28 1/4" (71.8 cm) Min.
Wall Oven 29" (73.7 cm) Max. 28 7/8" (733 cm) Max

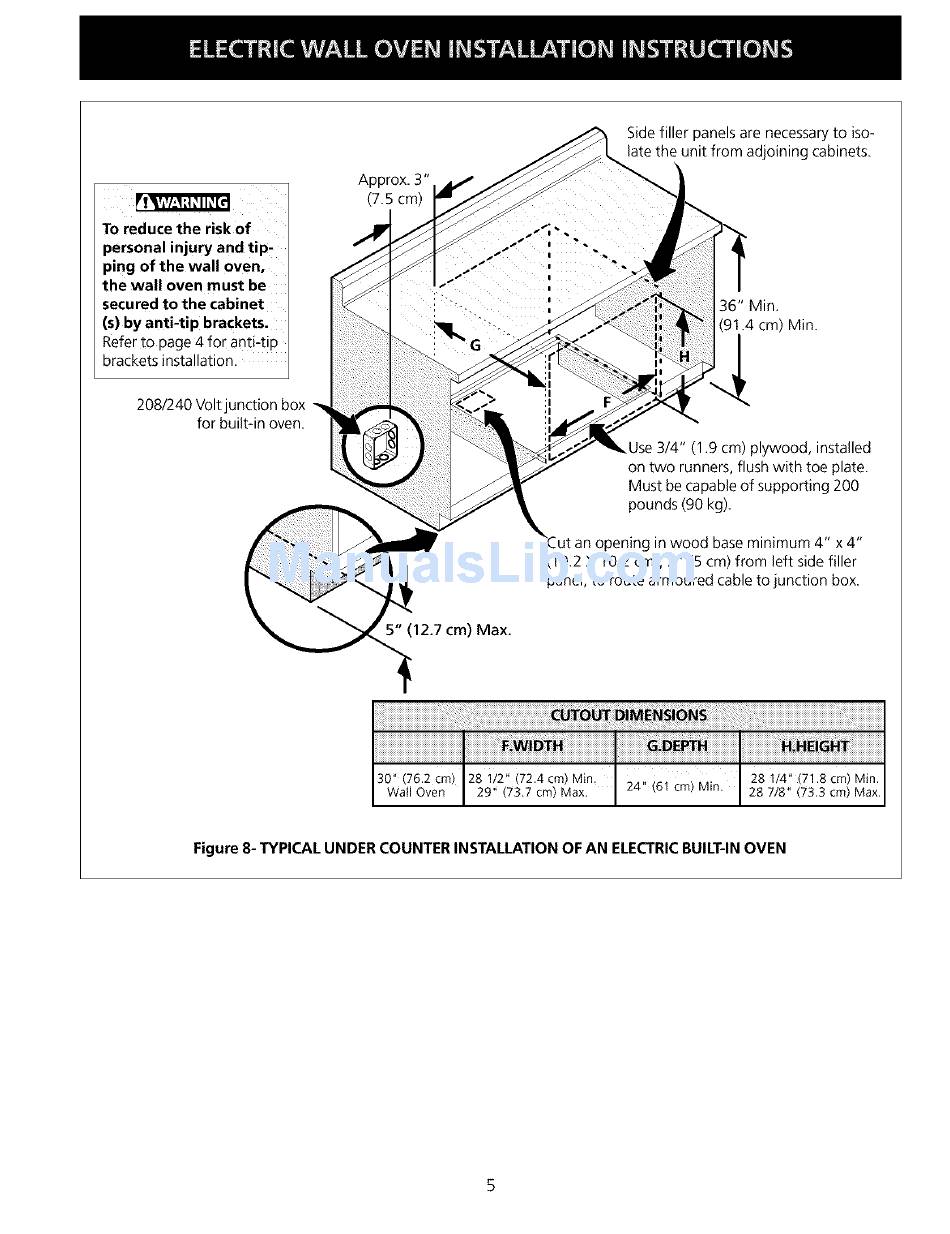

Figure 8- TYPICAL UNDER COUNTER INSTALLATION OF AN ELECTRICBUILT-INOVEN
