Power Acoustik PTID-6250 Owner's Manual

In-dash 6.2” monitor touch screen dvd/cd/mp3/mp4 am/fm radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

PTID-6250
In-Dash 6.2" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
Owner's Manual
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading

Related Manuals for Power Acoustik PTID-6250

Summary of Contents for Power Acoustik PTID-6250

  • Page 1 PTID-6250 In-Dash 6.2” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio Owner’s Manual Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS..................2 CONTENTS ........................ 3 Accessories ........................ 4 INSTALLATION ......................5 WIRING CONNECTIONS ................... 6 Front panel........................8 REMOTE CONTROL ....................9 REMOVE BATTERY....................12 MAIN MENU ......................13 ◆ RADIO PLAYER....................13 ◆ DVD PLAYER ...................... 14 ◆Insert USB/SD/MMC and play track will display as follows: ........

  • Page 4: Accessories

    Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring 1 each Washer, M5 Nut (2) Mounting Strap (3) Bolt (4) Screw 5*20 (5) Screw4*6 ISO Cable Remote Control Warranty card User Manual 1x AV-IN Cable Trim ring 1 Trim ring 2 RCA Cable...

  • Page 5: Installation

    INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    WIRING CONNECTIONS NOTE: Never connect cable to the system while it is connected to the battery power. Whenever the unit is disconnected from the battery, the preset memory will be erased and the unit will go back to its factory defaults. Note: To watch video the parking wire should be connected to break signal.
  • Page 7 Note: Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loudspeakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body (GND). The is using a BTL circuit and each loudspeaker must be connected with insulated cables according the unit diagram.

  • Page 8: Front Panel

    Front panel . EJECT Button Press it to eject a disc. If the disc is not removed for about 10 seconds after eject, the disc is reinserted automatically. 2. IR Sensor IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels. 3.POWER Button Press it to turn on the unit.

  • Page 9: Remote Control

    USB slot, for Multimedia playback files only. Insert a USB into this slot and the unit will automatically start reading and playback the card. * Supported Music File Format: MP3, WMA Files 9. RESET Button Press it with a thin, sharp object. The device will then be reset to factory default settings. 10.
  • Page 10 5: Cursor / / buttons Use the / / buttons to select the menu item. the title, track or to show next frame. 6. EJECT button Press it to eject the disc. 7.STEREO/MONO Press STEREO button to select STEREO or MONO. 8.P.SCN/ RPT In SD CARD/ USB mode, press to repeat REP 1 =>...
  • Page 11 22. A-B/ZOOM button During playback, press it at the starting point of section you want to repeat(A), press this button again at the ending point of the section you want to repeat (B), section A-B repeating starts. Press it again to cancel the A-B repeat function. Press it and hold for two seconds in DVD mode to zoom the image in or out in the sequence of ZOOM 2->...

  • Page 12: Remove Battery

    REMOVE BATTERY Note: The distance may vary according to the brightness of ambient light. If the remote is not used for an extended period of time, remove the battery to prevent possible damage from battery leakage and corrosion. Do not place any objects between the remote control unit and the sensor on the unit.

  • Page 13: Main Menu

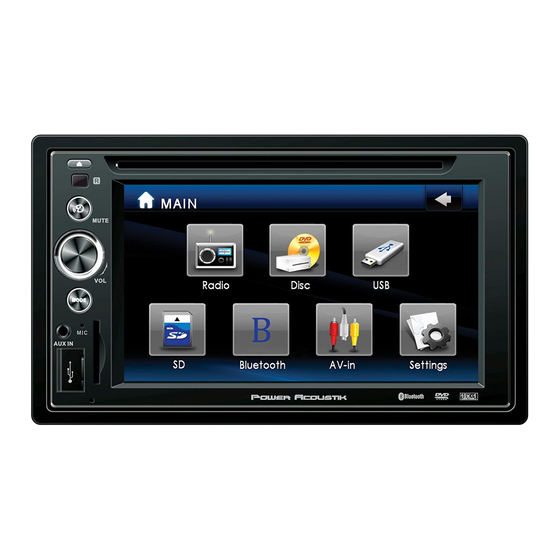

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 14: Dvd Player

    Touch this button to select stereo or mono sound reception. Touch this button to select reception of local station or DX for distance station. ◆ DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU You will not see any buttons while DVD is played.

  • Page 15: Insert Usb/Sd/Mmc And Play Track Will Display As Follows

    In VCD mode touch it can choose PBC ON or OFF. In DVD mode touch it to enter TITLE MENU (Enable only if the DVD disc with title menu). ◆Insert USB/SD/MMC and play track will display as follows: mute the sound volume button.

  • Page 16: Setting Control

    ◆SETTING CONTROL Your device has default system settings. You can customize the settings to suit your personal needs. Once you change settings, your new settings will remain until you change it again. To start SETTING, tap on button from main menu screen. SOUND CONTROL 9 different setting is possible through sound control menu.

  • Page 17: Radio Control

    SCREEN Screen setting 16:9, 4:3，FULL Backlight Backlight setting LOW, MID, HIGH RADIO CONTROL Tap RADIO button from setting menu screen. Set AREA:EUROPE-U.S.A-SOUTH AREA AMERICA-RUSSIA STEREO Set STEREO ON or OFF LOCAL Set LOCAL ON or OFF GENERAL CONTROL Tap GENERAL button from setting menu screen. DUAL Set DUAL ON/OFF Key CURRENT...

  • Page 18: Dvd Set Up Menu

    DVD SET UP MENU Tap the DVD button in main menu to enter the DVD player. Press the SETUP button to enter into the system settings main menu; press the up or down arrow buttons to move to the highlighted menu item and select one of the Setup Pages: [1].

  • Page 19: System Information

    [6] TV SHAPE: Set TFT screen mode to the correct ratio: Three screen ratio modes are available, Normal/PS (4:3 Pan Scan), Normal/LB (4:3 Letterbox) and Wide (16:9). Different disc formats will display different images depending this setting and the screen size used. [7] NTSC/ PAL: Select this menu item to set up your preferred video output format.

  • Page 20: Notes On Disc

    NOTES ON DISC Only use groundless loudspeakers. Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes. Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit. Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car body.

  • Page 21: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 22: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCH THE IGNITION KEY NO POWER TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED.

  • Page 23: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 165*178*100 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
