Summary of Contents for Tivax MiTraveler 10C2
-

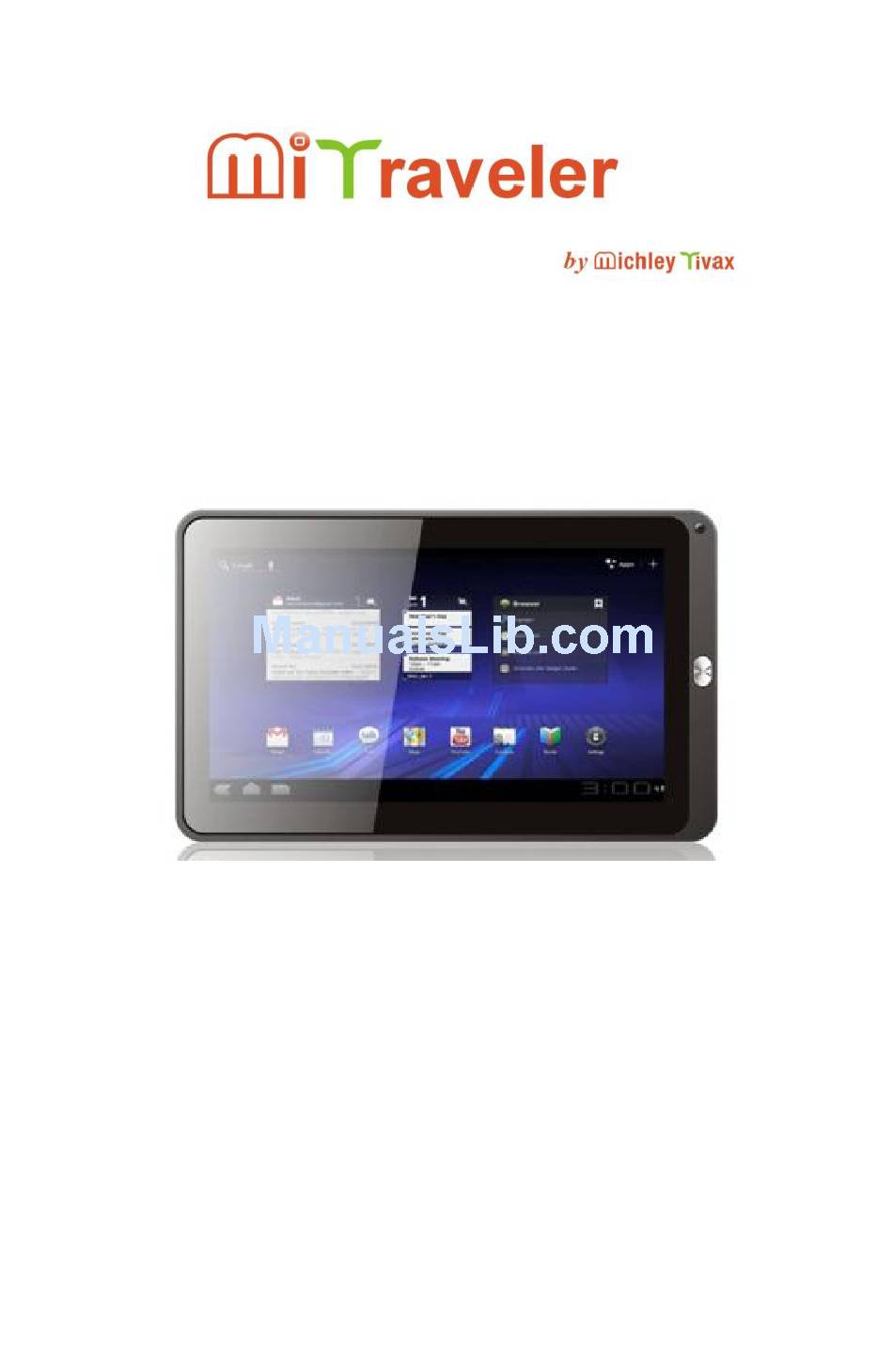

Page 1: User Manual
User Manual 10C2 Product Model: MiTraveler OS: Android 4.0... -
Page 2: Table Of Contents
Tablet of Contents Specifications………………………………………………………………….1 What‟s inside the box…………………………………………………………2 Tablet Parts……………………………………………………………………2 Getting started………………………………………………………………...2 Connection to Internet………………………………………………………..6 Task Bar………………………………………………………………………..8 Install and Uninstall……………………………………………………………9 Camera……………………………………………………………………….10 HDMI………………………………………………………………………….11 Trouble Shooting……………………………………………………………11... -
Page 3: Specifications
Specifications Display: 10.1 inch 1024X600 Resolution Capacitive screen CPU: Boxchip A10 RAM: 1GB DDR Internal Storage: 4GB Expansion Storage: USB & TF card(Micro SD card), 32GB Max. Built-In Wireless: 802.11b/g Adapter AC Adapter: DC 5V-2A Operating System: Android 4.0 Battery: 5000mAh What’s Inside The box Tablet –... -
Page 4: Tablet Parts
Tablet Parts 1. Headset Port 7. Home button 2. HDMI Port 8. Camera 3. DC Jack 9. Power ON/OFF button 4. 5Pin USB Port 10. Volume 5. TF card slot(Micro SD card) 11. Volume 6. USB Port... -
Page 5: Getting Started
Getting Started Battery Charging The tablet has a built-in rechargeable Li-polymer battery. 1. To charge connect the AC power adapter to the DC jack on the right side of the tablet. 2. The LED indicator will illuminate to show the battery is charging. The LED indicator will turn “OFF”... - Page 6 USB Keyboard* The unit support external USB keyboard to input text and number. Some buttons on the unit and some function keys on keyboard may not work if an external USB keyboard was connected. *Note: The external USB keyboard is optional. If you use USB keyboard case, do not to put the USB plug between the screen and the keyboard when you close the case.
-
Page 7: Connection To Internet
Connection to Internet Ethernet: 1. Connect the Ethernet cable to the Ethernet port of the tablet. 2. Select “Settings” and Select “ More…” then Select “Ethernet”... - Page 8 Wireless: 1. Select “ Settings” 2. Select “Wi-Fi” and slide OFF to ON status. 3. All detected wireless networks in the area will be listed, Click to select desired wireless connection. 4. Enter network key (password of the wireless router) if necessary. 5.
-
Page 9: Task Bar
Task Bar The Task Bar will show the following: SD card, Battery, Time, Return/Back, Desktop, Menu and Wireless SD card Battery Time Return/Back Destktop Menu Wifi network How to Use TF card (Micro SD card) Note: The TF card (Micro SD card) is not included in the package. You need the micro SD card only when you need extra storage space or transfer files from other devices. -
Page 10: Install And Uninstall
Removing TF card (Micro SD card) 1. Close all applications and documents which have been opened from the TF card. 2. Select “Setting” and find “ Storage” then click “Unmount SD card”. 3. on the screen, you will see “ SD card safe to remove” Gently press the TF card to remove and pull out the TF card. -
Page 11: Camera
Camera Touch the icon to enter camera mode and the interface is shown as follows: 1.Touch the icon at the bottom right and you can save your photos in DCIM/Camera directory in TF card. 2. Move the icon on the right and you can switch camera mode to film mode. -
Page 12: Hdmi
HDMI You can switch the video to play it on the HDMI display equipment (such as TV with a HDMI interface) by HDMI. 1. Turn on the Tablet; 2. Connect the Tablet to TV by a HDMI cable. Turn on the TV; 3. - Page 13 Tap the application you want to close. A pop-up window will be displayed. Tap “Stop” to close that application. Mandatory Power off 1. Press and hold the power button for 7 seconds and the device will be powered off. 2. Press the reset button on the right and the device will be forced to be powered off.
- Page 14 This warranty shall be void upon transfer of ownership of this product and is effective only when used in the United States. Michley/Tivax agrees to repair or replace this unit at no charge, within the warranty period, providing that the product is delivered to Michley/Tivax in its original package or equivalent, fully insured, with all shipping charges prepaid and a return authorization number listed on the outside of the packaging.
- Page 15 In no event will Michley/Tivax be liable for any special, incidental, or consequential damage, loss of revenue, or cost of replacement goods resulting from the use of malfunction of this product to the equipment system on which it is used.
